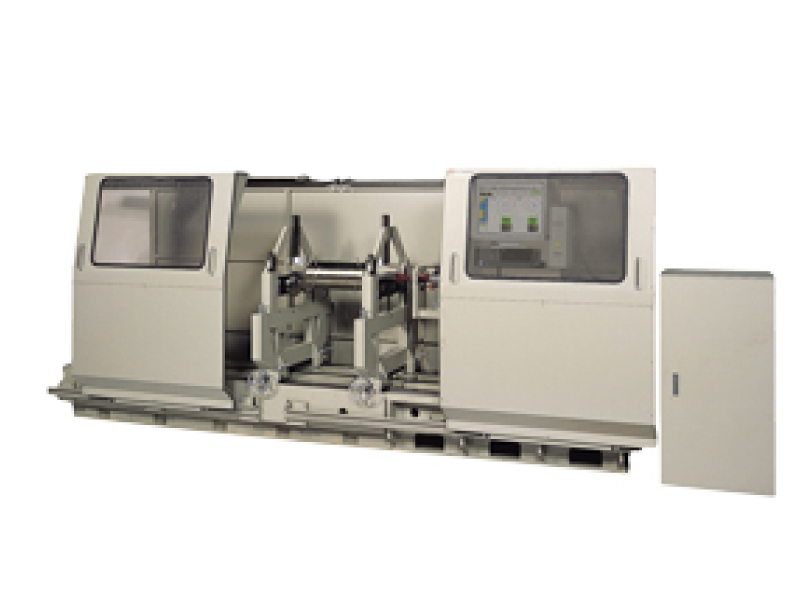

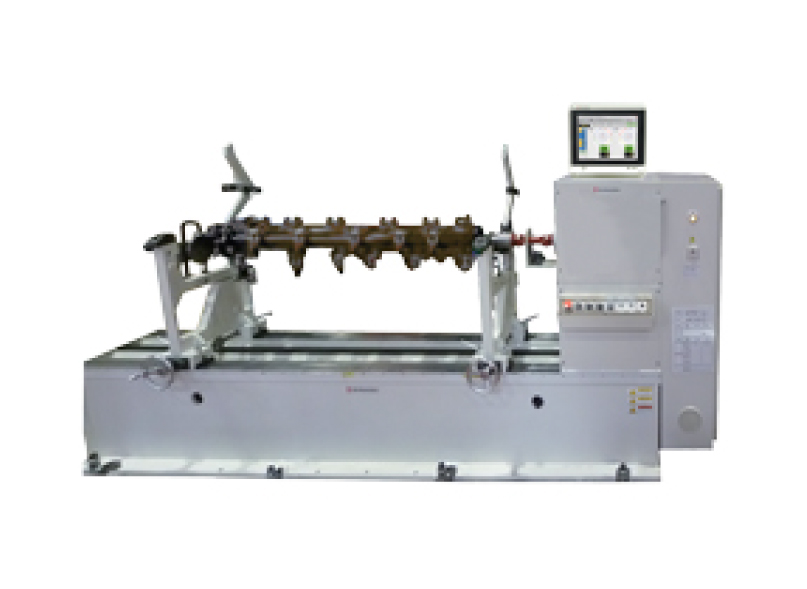

HGJ/HTJ-4NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 3 |
| Max. Weight Under Uniform Load (kg) | 4 |
| Max. Workpiece Diameter (mm) | 500 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 5 to 25 |
| Workpiece Shaft Diameter - Special (mm) (1) | 25 to 40 |
| Installation Method | Table Type |
| Max. Effective Span (mm) (2) | 500 |
| Testing Speed (rpm) | 1200/2400 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 0.2 |
| Type of Universal Joint | UJB-6 |
| Size (WxDxH mm) | 1000x590x940 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGJ/HTJ-10NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 8 |
| Max. Weight Under Uniform Load (kg) | 10 |
| Max. Workpiece Diameter (mm) | 500 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 5 to 25 |
| Workpiece Shaft Diameter - Special (mm) (1) | 25 to 40 |
| Installation Method | Table Type |
| Max. Effective Span (mm) (2) | 500 |
| Testing Speed (rpm) | 800/1600 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 0.2 |
| Type of Universal Joint | UJB-8 |
| Size (WxDxH mm) | 1000x590x940 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGJ/HTJ-30NEII
Specifications
| Workpiece Weight (kg) | 0.3 to 20 |
| Max. Weight Under Uniform Load (kg) | 30 |
| Max. Workpiece Diameter (mm) | 500 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 10 to 40 |
| Workpiece Shaft Diameter - Special (mm) (1) | 40 to 60 |
| Installation Method | Table Type |
| Max. Effective Span (mm) (2) | 500 |
| Testing Speed (rpm) | 800/1600 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 0.4 |
| Type of Universal Joint | UJB-12 |
| Size (WxDxH mm) | 1000x590x940 |
| Weight (kg) | 300 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGJ/HTJ-100NEII
Specifications
| Workpiece Weight (kg) | 1 to 80 |
| Max. Weight Under Uniform Load (kg) | 100 |
| Max. Workpiece Diameter (mm) | 760 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 10 to 80 |
| Workpiece Shaft Diameter - Special (mm) (1) | 80 to 120 |
| Installation Method | Floor-mounted type |
| Max. Effective Span (mm) (2) | 800 |
| Testing Speed (rpm) | 600/1200/1600 |
| Drive motor (w) | 3.7 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 0.6 |
| Type of Universal Joint | TL-58 |
| Size (WxDxH mm) | 1800x500x1500 |
| Weight (kg) | 800 |
| Power Supply | 3-phase 200V 30A 10KVA |
HGJ/HTJ-400NEII
Specifications
| Workpiece Weight (kg) | 4 to 300 |
| Max. Weight Under Uniform Load (kg) | 400 |
| Max. Workpiece Diameter (mm) | 1000 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 20 to 100 |
| Workpiece Shaft Diameter - Special (mm) (1) | 100 to 150 |
| Installation Method | Floor-mounted type |
| Max. Effective Span (mm) (2) | 1000 |
| Testing Speed (rpm) | 300/490/740/1200 |
| Drive motor (w) | 3.7 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 1 |
| Type of Universal Joint | TL-65 |
| Size (WxDxH mm) | 2000x550x1700 |
| Weight (kg) | 1000 |
| Power Supply | 3-phase 200V 30A 10KVA |
HGJ/HTJ-1000NEII
Specifications
| Workpiece Weight (kg) | 10 to 800 |
| Max. Weight Under Uniform Load (kg) | 1000 |
| Max. Workpiece Diameter (mm) | 1300 |
| Workpiece Shaft Diameter - Standard (mm) (1) | 30 to 140 |
| Workpiece Shaft Diameter - Special (mm) (1) | 140 to 200 |
| Installation Method | Floor-mounted type |
| Max. Effective Span (mm) (2) | 1500 |
| Testing Speed (rpm) | 260/410/620/1000 |
| Drive motor (w) | 11 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | 1.5 |
| Type of Universal Joint | TL-90 |
| Size (WxDxH mm) | 2600x700x1750 |
| Weight (kg) | 2500 |
| Power Supply | 3-phase 200V 75A 26KVA |
HGJ/HTJ-3000NEII
Specifications
| Workpiece Weight (kg) | : | 30 to 2500 |
| Max. Weight Under Uniform Load (kg) | : | 3000 |
| Max. Workpiece Diameter (mm) | : | 1600 |
| Workpiece Shaft Diameter - Standard (mm) (1) | : | 30 to 140 |
| Workpiece Shaft Diameter - Special (mm) (1) | : | 140 to 200 |
| Installation Method | : | Floor-mounted type |
| Max. Effective Span (mm) (2) | : | 3000 |
| Testing Speed (rpm) | : | 250/400/625/1000 |
| Drive motor (w) | : | 11 |
| Method of Speed Change | : | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (3) | : | 0.5 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (4) | : | 2 |
| Type of Universal Joint | : | A100T |
| Size (WxDxH mm) | : | 4500x900x1800 |
| Weight (kg) | : | 4000 |
| Power Supply | : | 3-phase 200V 75A 26KVA |
