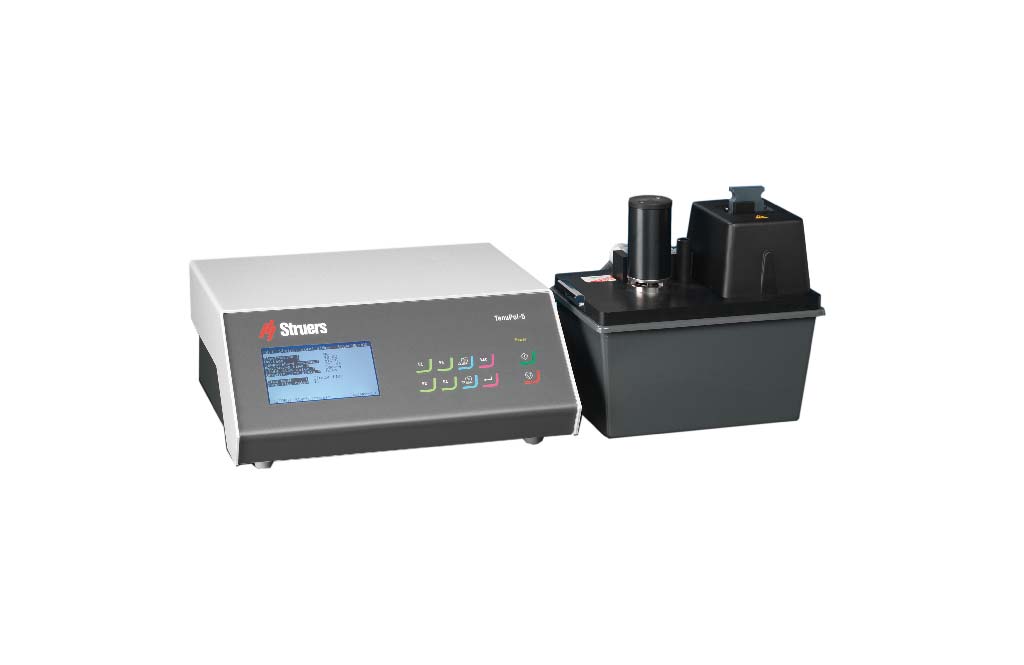

TenuPol-5

c/n : 05396133 (Control Unit)
: 04086001 (Polishing Unit)

Automatic electrolytic thinning of specimens for transmission electron microscopy



Specifications

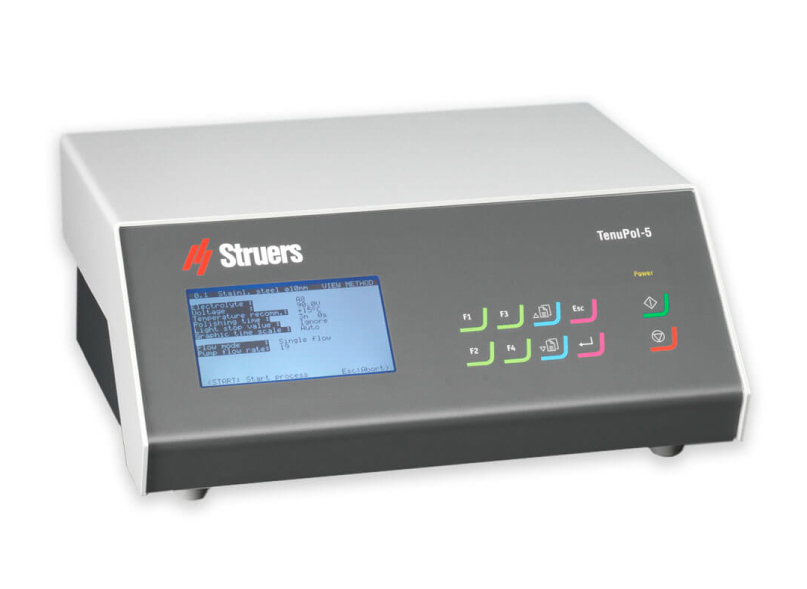

Control Unit Mains Voltage : 1-phase, 100-120/220-240V, 50-60 Hz
Power Consumption : 220-240 V / 1.50 A
: 110-120 V / 3.15 A
Output : 0-100 V / 0-2 A
Width : 385 mm
Depth : 350 mm
Height : 160 mm
Weight : 17 kg

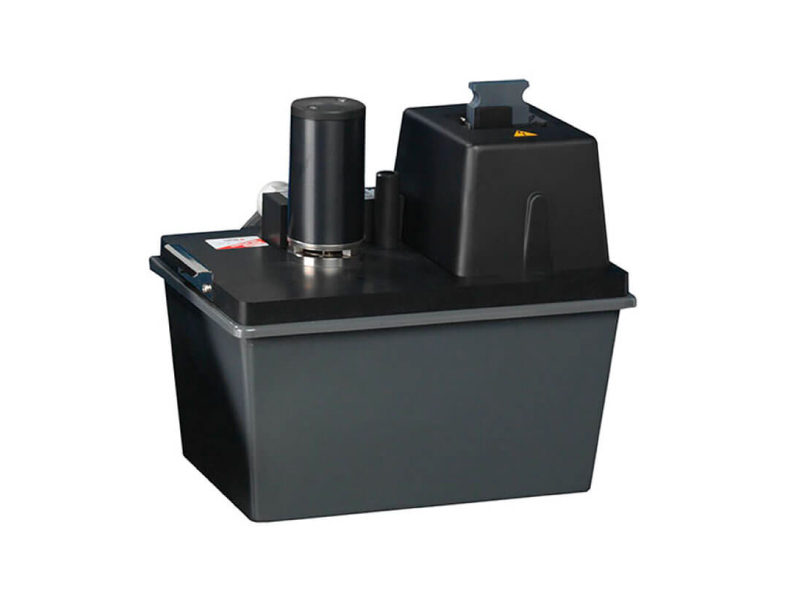

Polishing Unit Size of original specimen
(Based on Specimen Holder)
: 12-21 mm dia. Max 1 mm thick
: 3 mm dia. Max 0.5 mm thick
: 2.3 mm dia. Max 0.5 mm thick
Width : 270 mm
Depth : 180 mm
Height : 276 mm
Weight : 3.8 kg
