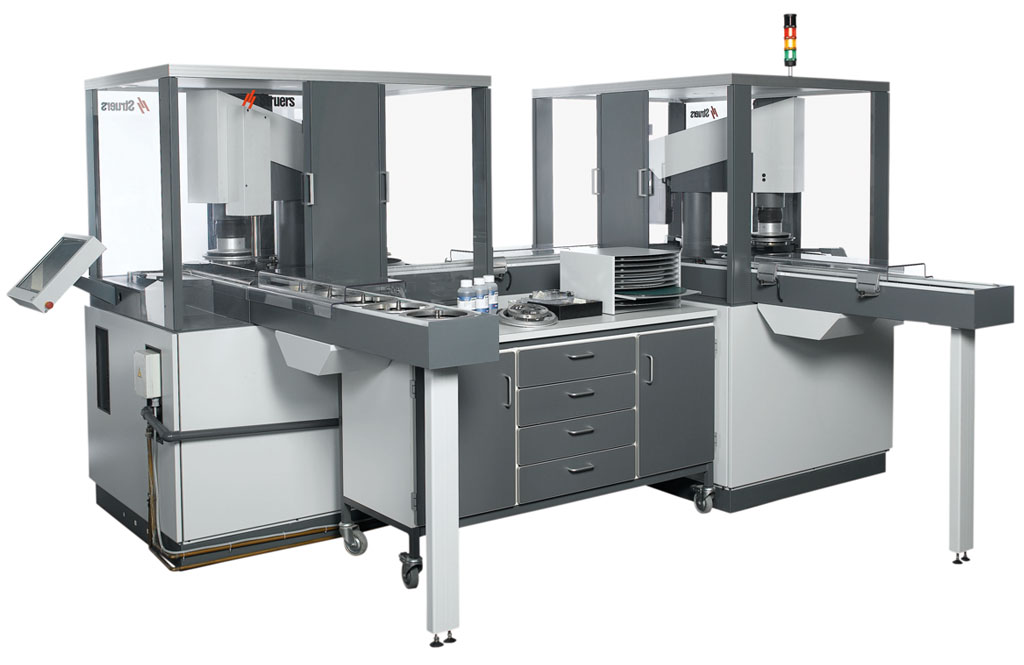

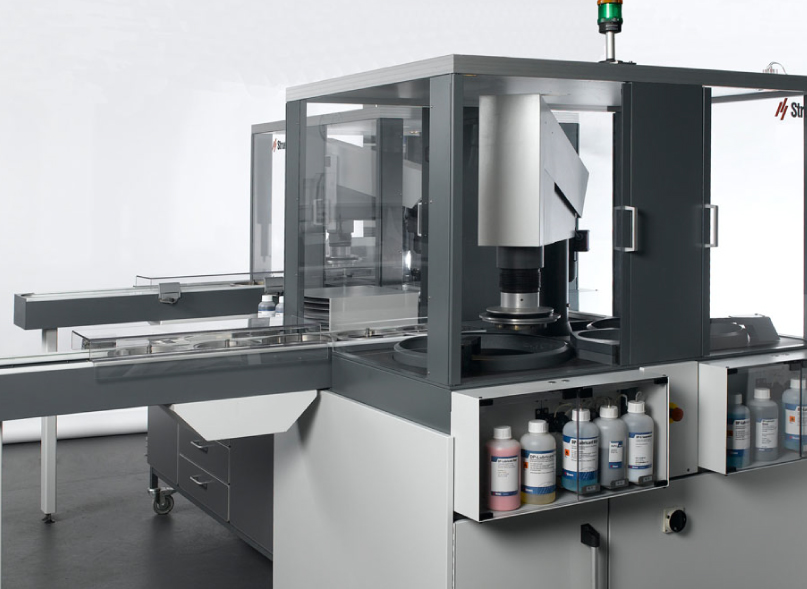

MAPS-2 FULLY-AUTOMATIC
| c/n | : 06101046 |
With 1 plane grinding station and 1 fine grinding/polishing station (150/300 rpm). With recirculation cooling unit (06108046), 1 Bottle Unit, 1 Dosing System with 3 DP-pumps (06107600), Stock removal unit (06103000) and disc cooling. With built-in PC and touch-screen operation.
| c/n | : 06102046 |
With 2 fine grinding/polishing stations (150/300 rpm), 2 Bottle Units and 1 Dosing System with 3 DP-pumps (06107600), 1 Dosing System with 2 DP-pumps and 1 OP-pump (06107610), and disc cooling.
Technical data
| Connections | Power | : Three-phase |
| Compressed-air supply | : 6 bar (90 psi) – consumption approx. 200 l/min | |
| Water supply | : Mains water input, output to normal drain | |
| Main dimensions MAPS-2 Preparation Module | Height | : 1900 mm |
| Width | : 1470 mm | |
| Depth | : 1080 mm | |
| Weight | : 850 kg | |
| Specimen holders | Size | : 160 mm dia. and 200 mm dia. Abra specimen holders with conveyor ring |
| Specimen holder arm | Specimen holder motor | : 150 rpm, 0.37 kW (0.5 HP) |
| Operating force | : 50-700 N in steps of 10 N | |
| Plane grinding work station | Main motor | : 4 kW (5.4 HP) |
| Rotation speed | : 1450 rpm | |
| Grinding stone | : Diameter 356 mm, grinding width 115 mm | |
| Dressing | : Automatic dressing of grinding stone | |
| Recirculation cooling unit | : 60 l/min. Container capacity 65 l | |
| Fine grinding and polishing work station | Main motor | : 550 W (0.7 HP) / 1110 W (1.5 HP) |
| Rotation speed | : 150/300 rpm | |
| Grinding/polishing disc | : Diameter 300-350 mm | |
| Cleaning station | Programmable automatic cleaning | : - Cleaning time |
| : - High-pressure water rinsing | ||
| : - Cleaning with detergent | ||
| : - Cleaning with alcohol | ||
| : - Air-drying | ||
| Conveyor | Capacity | : For 160 and 200 mm dia. Specimen holders with conveyor ring. 6 specimen holders |
| Dosing system | Bottle for DP-Suspension or DiaPro | : 1000 ml |
| Bottle for DP-Lubricant | : 1000 ml | |
| Bottle for OP-Suspension | : 1000 ml |
