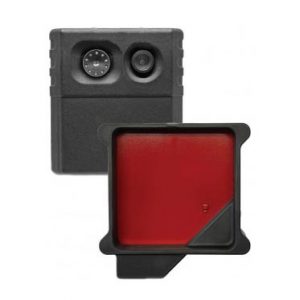

Seek Scan Thermal Imaging System

Seek Thermal Scan - Thermal Imaging System for Elevated Temperature

Non-contact / non-invasive screening

Clear pass/fail visual alerts

Fast evaluation time

Easy set up - ready to go in minutes

Measurement distance is approximately 5 feet

Seek Scan is a simple, low-cost, thermal imaging system designed to automate body temperature screening using skin temperature as a proxy. Unlike traditional screening methods, Seek Scan enables social distancing, self-measurement and finds the most reliable spot on the face for temperature measurement.

The Seek Scan process provides an additional layer of preventive screening and delivers more peace of mind to businesses, institutions and participants.



Set up Seek Scan in minutes using two tripods and a Windows PC. Please note, tripods are not included.

Made in USA with global components.

Camera Specifications Description
Thermal Sensor Resolution 206 (h) x 156 (v)
Visible Light Camera Resolution 640 x 480
Horizontal / Vertical Field of View 35° (h)   /  26° (v)
Lens Focal Length / F-Number 4.0mm  /  f/1.20
Frame Rate <9Hz
Power USB 5V (Plugs into Computer USB-A port)
Dimensions (L x W x H) & Weight 3 x 8 x 9 cm  /  140 g
Tripod Mount 1/4"-20 Standard Camera Tripod Mount
Fixed Heat Source Specifications
Temperature-Controlled Device Emits a constant reference temperature
Power 110V to 220V 50/60Hz (Plugs into Wall Outlet)
Dimensions (L x W x H) & Weight 3 x 9 x 9.5 cm  /  80 g
Tripod Mount 1/4"-20 Standard Camera Tripod Mount
Measurement Specifications
Temperature Accuracy ± 0.3°C (0.5°F) typical between 36°C to 40°C (96°F to 104°F)
@ 1.5 meters (5 feet) Verified in a laboratory setting using a fixed heat source
Sensor Sensitivity 40 mK typical, <50 mK max @ 25°C (Post Signal Processing)
System Specifications
System Requirements Supported Operating Systems: Windows 7 and 10
Operating Temperature Optimal temperature accuracy in conditions below 105°F (40°C) ambient
Scan Measurement Time 1 to 3 seconds typical
Data Output Ask your sales representative for options to integrate Seek Scan data with other systems
