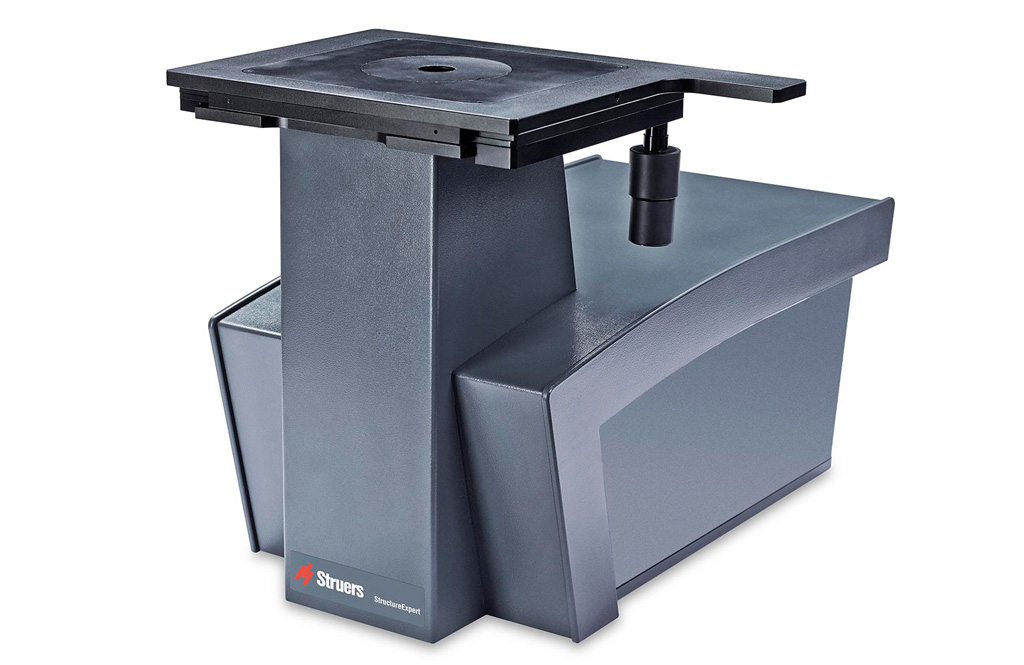

StructureExpert
StructureExpert challenges conventional structure verification technology with time-saving automated functions
Specifications
| Field of View (FOV) | : | 0.294 - 6.24 mm | |
| Measurement resolution | : | 0.11 µm. | |
| Optical magnification | : | Comparable to 25x-500x on regular microscopes | |
| Camera resolution | : | 18 MP CMOS | |
| Camera Model | : | Inverted | |
| XY Stage | : | Capable of supporting at least 3 kg and a Ø160 mm dia. Struers specimen holder | |
| Optical Zoom | : | Auto-Focus & Auto-Callibration | |
| Illumination | : | Auto-Illumination | |
| Structure Verification | : | 30 Second | |
| Module | : | StructureExpert Grain | |
| StructureExpert Cast Iron | |||
| StructureExpert Coating | |||
| StructureExpert Decarb | |||
| StructureExpert Phase | |||
| StructureExpert Measure | |||
| Report For StructureExpert | |||
| Approximate dimensions | : | Height 300 x Width 200 x Depth 500 mm | |
| Conforms to standards | : | Grain sizing: ASTM E1382, ASTM E112, ASTM E930, EN ISO 643 | |

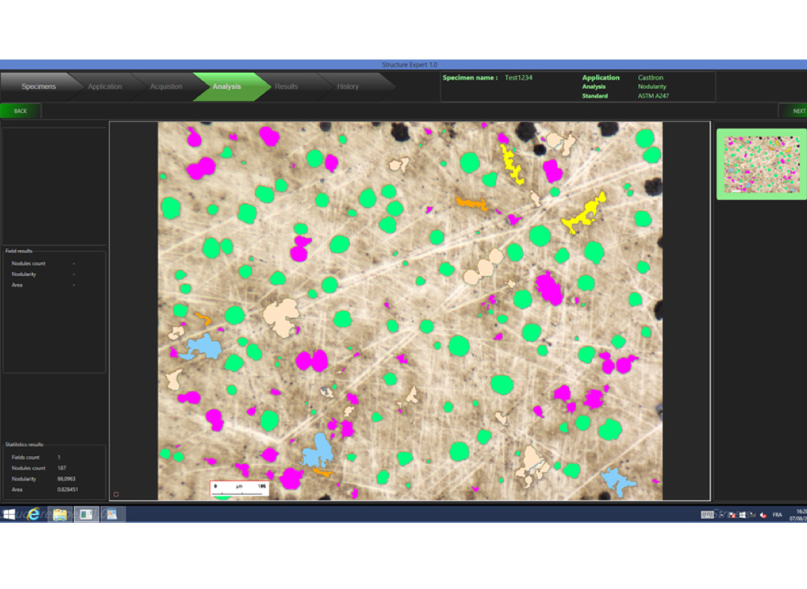

| Cast iron analysis: ASTM A247, EN ISO 945 | |||
| Coating thickness: ASTM B487, EN ISO 1463 | |||
| Decarburisation depth: ASTM E1077, EN ISO 3887 | |||
| Phase analysis: ASTM E562 | |||
| Certification | : | UKAS Certificate | |
| Power supply | : | 1 x 110-220 V / 50-60 Hz |
