AbraPlan-30
| c/n | : 06296129 |

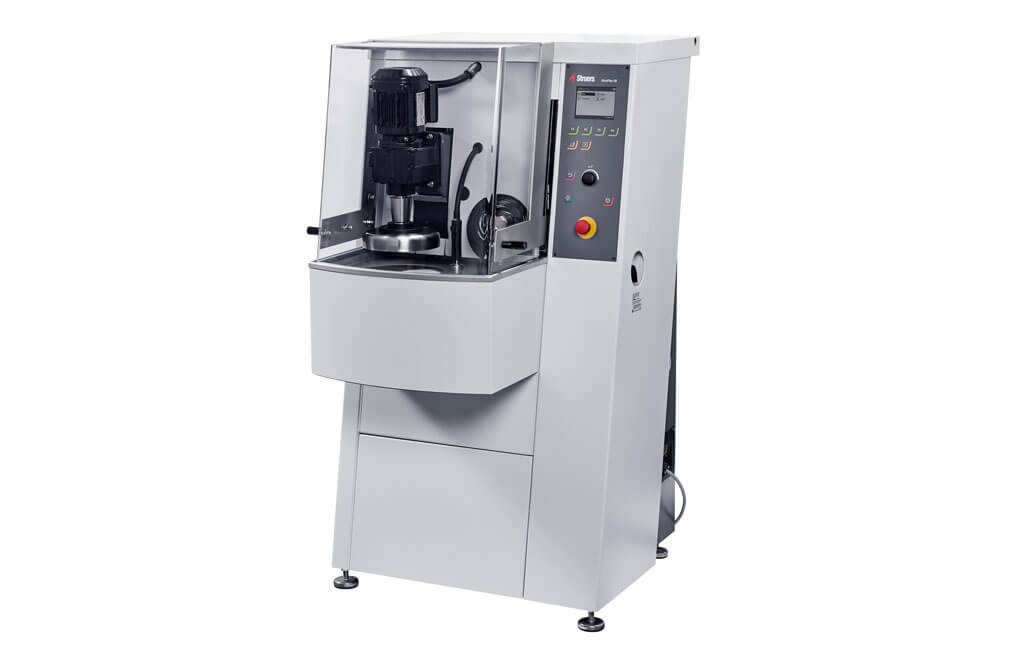

Advanced plane grinding semi-automatic machine for grinding of specimens in specimen holders up to 200 mm/8” dia. An automatic diamond dresser with automatic surface detection, a removal rate sensor and a transparent safety cover included. Recirculation cooling tank, pump and filter, grinding stones and specimen holders are ordered separately
Technical data
| Stone | Diameter | : 356 mm / 16" |
| Speed | : 1450 rpm | |
| Motor power, continuous (S1) | : 4.0 kW | |
| Specimen holder | Speed | : 150 rpm |
| Force | : 50 - 700 N | |
| Max. size | : 200 mm / 8" | |
| Dresser | Dresser modes | : Time, Removal |
| Process mode | Time | : 5 sec. - 10 min |
| Removal | : 0.05 - 10 mm | |
| Removal/Time | : 0.05 - 10 mm, 5 sec. - 10 min | |
| Safety | : Please refer to the Declaration of Conformity | |
| Noise level | At idle running, at a distance of 1.0 m / 39.4" from the machine | : 52 dB (A) |
| Surrounding temperature | : 5 - 40 °C / 41 - 104 °F | |
| Humidity | : Non condensing 0 - 95 % RH | |
| Supply | Voltage / frequency | : 3x200-240 50/60Hz, 3x380-480 50/60Hz |
| Power inlet | : 3 phase (3L + PE) | |
| Power, nominal load | : 4,5 kW | |
| Compressed air inlet diameter | :6 mm (¼") | |
| Compressed air pressure | : 6 - 9,9 bar (87-145 psi) | |
| Compressed air flow | : 30 l/min (6.6 gpm) | |
| Compressed air quality | : ISO 8573-1, class 3 | |
| Software and electronics | Controls | : Touch pad and turn/push knob |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC Display | : TFT-colour 320x240 dots with LED back light | |
| Recirculation unit | Optional | |
| Pump for recirculation | Optional | |
| Flow sensor for cooling water | Included | |
| Drain | Diameter | : 50 mm / 2" |
| Exhaust | Diameter | : 50 mm (2") |
| Recommended capacity for exhaust system | : 1000 l/m (265 gpm) |
Physical Specification
| Dimensions and weight | Width | : 84 cm (33") |
| Depth | : 98 cm (39") | |
| Height closed | : 156 cm (62") | |
| Height open | : 187 cm (74") | |
| Weight | : 400 kg (882 lbs) | |
| Beacon | Optional | : Sound, Red/Yellow/ Green light |
