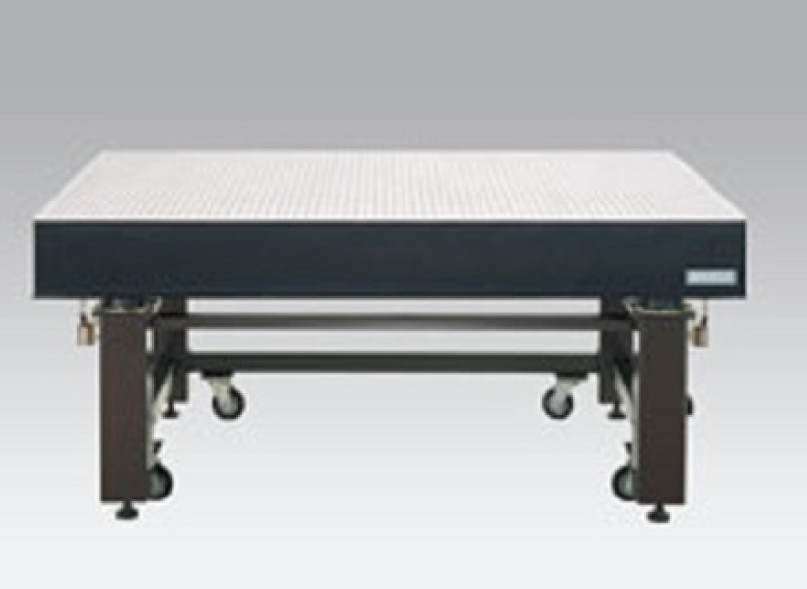

AY-AYN Series
Produk / Meiritz Anti Vibration System / AY-AYN Series / AY-AYN Series
1007K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1000×750 |
| Table thickness(mm) | 100 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 150 |
| Air supply | 0.35～0.70MPa |
1209K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1200×900 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 215 |
| Air supply | 0.35～0.70MPa |
1510K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1500×1000 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 265 |
| Air supply | 0.35～0.70MPa |
1512K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1500×1200 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 310 |
| Air supply | 0.35～0.70MPa |
1809K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1800×900 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 285 |
| Air supply | 0.35～0.70MPa |
1812K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 1800×1200 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 350 |
| Air supply | 0.35～0.70MPa |
2010K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2000×1000 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 325 |
| Air supply | 0.35～0.70MPa |
2012K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2000×1200 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 375 |
| Air supply | 0.35～0.70MPa |
2015K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2000×1500 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 475 |
| Air supply | 0.35～0.70MPa |
2210K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2200×1000 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 355 |
| Air supply | 0.35～0.70MPa |
2212K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2200×1200 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 410 |
| Air supply | 0.35～0.70MPa |
2215K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2200×1500 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 510 |
| Air supply | 0.35～0.70MPa |
2412K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2400×1200 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 440 |
| Air supply | 0.35～0.70MPa |
2415K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 2400×1500 |
| Table thickness(mm) | 200 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 550 |
| Air supply | 0.35～0.70MPa |
3012K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 3000x1200 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 660 |
| Air supply | 0.35～0.70MPa |
3015K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 3000×1500 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 810 |
| Air supply | 0.35～0.70MPa |
3612K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 3600x1200 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 760 |
| Air supply | 0.35～0.70MPa |
3615K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 3600x1500 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 940 |
| Air supply | 0.35～0.70MPa |
4012K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 4000x1200 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 825 |
| Air supply | 0.35～0.70MPa |
4015K4
| Natural frequency | Vertical: 1.5Hz |
| Horizontal: 1.8Hz | |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping using orifices |
| Leveling method | AY:Automatic levelers keep the surface table level automatically |
| AYN:Manual operated with attached hand pump | |
| Load weight(kg) | 300 |
| Table dimensions(mm) | 4000x1500 |
| Table thickness(mm) | 300 |
| Table materials | Steel Honeycomb: Top plate SUS430 5t(4t), Bottom plate SS400 4.5t |
| Machine height(mm) | 800 |
| Machine weight(kg) | 1020 |
| Air supply | 0.35～0.70MPa |
