TargetSystem

c/n : 05756128

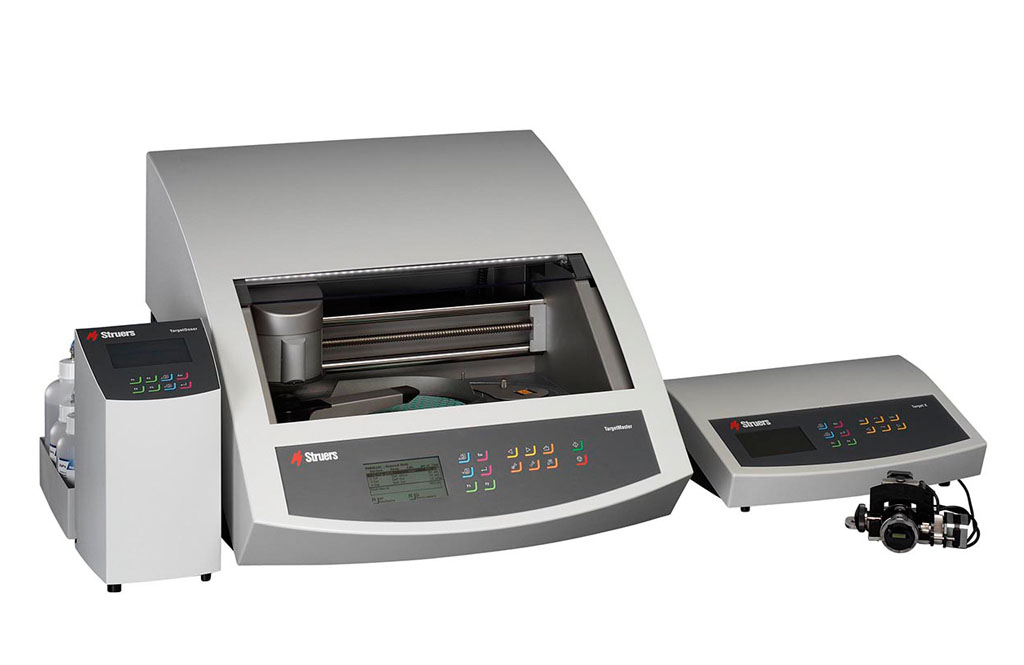

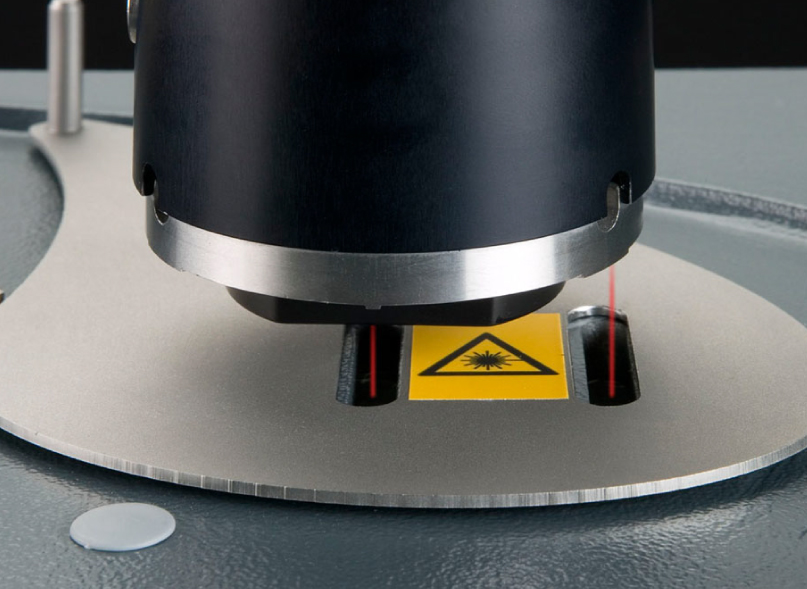

200 mm (8") micropolisher for automatic target preparation. Specimen holder for 30 mm dia. specimens (05756916) and 200 mm (8") MD-Disc (02426920) included. Dosing system (05756904) is ordered separately



Technical data

TargetSystem System accuracy  : ± 5 μm at 20°C / 68°F ± 2°C / 4°F.
TargetMaster micropolisher
TargetMaster micropolisher Diameter : 200 mm / 8"
Speed, turntable : 40 - 300 rpm in steps of 10 rpm
Speed, specimen holder : 20 - 150 rpm in steps of 10 rpm
Force : 10 - 75 N in steps of 5 N
Rotational direction : CW / CCW
Motor power : 250 W / 0.33 HP
Software and electronics Controls : Touch pads
Memory : FLASH-ROM / RAM / NV-RAM
LC display : 240 x 128 dots with back light
Noise levels During preparation : 54 dB (A)
During cleaning : 72 dB (A)
Working environment Temperature : 5-40°C / 41-104°F.
Humidity : 35-50% RH
Supply Voltage / frequency : 200-240 V / 50-60 Hz
Power inlet : 1-phase (N+L1+PE) or 2-phase (L1+L2+PE)
The electrical installation must comply with “Installation Category II”.
Power, nominal load : 700 W
Power, idle : 16 W
Current, nom. : 3.5 A
Current, max. : 6.9 A
Pressure for tap water : 1-10 bar / 14.5-145 psi
Water inlet : 1/2" or 3/4"
Water outlet : 32 mm / 1 1/4" dia.
Compressed air supply : 6 mm / 1/4" dia.
Compressed air pressure : 6-10 bar / 87-145 psi
Compressed air quality : In compliance with ISO 8573-1, 5.6.4
Air extraction : 32 mm / 1 1/4" dia.
Air extraction, min. airflow : 30 m³ / 1059 ft³ per hour
Dimensions and weight Width : 820 mm / 32.3"
Depth :  860 mm / 33.9"
Height : 595 mm / 23.4"
Weight : 115 kg / 253.5 lbs
TargetGrip tiltable specimen holder
TargetGrip tiltable specimen holder Specimen sizes  : 40 mm dia. (05756901) or 30 mm dia. (05756916)
Cross-sectioning : 40 mm dia. Sample chair, adapter for crosssectioning (05756908), max sample size 29 x 20.5 mm
: 30 mm dia. Sample chair, adapter for crosssectioning (05756914), max sample size 23 x 20.5 mm
Parallel polishing : Parallel Holder 40 mm dia, adapter for parallel polishing (05756910), max sample size 19 x 18 mm
: Parallel Holder 30 mm dia, adapter for parallel polishing (05756920), max sample size 15 x 9 mm
Tilt range : ± 5 degrees
Specimen holder dia. : 58 mm
Weight : 0.58 kg / 1.27 lb
TargetDoser automatic dosing station
TargetDoser automatic dosing station Capacity : 4 pumps for suspension/lubricant,
: 1 pump for OP-suspension,
: 1 pump for soap,
: 1 pump for alcohol
Dosing Levels Suspensions : 0.2-4.0 ml in 20 steps
All-in-one suspensions : 0.2-12.0 ml in 20 steps
Lubricants  : 0.2-12.0 ml in 20 steps
OP-Suspensions : 20.0-90.0 ml in 20 steps
Software and electronics Controls : Touch pads
Memory : FLASH-ROM / RAM / NV-RAM
LC display : 240x128 dots with back light
Working environment Temperature : 5-40°C / 41-104°F.
Humidity : 35-50% RH
Supply Voltage : 24 V DC, 1 A supplied from TargetMaster
Dimensions and weight Width : 200 mm / 8”
Depth excl. bottle tray : 210 mm / 8.3”
Depth incl. bottle tray : 550 mm / 21.7”
Height : 380 mm / 15”
Weight excl. bottle tray : 8.5 kg / 18.7 lbs
Weight incl. bottle tray : 10.0 kg / 22.0 lbs
TargetX set-up station for hidden (internal) targets
Software and electronics Controls : Touch pads
Memory : FLASH-ROM / RAM / NV-RAM
Working environment Temperature : 5-40°C / 41-104°F.
Humidity : 35-50% RH
Supply Voltage / frequency : 200-240V / 50-60 Hz
: Power inlet 1-phase (N+L1+PE) or 2-phase (L1+L2+PE)
The electrical installation must comply with “Installation Category II”.
Power, nominal load : 50 W
Power, idle : 10 W
Current, nom. : 0.25 A
Current, max. : 1.0 A
Dimensions and weight Width : 705 mm / 27.7”
Depth : 385 mm / 15.1”
Height : 285 mm / 11.2”
Weight : 13 kg / 28.6 lbs
