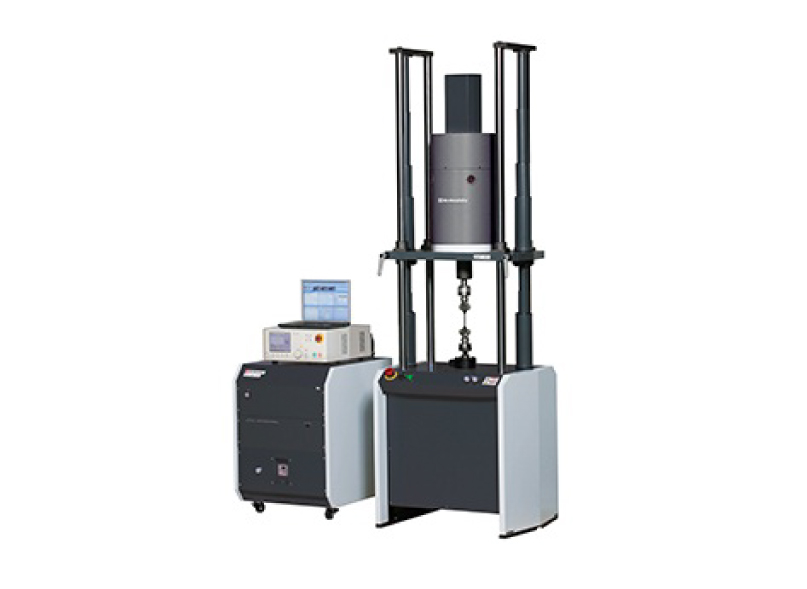

EMT-1kNV-30

Specifications

Max. test force : ±1 kN (dynamic/static)
Stroke : ±30mm
Cycle speed and amplitude : See amplitude characteristics (shown below)
Max. speed : 1m/s
Max. frequency : 200Hz
Controller : Servo Controller 4830
Controlled items : Test force, piston stroke
Force Range Static indication accuracy : Rangeless: Within ±0.5% of indicated value or within ±0.02% of max. dynamic force
Stroke Range Static indication accuracy : Rangeless: Within ±1% of indicated value or within ±0.1% of rated value
Frame up/down system : Electric motor
Test space : Distance between columns: 460 mm, Distance between installed jigs: 0 mm to 700 mm
Weight : Main unit: 510 kg, Power amplifier: 60 kg, Controller: 8 kg
Operating noise : 62 dB (measured 1 m from front of main unit and 1 m from floor)
Power supply requirement : 50/60 Hz, 3-phase 200 V, 4 kVA
Power consumption at max. load : 4 kW

EMT-1kNV-50

Specifications

Max. test force : ±1 kN (dynamic/static)
Stroke : ±50mm
Cycle speed and amplitude : See amplitude characteristics (shown below)
Max. speed : 2m/s
Max. frequency : 200Hz
Controller : Servo Controller 4830
Controlled items : Test force, piston stroke
Force Range Static indication accuracy : Rangeless: Within ±0.5% of indicated value or within ±0.02% of max. dynamic force
Stroke Range Static indication accuracy : Rangeless: Within ±1% of indicated value or within ±0.1% of rated value
Frame up/down system : Electric motor
Test space : Distance between columns: 460 mm, Distance between installed jigs: 0 mm to 700 mm
Weight : Main unit: 510 kg, Power amplifier: 60 kg, Controller: 8 kg
Operating noise : 62 dB (measured 1 m from front of main unit and 1 m from floor)
Power supply requirement : 50/60 Hz, 3-phase 200 V, 5 kVA
Power consumption at max. load : 5 kW
