MoviPol
Produk / Struers Metallography / Non Destructive Test / MoviPol
MoviPol-5
| c/n | : 05966104 |

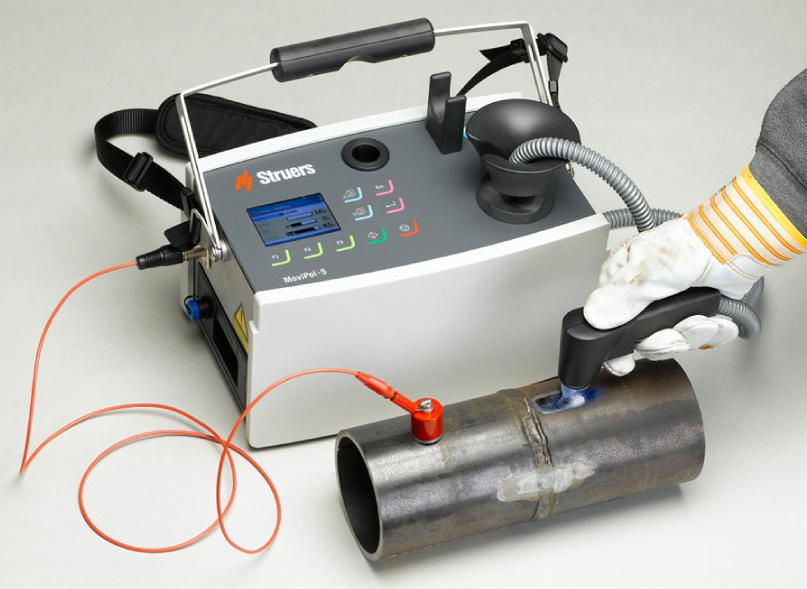

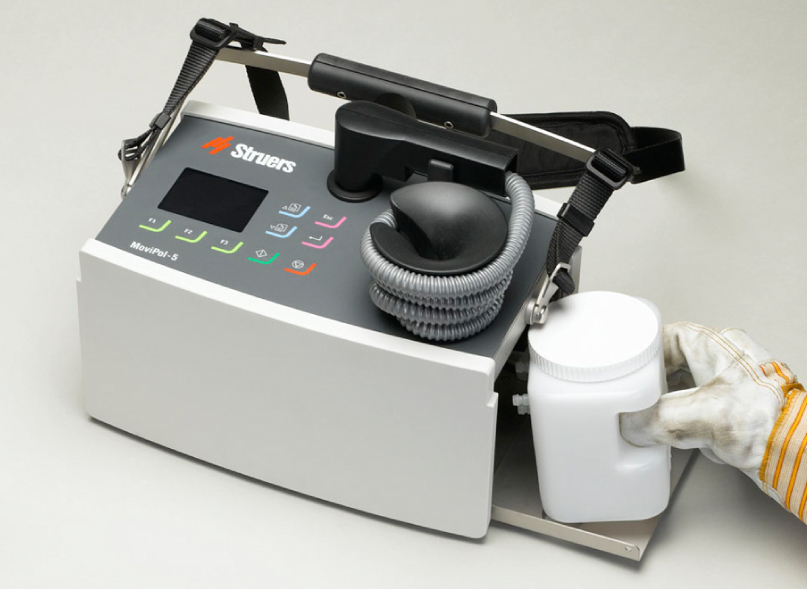

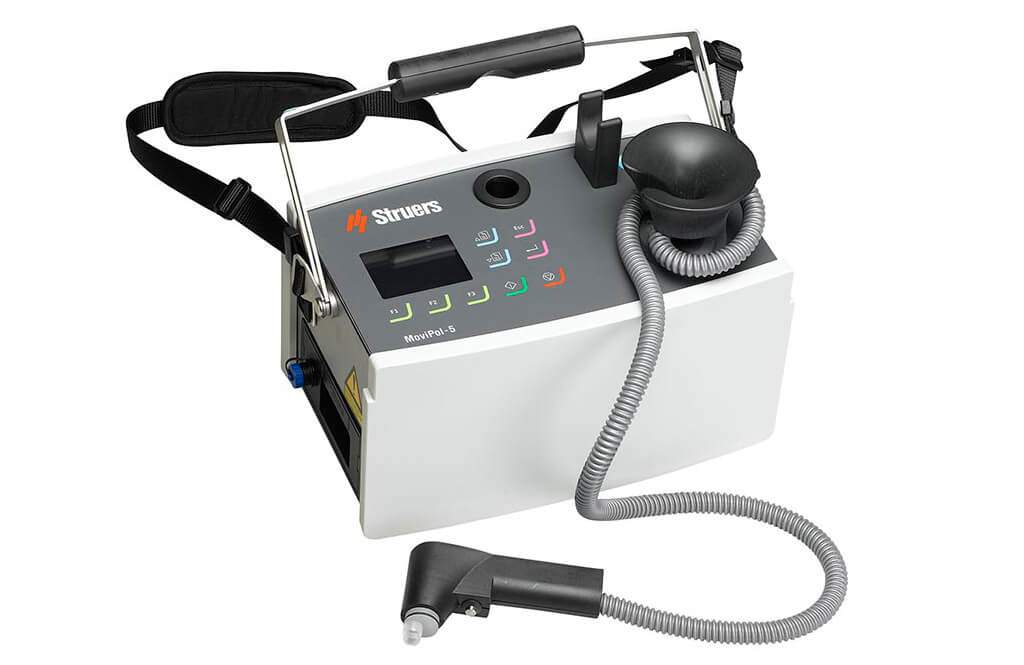

Portable electrolytic polishing and etching machine.
Specifications
| Voltage Supply to transformer | : 100-240 V / 50-60 Hz | |
| Voltage Supply from transformer | : 30 V DC | |
| Features | : Thermal overload protection | |
| Polishing Power | : Max 180 W | |
| Polishing Area | : About 9 mm dia | |
| Dimensions and Weight | Width | : 340 mm / 13.4" |
| Height | : 256 mm / 10" | |
| Depth | : 213 mm / 8.4" | |
| Weight, including battery pack and electrolyte cartridge | : 8.5 kg / 18.7 lbs | |
| Weight, Battery Pack | : 0.98 kg / 2 lbs | |
| Volume, Electrolyte | : 0.75 l / 1.3 lbs |
