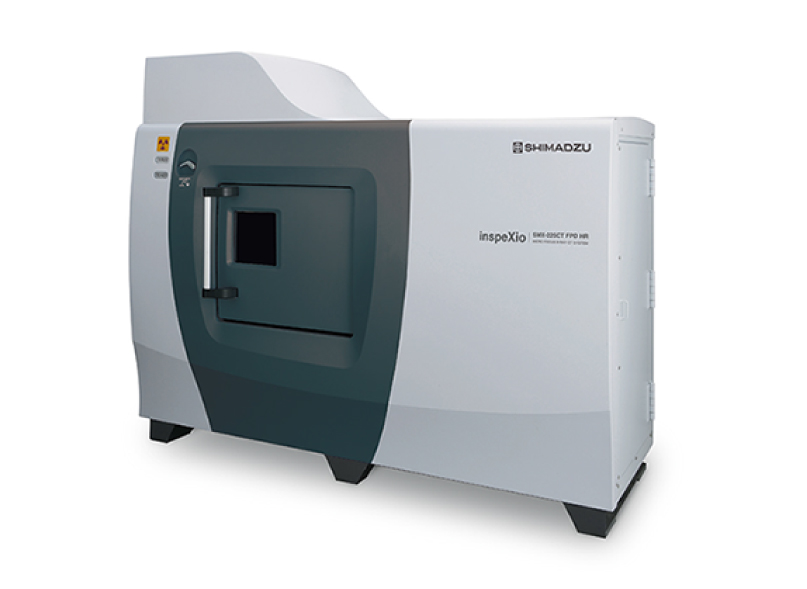

inspeXio SMX-225CT FPD HR
Specifications
| X-Ray Generator | Rated Power | : | 135 W | |||||
| Max. Tube Voltage | : | 225 kV | ||||||
| Max. Tube Current | : | 1000 μA | ||||||
| X-Ray Detector | : | Flat panel detector | ||||||
| X-Ray Detector Size | : | 16 inch | ||||||
| X-Ray Detector Shades of Gray | : | 16-bit = 65,536 shades of gray | ||||||
| Max. Input Resolution (for offset scan) | : | Approx. 14,000,000 pixels | ||||||

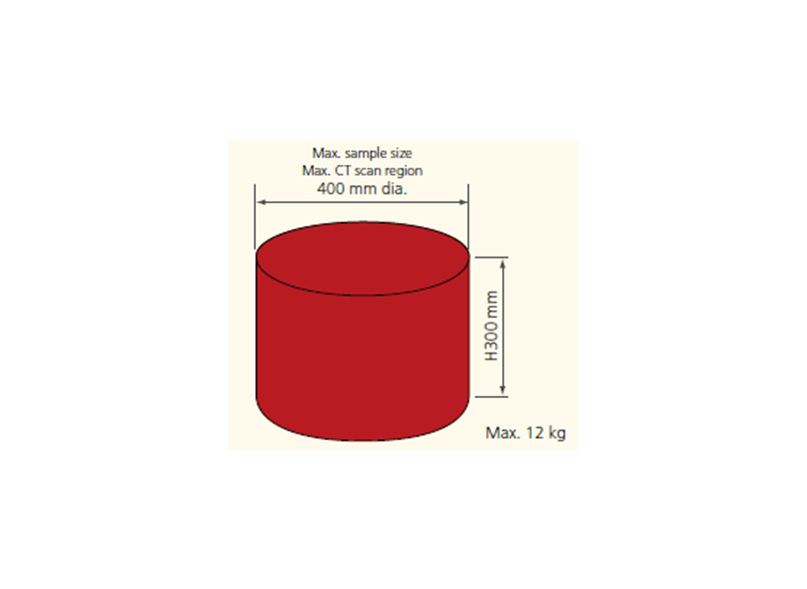

| Max. Sample Size and Weight, and Max. CT-Scan Region | : |
|
||||||
| Max. CT Image Size | Two-Dimensional CT | : | 4,096 × 4,096 | |||||
| Cone-Beam CT | : | 4,096 × 4,096 | ||||||
| High-Performance Computing System |
Version | : | HPC inspeXio ver. 2 | |||||
| For 512 × 512 pixel CT images | : | 5 to 10 sec after completing data acquisition | ||||||
| For 1,024 × 1,024 pixel CT images | : | 5 to 10 sec after completing data acquisition | ||||||
| Scan Support Functions |
Positioning via an exterior camera | : | Yes | |||||
| 3D CT Scan Region Display Function | : | Yes | ||||||
| Fully Automatic CT Scanning | : | Yes | ||||||
| CT Stage Max. Stroke |
SRD Axis*1 | : | 890 mm | |||||
| SDD Axis*2 | : | Switchable between 2 levels (800, 1200) |
||||||
| CT-Z Axis | : | 300 mm | ||||||
| Scan Modes | : | Normal scan, half scan, offset scan, FS scan, 2DCT, CBCT | ||||||
| CT Data Acquisition Time | : | Any value from 10 sec to 60 min | ||||||
| Shield Box Size and Mass | : | W2,170 × D1,350 × H1,857 mm, approx. 3,100 kg | ||||||
| Specialized Desk Size and Mass | : | W1,200 × D700 × H1,270 mm, approx. 60 kg | ||||||
| Power Requirements | Main Unit | : | 200 V AC ±10 %, 50/60 Hz, 3 kVA | |||||
| Control Computer | : | 100 V AC ±10 %, 50/60 Hz, 1.5 kVA | ||||||
| Ground | : | Type-D ground (100 ohm max. ground resistance) | ||||||
| External Leakage Dose | : | 1 μSv/h max. | ||||||
