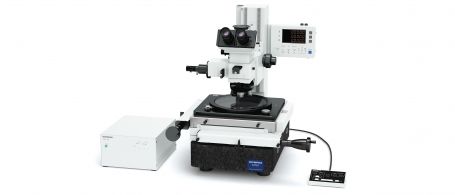

STM7 Manual Model

Mikroskop STM7 menawarkan keserbagunaan yang sangat baik dan kinerja tinggi, pengukuran tiga sumbu suku cadang dan komponen listrik, dengan presisi sub-mikron. Baik sampel kecil atau besar, sederhana atau kompleks, atau pengukuran dilakukan oleh pemula atau ahli, jajaran Olympus STM7 menghadirkan mikroskop pengukur yang disesuaikan dengan kebutuhan Anda.

SPECIFICATIONS OF STM7 (Manual Model)



Manual Model



Small stage Midsize stage Large stage
Microscope body



STM7-SF STM7-MF STM7-LF
Focus Vertical movement range 175 mm 145 mm
Maximum measurable height 120 mm (with measurement objective)
175 mm (with metallurgical objective)
90 mm (with measurement objective)
145 mm (with metallurgical objective) *1
Z-axis measurement resolution 0.1 um
Z-axis drive method Manual coaxial fine/coarse focusing knobs
Illumination LED illumination White: for reflected light illumination, green: for transmitted light illumination
Observation tube MM6-ETR-1-5 Erect image trinocular tube (100:0/0:100)
Eyepiece (F.N.22) MM6-OCC10X (with cross hairs) , MM6-OC10X
Objectives BF (Bright field) MM6C-KMAS
Illumination
U-5RES-ESD
Nosepiece
MPLFL5X,10X,LMPLFLN20X,50X,100X
Metallurgical objectives
BF (Brightfiels) /DF (Darkfield) MM6C-RLAS
Illumination
U-5BDRES-ESD
Nosepiece
LMPLFLN5XBD,10XBD,20XBD,50XBD,100XBD
Metallurgical objectives
LED unit White color (Reflected) MM6-ILW
Green color (Transmitted) MM6-ILG
Stage



STM7-CS100 STM7-CS200 STM7-CS300
Measuring range X-axis 100 mm, Y-axis 100 mm X-axis 200 mm, Y-axis 200 mm X-axis 300 mm, Y-axis 300 mm
Measurement accuracy
(L: measuring length)
(3+2L/100) μm (3+4L/200) μm (3+6L/300) μm
Accuracy assurance weight 6 kg 10 kg 15 kg
Counter



STM7-DI
Number of axes Three
Unit μm / mm / inch / mil
Minimum resolution 0.1 um
Control box STM7-CB
Hand switch STM7-HS
Focus controller
Interface cable
Anti-vibration plates STM7-VI
Power cable UYCP
Dimensions (W x D x H) mm 466 x 583 x 651 606 x 762 x 651 804 x 1024 x 686
Weight (kg) 84 kg 152 kg 277 kg
Power consumption 100-120/220-240V - 50/60Hz
0.3A/0.2A
100-120/220-240V - 50/60Hz
0.3A/0.2A
100-120/220-240V - 50/60Hz
0.3A/0.2A

*1 When using the large frame STM7-LF/STM7-LFA, a specimen whose height is 100 mm or less can be placed at the position backward from the light axis by 180 mm or more.

OBJECTIVES WORKING DISTANCE

Objective 1X 3X 5X 10X 20X 50X 100X
Measuring objectives MM6-OB series 59.6 76.8 65.4 50.5
Metallurgical objectives MPLFLN series Brightfield 20.0 11.0 3.1 1.0 1.0
LMPLFLN series Long working distance 22.5 21.0 12.0 10.6 3.4
MPLFLN-BD series Brightfield/darkfield 12.0 6.5 3.0 1.0 1.0
LMPLFLN-BD series Brightfield/darkfield, long working distance 15.0 10.0 12.0 10.6 3.3

STM7-BSW SYSTEM REQUIREMENTS

Item
CPU Intel Core i3 Processors 3 GHz or more
Memory 4 GB or more
HD available space 100 GB or more hard disk space for installation SSD hard disk is recommended for high speed image acquisition
Graphic card Graphic card available for resolution 1980 x 1080 and 32 bit color
Drive DVD Drive
PC input device 2-button mouse (3-button mouse with a wheel is recommended), keyboard
Operating system Microsoft Windows 10 Pro (32 bit / 64 bit)
Web browser Internet Explorer 8.0
* Microsoft Office 2010/2013/2016 (32 bit) are also supported.

STM7 Motorized Model

Mikroskop STM7 menawarkan keserbagunaan yang sangat baik dan kinerja tinggi, pengukuran tiga sumbu suku cadang dan komponen listrik, dengan presisi sub-mikron. Baik sampel kecil atau besar, sederhana atau kompleks, atau pengukuran dilakukan oleh pemula atau ahli, jajaran Olympus STM7 menghadirkan mikroskop pengukur yang disesuaikan dengan kebutuhan Anda.

SPECIFICATIONS OF STM7 (Motorized Model)



Motorized Model



Midsize stage Large stage
Microscope body



STM7-MFA STM7-LFA
Focus Vertical movement range 175 mm 145 mm
Maximum measurable height 120 mm (with measurement objective)
175 mm (with metallurgical objective)
90 mm (with measurement objective)
145 mm (with metallurgical objective) *1
Z-axis measurement resolution 0.1 um
Z-axis drive method Motorized
  • FOCUS button: Coarse movement speed 8 mm/s (max.)
  • Fine/coarse focusing knob: Fine focusing speed can be selected from 4 values (800 μm, 400 μm, 100 μm, 50 μm)
Illumination LED illumination White: for reflected light illumination, green: for transmitted light illumination
Observation tube MM6-ETR-1-5 Erect image trinocular tube (100:0/0:100)
Eyepiece (F.N.22) MM6-OCC10X (with cross hairs) , MM6-OC10X
Objectives BF (Bright field) MM6C-KMAS
Illumination
U-5RES-ESD
Nosepiece
MPLFL5X,10X,LMPLFLN20X,50X,100X
Metallurgical objectives
BF (Brightfield) /DF (Darkfield) MM6C-RLAS
Illumination
U-5BDRES-ESD
Nosepiece
LMPLFLN5XBD,10XBD,20XBD,50XBD,100XBD
Metallurgical objectives
LED unit White color (reflected) MM6-ILW
Green color (Transmitted) MM6-ILG
Stage



STM7-CS200 STM7-CS300
Measuring range X-axis 200 mm, Y-axis 200 mm X-axis 300 mm, Y-axis 300 mm
Measurement accuracy
(L: measuring length)
(3+4L/200) μm (3+6L/300) μm
Accuracy assurance weight 10 kg 15 kg
Counter



STM7-DI
Number of axes Three
Unit μm / mm / inch / mil
Minimum resolution 0.1 um
Control box STM7-CBA
Hand switch
Focus controller STM7-MCZ
Interface cable U-IFCBL200 U-IFCBL200
Anti-vibration plates STM7-VI
Power cable UYCP
Dimensions (W x D x H) mm 606 x 762 x 811 804 x 1024 x 844
Weight (kg) 159 kg 284 kg
Power consumption 00-120/220-240V  50/60Hz 0.6A/0.35A 100-120/220-240V  50/60Hz 0.6A/0.35A

*1 When using the large frame STM7-LF/STM7-LFA, a specimen whose height is 100 mm or less can be placed at the position backward from the light axis by 180 mm or more.

OPTION

Objectives Measurement objectives MM6-OB series
(1X /3X /5X /10X)
Focus navigator Focus navigator unit STM7-FN
Green LED unit MM6-ILG
Autofocus Autofocus unit STM7-AF
DIC U-DICR DIC slider for reflected light U-DICR
Software/Camera Measurement Support Software STM7-BSW
Camera Digital camera Low STM7-CU
Digital camera Middle DP22-CU
Digital camera High DP29-CU
TV adapter C-mount camera port tube with 0.5X lens U-TV0.5XC-3-8
C-mount camera port tube with 0.35X lens U-TV0.35XC-2-7
Rotatable stage For 100 x 100 mm STM7-RS100
For 200 x 200 mm STM7-RS200
For 300 x 300 mm STM7-RS300
ND filter ND filter (Transmittance 6%) U-25ND6
ND filter (Transmittance 25%) U-ND25
DIC DIC/Polarizer U-PO3
DIC/Analyzer U-AN360-3
Software MIA, EFI optional software STM7-ASW-ME
Foot switch STM7-FS
Power supply unit MM6-ILPS-2
Stage micrometer OB-M/OB-MM
