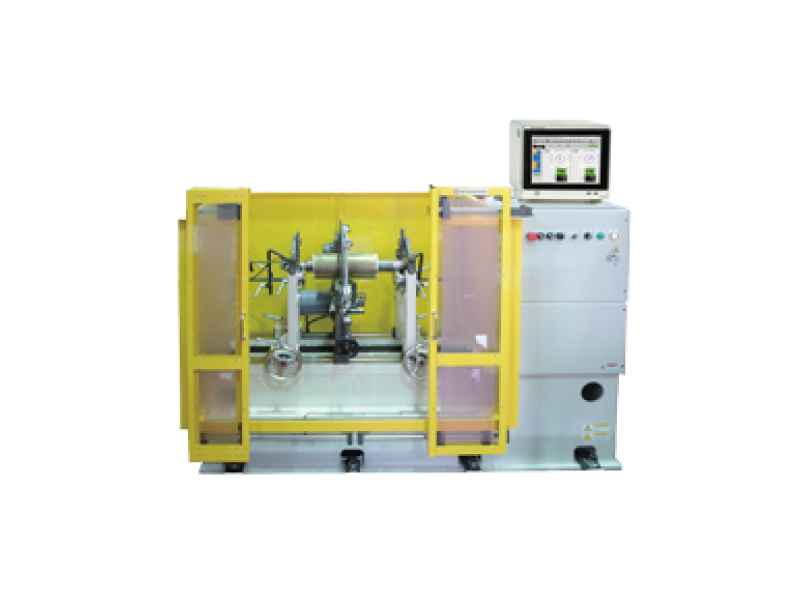

HGB-HTB SERIES
Produk / Shimadzu Dynamic Balancing Machine / Horizontal Type / HGB-HTB SERIES

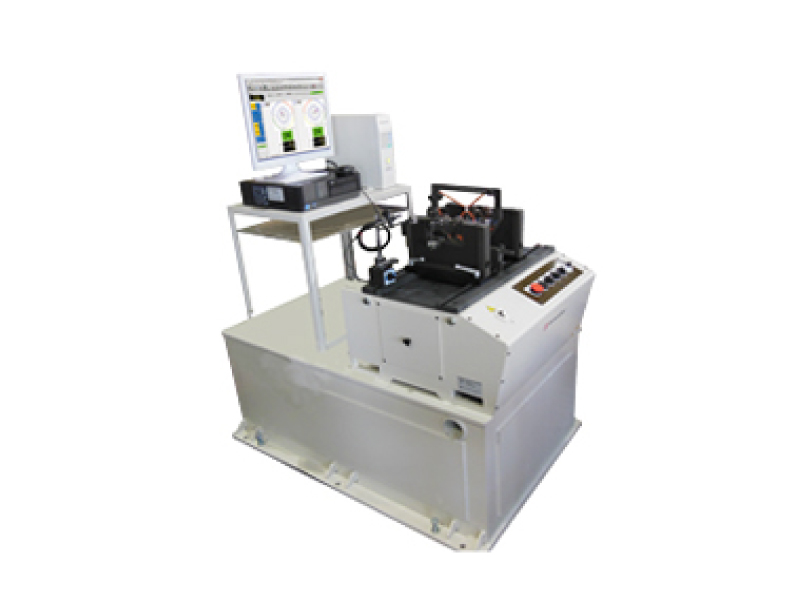

HGB/HTB-4NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 3 |
| Max. Weight Under Uniform Load (kg) | 4 |
| Max. Workpiece Diameter (mm) | 320 |
| Max. Cylinder Diameter for Belt Drive (mm) | 150 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 5 to 25 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 25 to 40 |
| Installation Method | Table Type |
| Span Across Bearings (mm) | 60 to 520 |
| Testing Speed (rpm) | 1200/2400 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 0.04 |
| Size (WxDxH mm) | 500x550x300 |
| Weight (kg) | 200 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGB/HTB-10NEII
Specifications
| Workpiece Weight (kg) | 0.1 to 8 |
| Max. Weight Under Uniform Load (kg) | 10 |
| Max. Workpiece Diameter (mm) | 320 |
| Max. Cylinder Diameter for Belt Drive (mm) | 150 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 5 to 25 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 25 to 40 |
| Installation Method | Table Type |
| Span Across Bearings (mm) | 60 to 520 |
| Testing Speed (rpm) | 800/1600 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 0.06 |
| Size (WxDxH mm) | 500x550x300 |
| Weight (kg) | 200 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGB/HTB-30NEII
Specifications
| Workpiece Weight (kg) | 0.3 to 20 |
| Max. Weight Under Uniform Load (kg) | 30 |
| Max. Workpiece Diameter (mm) | 400 |
| Max. Cylinder Diameter for Belt Drive (mm) | 150 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 10 to 40 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 40 to 60 |
| Installation Method | Table Type |
| Span Across Bearings (mm) | 60 to 520 |
| Testing Speed (rpm) | 800/1600 |
| Drive motor (w) | 0.2 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 0.1 |
| Size (WxDxH mm) | 650x590x520 |
| Weight (kg) | 200 |
| Power Supply | Single-phase 200V 10A 2KVA |
HGB/HTB-100NEII
Specifications
| Workpiece Weight (kg) | 1 to 80 |
| Max. Weight Under Uniform Load (kg) | 100 |
| Max. Workpiece Diameter (mm) | 760 |
| Max. Cylinder Diameter for Belt Drive (mm) | 200 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 10 to 80 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 80 to 120 |
| Installation Method | Floor-mounted type |
| Span Across Bearings (mm) | 100 to 820 |
| Testing Speed (rpm) | 500/850/1400/1900 |
| Drive motor (w) | 0.75 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 0.6 |
| Size (WxDxH mm) | 1800x420x900 |
| Weight (kg) | 800 |
| Power Supply | 3-phase 200V 30A 10KVA |
HGB/HTB-400NEII
Specifications
| Workpiece Weight (kg) | 4 to 300 |
| Max. Weight Under Uniform Load (kg) | 400 |
| Max. Workpiece Diameter (mm) | 1000 |
| Max. Cylinder Diameter for Belt Drive (mm) | 300 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 20 to 100 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 100 to 150 |
| Installation Method | Floor-mounted type |
| Span Across Bearings (mm) | 250 to 1700 |
| Testing Speed (rpm) | 350/550/850/1400 |
| Drive motor (w) | 1.5 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 0.9 |
| Size (WxDxH mm) | 2000x490x1300 |
| Weight (kg) | 1000 |
| Power Supply | 3-phase 200V 30A 10KVA |
HGB/HTB-1000NEII
Specifications
| Workpiece Weight (kg) | 10 to 800 |
| Max. Weight Under Uniform Load (kg) | 1000 |
| Max. Workpiece Diameter (mm) | 1300 |
| Max. Cylinder Diameter for Belt Drive (mm) | 550 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 30 to 140 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 140 to 200 |
| Installation Method | Floor-mounted type |
| Span Across Bearings (mm) | 400 to 2300 |
| Testing Speed (rpm) | 300/500/900/1400 |
| Drive motor (w) | 3.7 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 1.5 |
| Size (WxDxH mm) | 2600x630x1500 |
| Weight (kg) | 2500 |
| Power Supply | 3-phase 200V 50A 18KVA |
HGB/HTB-3000NEII
Specifications
| Workpiece Weight (kg) | 30 to 2500 |
| Max. Weight Under Uniform Load (kg) | 3000 |
| Max. Workpiece Diameter (mm) | 1600 |
| Max. Cylinder Diameter for Belt Drive (mm) | 600 |
| Workpiece Shaft Diameter (Roller bearing) - Standard (mm) (1) | 30 to 140 |
| Workpiece Shaft Diameter (Roller bearing) - Special (mm) (1) | 140 to 200 |
| Installation Method | Floor-mounted type |
| Span Across Bearings (mm) | 400 to 4200 |
| Testing Speed (rpm) | 300/500/800/1200 |
| Drive motor (w) | 5.5 |
| Method of Speed Change | Variable Speed |
| Min. Achievable Residual Unbalance (µm) (2) | 0.25 (mass eccentricity for a workpiece of max. weight) |
| Min. Achievable Unbalance on One-Plane (g•mm) (3) | 2 |
| Size (WxDxH mm) | 4500x815x1500 |
| Weight (kg) | 4000 |
| Power Supply | 3-phase 200V 60A 21KVA |
