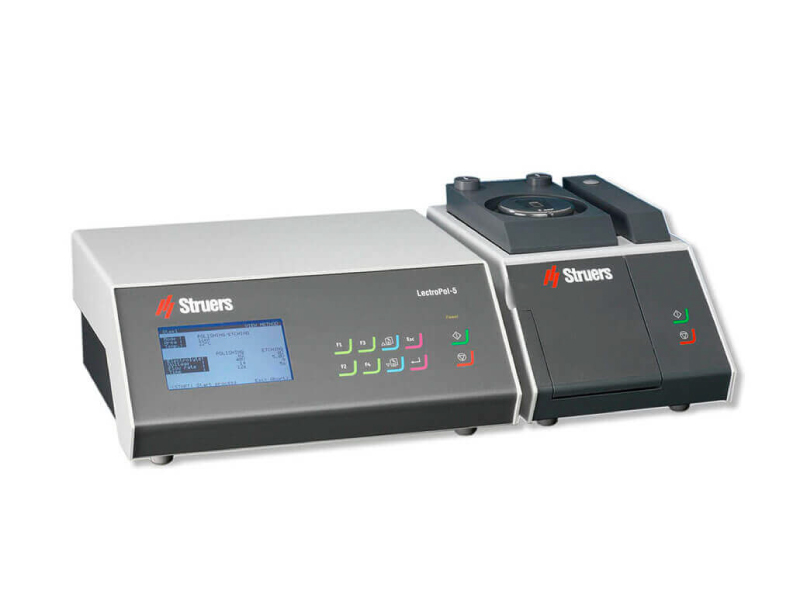

LectroPol-5

c/n : 04936133

Automatic, micro-processor controlled electrolytic polishing and etching of metallographic specimens



Specifications

Power Supply   : 1 x 220-240 V / 50-60 Hz / Max load 4.9 A
  : Convertible to 1 x 100-120 V / 50-60 Hz / Max load 9.8 A
Output voltage / current Polishing : 0 - 100 V / 1V steps / 6A
Etching : 0 - 25 V / 0.5V steps / 6A
External Etching : 0 - 15 V / 0.5V steps / 1.5A
Software and Electronics Display : 128 x 240 dots (16 x 40 characters)
Controls : Touchpad
Database : 10 STRUERS methods + 20 user definable methods (Non volatile)

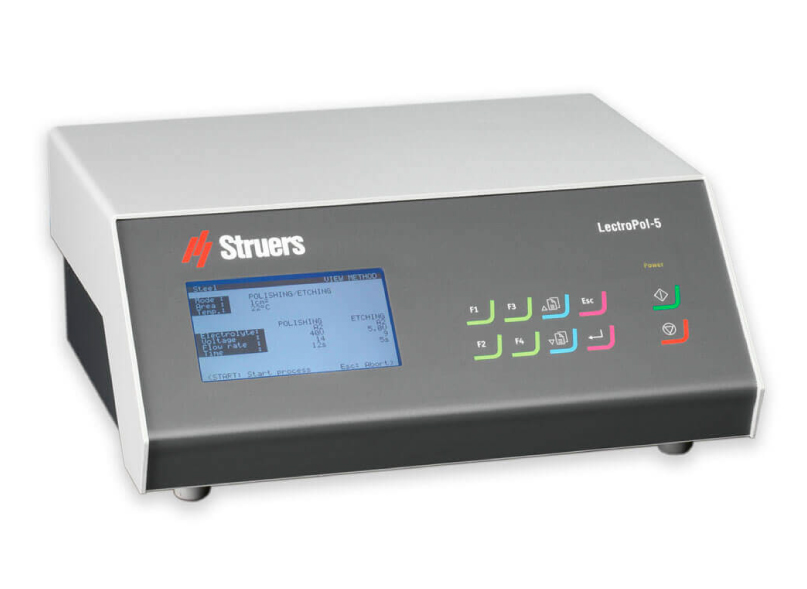

Dimensions and Weight Control Unit Width : 385 mm / 15.2"
Depth : 350 mm / 13.8"
Height : 160 mm / 6.3"
Weight : 18 kg / 40 lbs

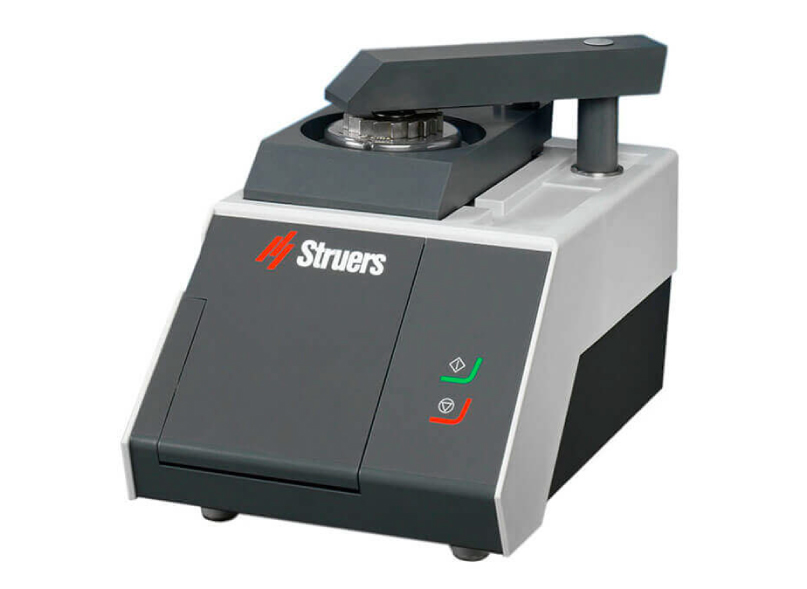

Dimensions and Weight Polishing Unit Width : 220 mm / 8.7"
Depth : 350 mm / 13.8"
Height : 160 mm / 6.3"
Weight : 6.3 kg / 14 lbs
