Hexamatic
Produk / Struers Metallography / Grinding/Polishing Machine / Hexamatic

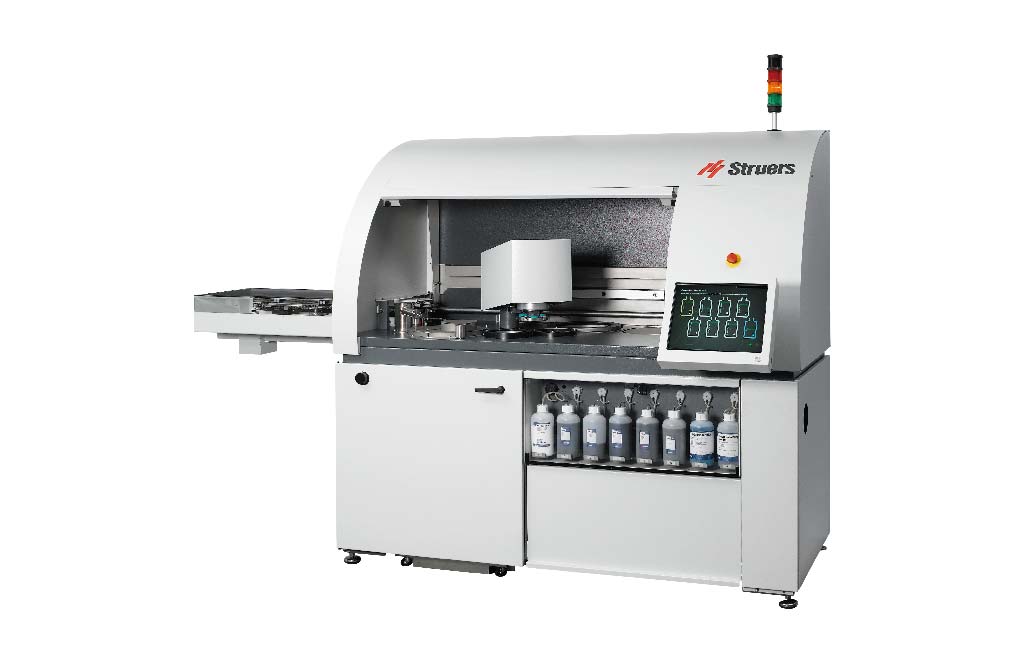

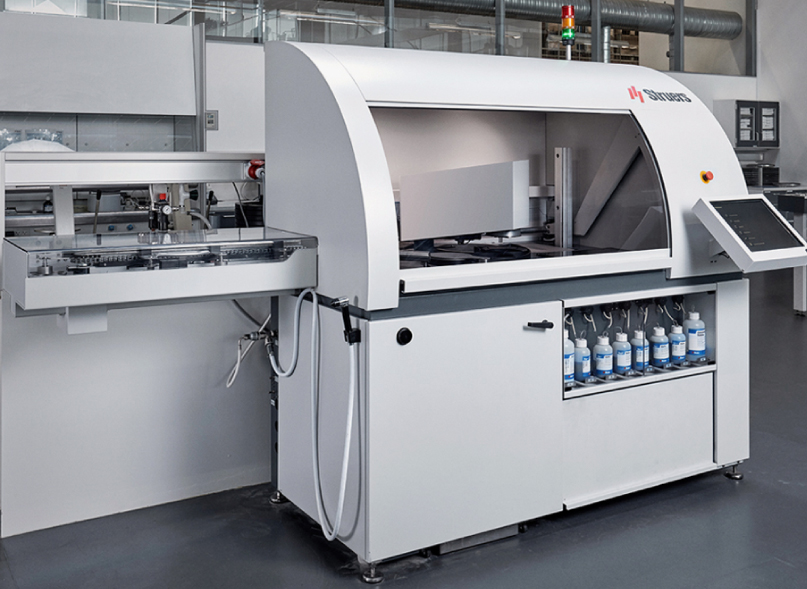

Hexamatic with conveyor
| c/n | : 05946146 |
Fully automatic preparation machine with one plane grinding station and one fine grinding/polishing station with eight interchangeable discs. With conveyor for eight specimen holders/specimen mover plates, recirculation cooling unit, bottle unit with eight peristaltic pumps, stock removal unit and two built-in cleaning chambers
Technical data
| Connections | Power | : 3 x 380-415 50/60 Hz |
| Water supply | : Mains water input, output to normal drain | |
| Rotation speed | : 500-1500 rpm | |
| Conveyor belt | : 8 Specimen Holder/ Specimen Mover | |
| Grinding/polishing disc | : Diameter 250 & 300 mm | |
| available for Grdinding stones | ||
| Cleaning station | Programmable automatic cleaning | : - Cleaning time |
| : - Pressure water rinsing | ||
| : - Cleaning with alcohol | ||
| : - Air-drying | ||
| Dosing system | for DP or OP suspension | : 7 |
| Recirculation cooling unit | : 50L tank |
Hexamatic without conveyor
| c/n | : 06406146 |
Fully automatic preparation machine with one plane grinding station and one fine grinding/polishing station with eight interchangeable discs. With recirculation cooling unit, bottle unit with eight peristaltic pumps, stock removal unit and two built-in cleaning chambers
Technical data
| Connections | Power | : 3 x 380-415 50/60 Hz |
| Water supply | : Mains water input, output to normal drain | |
| Rotation speed | : 500-1500 rpm | |
| Conveyor belt | : 8 Specimen Holder/ Specimen Mover | |
| Grinding/polishing disc | : Diameter 250 & 300 mm | |
| available for Grdinding stones | ||
| Cleaning station | Programmable automatic cleaning | : - Cleaning time |
| : - Pressure water rinsing | ||
| : - Cleaning with alcohol | ||
| : - Air-drying | ||
| Dosing system | for DP or OP suspension | : 7 |
| Recirculation cooling unit | : 50L tank |
