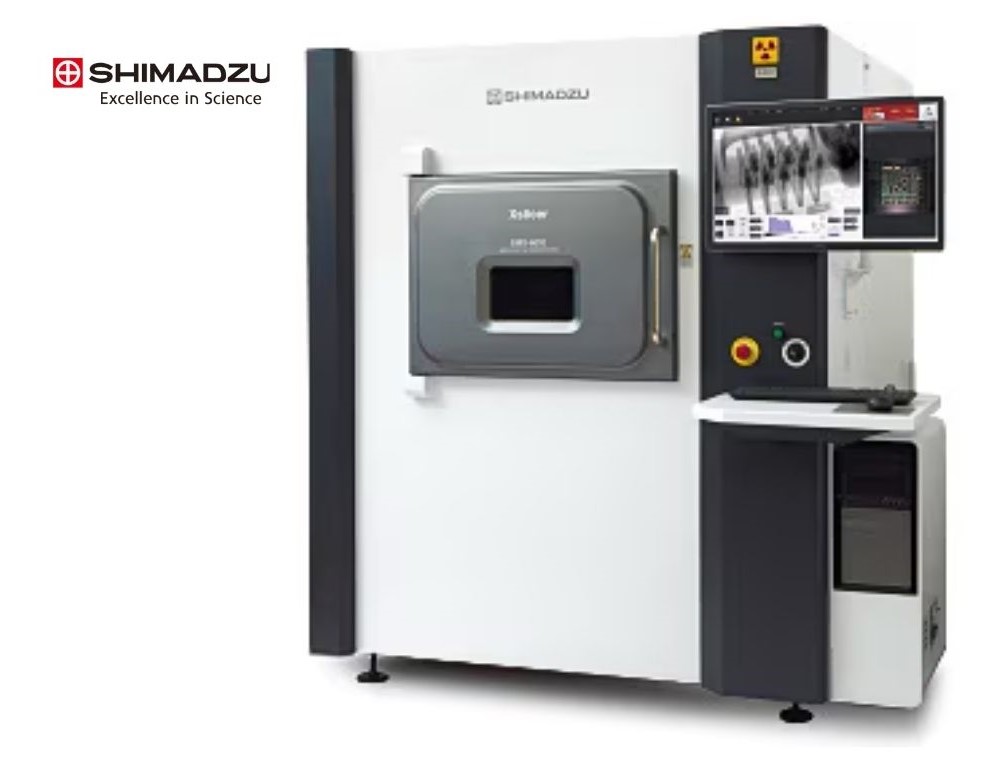

SHIMADZU Microfocus X-Ray Inspection System |
|
|
| |
Model |
|
: Xslicer SMX-6010 |
|
|
| |
|
|
|
|
|
|
| |
Specifications : |
|
|
|
|
|
| |
Spatial Resolution |
: |
1 µm (JIMA chart resolution) |
|
| |
Maximum Sample Size |
: |
470 × 420 × 100 mm, max. 5 kg |
|
| |
Fluoroscopic Inspection Stroke |
: |
X: 460 mm, Y: 410 mm, Z: 100 mm, ±180° rotation, 60° tilt |
|
| |
CT Scan Range |
|
: |
X: 350 mm, Y: 350 mm |
|
|
| |
Laminographic Angle (CT Scan Angle) |
: |
45° or 60° |
|
|
| |
X-Ray Output |
|
: |
Max. tube voltage: 160 kV, Max. tube current: 100 µA, Rated Output: 16 W |
|
| |
Detector |
|
: |
Flat panel detector |
|
|
| |
Fluoroscopy FOV (on Carbon Plate) |
: |
0.75 mm (vertical) × 1.3 mm (horizontal) to 21 mm (vertical) × 38 mm (horizontal) |
|
| |
CT FOV (on Carbon Plate) |
: |
3 to 30 mm (given 45° laminographic angle) / 3 to 14 mm (given 60° laminographic angle) |
|
| |
Power Requirements |
: |
200 V AC ± 10 %, 1.5 kVA (ground resistance 100Ω max.) |
|
| |
Weight |
|
: |
Approx. 2,450 kg |
|
|
| |
Operating Environment Conditions |
: |
Ambient temperature: 15 to 30 °C, Ambient humidity: 35 to 80 % (no condensation) |
|
| |
External Leakage Dose |
: |
1 µSv/h max |
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
