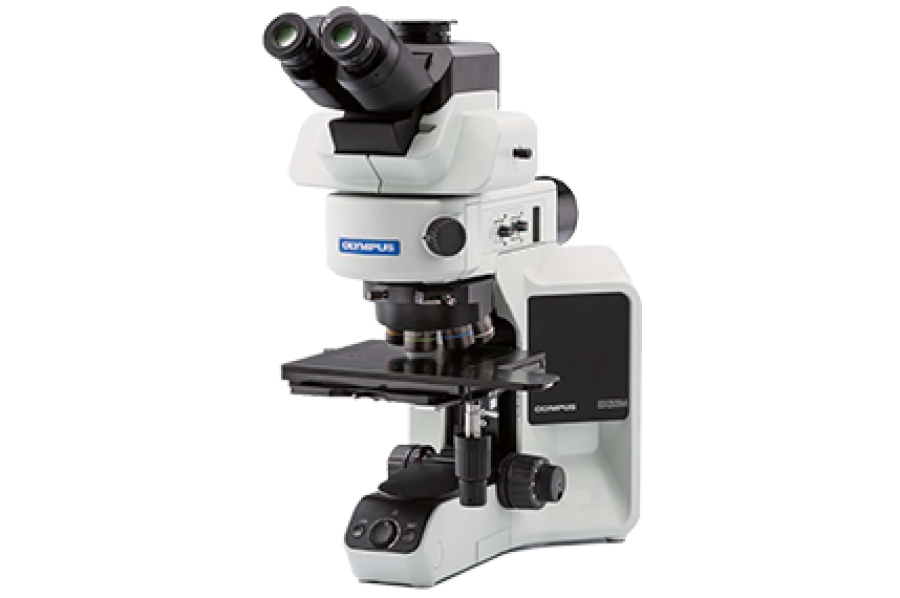

BX53M

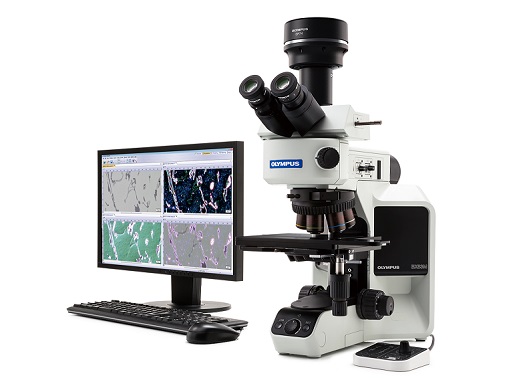

Didesain dengan mengutamakan modularitas, seri BX53M memberikan keserbagunaan untuk berbagai aplikasi ilmu material dan industri. Dengan integrasi yang lebih baik dengan perangkat lunak OLYMPUS Stream, BX53M menyediakan alur kerja yang mulus untuk mikroskopi standar dan pengguna pencitraan digital mulai dari observasi hingga pembuatan laporan.
Nyaman dan Mudah Digunakan
BX53M menyederhanakan tugas mikroskop yang rumit melalui kontrol yang dirancang dengan baik dan mudah digunakan. Pengguna bisa mendapatkan hasil maksimal dari mikroskop tanpa perlu pelatihan ekstensif. Pengoperasian BX53M yang mudah dan nyaman juga meningkatkan reproduktifitas dengan meminimalkan kesalahan manusia.
- Illuminator Sederhana
- Kontrol Mikroskop Intuitif
- Temukan Fokus dengan Cepat
- Iluminasi yang Konsisten
- Pengoperasian yang Mudah dan Ergonomis
- Pengaturan Mikroskop Kembalikan Mudah
- Fungsi Pengukuran Dasar
SPECIFICATIONS OF BX53M SUGGESTED CONFIGURATION FOR GENERAL USE |
|
|
Entry | Standard | Advanced | ||||||
| Optical system | UIS2 optical system (infinity-corrected) | ||||||||
| Main unit | Microscope frame | BX53MRF-S (Reflected) |
BX53MTRF-S (Reflected/Transmitted) |
BX53MRF-S (Reflected) |
BX53MTRF-S (Reflected/Transmitted) |
BX53MRF-S (Reflected) |
BX53MTRF-S (Reflected/Transmitted) |
||
| Focus | Stroke: 25 mm Fine stroke per rotation: 100 μm Minimum graduation: 1 μm With upper limit stopper, torque adjustment for coarse handle |
||||||||
| Max. specimen height | Reflected: 65 mm (w/o spacer), 105 mm (with BX3M-ARMAD) Reflected/Transmitted: 35 mm (w/o spacer), 75 mm (with BX3M-ARMAD) |
||||||||
| Observation tube | Wide field (F.N.22) | U-TR30-2-2 Inverted: trinocular |
|||||||
| Illumination | Reflected light Transmitted light |
BX3M-KMA-S White LED, BF/DIC/POL/MIX FS, AS (with centering mechanism), BF/DF interlocking |
BX3M-RLAS-S Coded, White LED, BF/DF/DIC/POL/MIX FS, AS (with centering mechanism), BF/DF interlocking |
||||||
| － | BX3M-LEDT White LED Abbe/long working distance condensers |
－ | BX3M-LEDT White LED Abbe/long working distance condensers |
－ | BX3M-LEDT White LED Abbe/long working distance condensers |
||||
| Revolving nosepiece | U-5RE-2 For BF: Quintuple |
U-D6BDRE For BF/DF: Sextuple |
U-D6BDRES-S For BF/DF : Sextuple, Coded |
||||||
| Eyepiece（F.N.22) | WHN10 WHN10X-H |
||||||||
| MIX observation | － | BX3M-CB Control box BX3M-HS Hand switch U-MIXR MIX slider for reflected light observation U-MIXRCBL Cable for MIXR |
|||||||
| Condenser (Long working distance) | － | U-LWCD | － | U-LWCD | － | U-LWCD | |||
| Power cable | UYCP (x1) | UYCP (x2) | |||||||
| Weight | Reflected: approx.15.8 kg (microscope frame 7.4 kg) Reflected/transmitted: approx. 18.3 kg (microscope frame 7.6 kg) |
||||||||
| Objectives | MPLFLN set | MPLFLN5X, 10X, 20X, 50X, 100X BF/DIC/POL/FL observation |
－ | ||||||
| MPLFLN BD set | － | MPLFLN5XBD, 10XBD, BD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation |
|||||||
| MPLFLN-BD, LMPLFLN-BD set | － | MPLFLN5XBD, 10XBD, LMPLFLN20XBD, 50XBD, 100XBD BF/DF/DIC/POL/FL observation |
|||||||
| Stage (X x Y) | 76 mm x 52 mm set | U-SVRM, U-MSSP Coaxial left handle stage / 76 (X) × 52 (Y) mm, with torque adjustment |
|||||||
| 100 mm x 10 0mm set | U-SIC4R2, U-MSSP4 Large-size coaxial left handle stage / 100 (X) x 100 (Y) mm, with lock mechanism in Y axis |
||||||||
| 100 mm x 100 (G) mm set | U-SIC4R2, U-MSSPG Large-size coaxial right handle stage / 100 (X) x 100 (Y) mm, with lock mechanism in Y axis (Glass plate) |
||||||||
| 150 mm x 100 mm set | U-SIC64, U-SHG, U-SP64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis |
||||||||
| 150 mm x 100 (G) mm set | U-SIC64, U-SHG, U-SPG64 Large-size coaxial right handle stage / 150 (X) x 100 (Y) mm, with torque adjustment, with lock mechanism in Y axis (Glass plate) |
||||||||
| Option | MIX observation set* | BX3M-CB, BX3M-HS, U-MIXR, U-MIXRCBL | － | ||||||
| DIC* | U-DICR | ||||||||
| Intermediate Tubes | U-CA, U-EPA2, U-TRU-1-2, U-TRU | ||||||||
| Filters | U-25ND6, U-25ND25, U-25LBD, U-25LBA, U-25Y48, U-AN360-3, U-AN360P, U-PO3, U-POTP3, U-25IF550, U-25L42, U-25, U-25FR | ||||||||
| Filter for condenser | 43IF550-W45, U-POT | ||||||||
| Stage plate | U-D6BDRES-S, U-D6RE-ESD-2, U-D6BDRES-ESD, U-5RES-ESD | ||||||||
| Specimen holder | U-HRD-4, U-HLD-4, U-HRDT-4, U-HLDT-4 | ||||||||
| Handle rubber | U-SHG, U-SHGT | ||||||||
*Cannot be used with U-5RE-2.
BX53M / BXFM ESD UNITS
| Items | Microscope frame | BX53MRF-S, BX53MTRF-S |
| Illuminator | BX3M-KMA-S, BX3M-RLA-S, BX3M-URAS-S, BX3M-RLAS-S | |
| Nosepiece | U-D6BDRES-S, U-D6RE-ESD, U-D5BDREMC-ESD, U-5RES-ESD | |
| Stage | U-SIC4R2, U-SIC4L2, U-MSSP4 |
