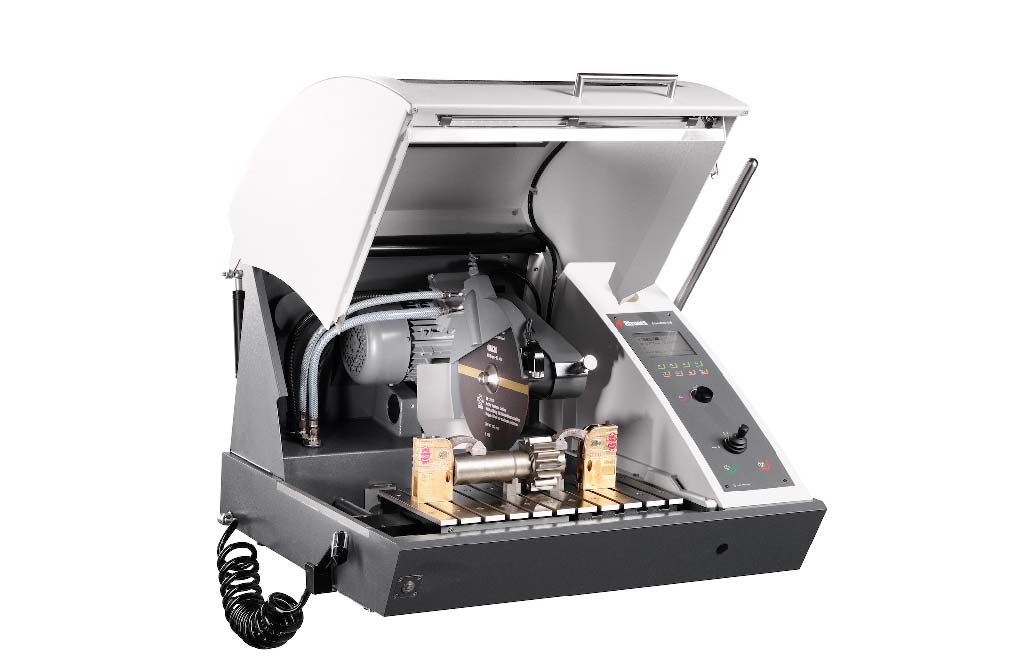

Discotom-10

c/n : 06256246 (XY-table)
: 06256146 (Y-table)

Automatic cut-off machine. For 250 mm (10") cut-off wheels.
Cutting table with 10 mm T-slots.



Specifications

Cutting Capacity   : 94 mm / 3.70" dia with 61 mm / 2.4" flange
Power Nominal load (S1) : 2.5 kW / 3.4 HP
Intermittent (S3) : 3.2 kW / 4.3 HP
Cut-off wheel size Max. Dia x Thickness x Centre Hole : 250 x 1.5 x 32 mm / 10 x 0.06 x 1.26"
Rotational speed   : 2850 rpm
Positioning & Feed Positioning Range (of cut-off wheel) : Z = 165 mm
Max. height of sample underneath cut-off wheel : 105 mm (@ 250 mm wheel)
Max. Positioning speed : Y = 20 mm/s / 0.8"/s, X = 10 mm/s / 0.4"/s
Feed speed range : 0.05 - 2.5 mm/s / 2 - 100 mils/s
Adjustable in steps of : 0.05 mm/s / 2 mils/s
Cutting table Fixed cutting table: Width x Depth : 620 x 270 mm / 24.4 x 10.6"
Fixed cutting table: y-table range : 200 mm / 7.9"
x-table (Option): Width x Depth : 282 x 270 mm / 11.1 x 10.6"
x-table (Option): y-table range : 100 mm / 3.9"
T-Slots : 10 mm / 0.39"
Dimensions Width : 920 mm / 36"
Depth : 890 mm / 35"
Height : 685 mm / 27"
Weight : 200 kg / 440 lbs

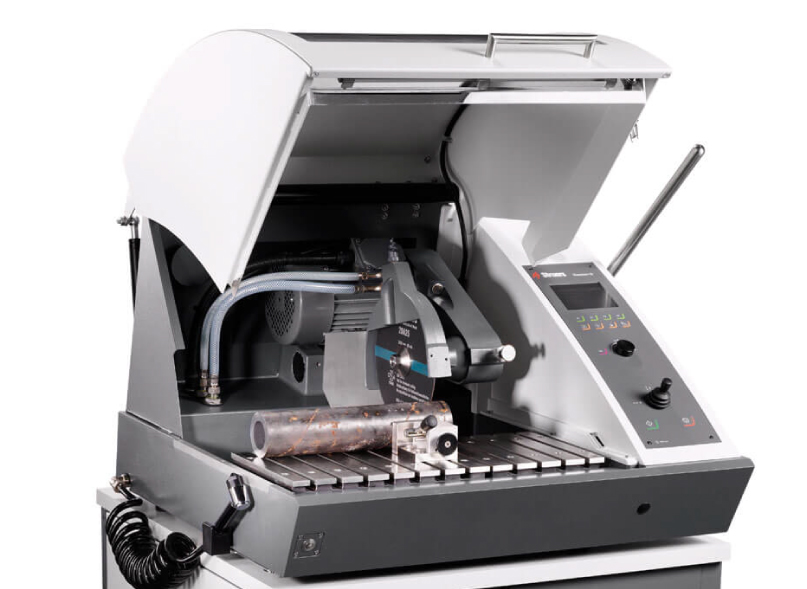

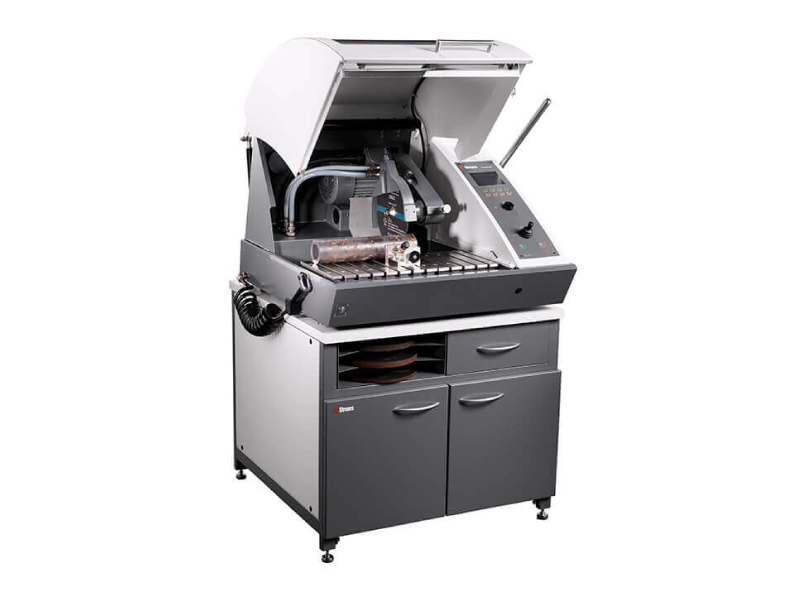

Discotom-100

c/n : 06156246 (XY-table)
: 06156146 (Y-table)

Automatic cut-off machine. For 300 mm (12") cut-off wheels.
Cutting table with 10 mm T-slots.



Specifications

Cutting Capacity   : 119 mm / 4.68" dia with 61 mm / 2.4" flange
Power Nominal load (S1) : 4 kW / 5.4 HP
Intermittent (S3) : 4.7 kW / 6.4 HP
Cut-off wheel size Max. Dia x Thickness x Centre Hole : 300 x 2.0 x 32 mm / 12 x 0.08 x 1.26"
Rotational speed   : 1500 - 3000 rpm
Positioning & Feed Positioning Range (of cut-off wheel) : Z = 165 mm
Max. height of sample underneath cut-off wheel : 80 mm (@ 300 mm wheel)
: 105 mm (@ 250 mm wheel)
Max. Positioning speed : Y = 20 mm/s / 0.8"/s, X = 10 mm/s / 0.4"/s
Feed speed range : 0.05 - 2.5 mm/s / 2 - 100 mils/s
Adjustable in steps of : 0.05 mm/s / 2 mils/s
Cutting table Fixed cutting table: Width x Depth : 620 x 270 mm / 24.4 x 10.6"
Fixed cutting table: y-table range : 200 mm / 7.9"
x-table (Option): Width x Depth : 282 x 270 mm / 11.1 x 10.6"
x-table (Option): y-table range : 100 mm / 3.9"
T-Slots : 10 mm / 0.39"
Dimensions Width : 920 mm / 36"
Depth : 890 mm / 35"
Height : 685 mm / 27"
Weight : 200 kg / 440 lbs
