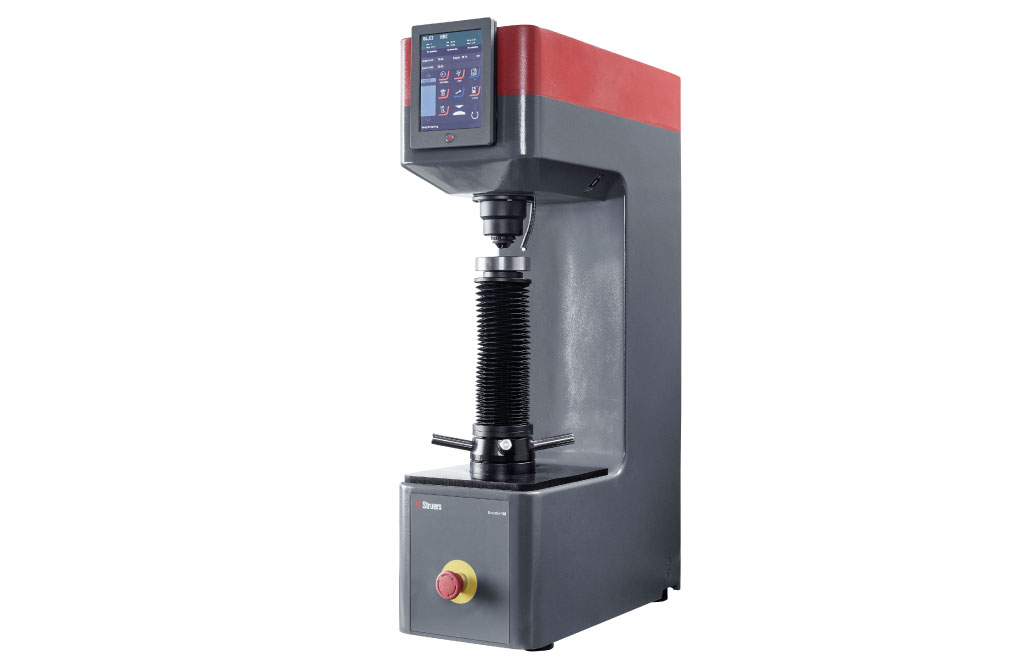

Duramin 150
Produk / Struers Metallography / Hardness Tester / Duramin 150
Duramin-150
| c/n | : 06686101 |
Specifications
| LOADS AND APPLICATIONS | Load range (main loads) | : | 3 kgf - 150 kgf |
| Vickers capability | : | No | |
| Knoop capability | : | No | |
| Brinell capabilty | : | No | |
| Rockwell capability | : | Yes, all scales | |
| HVT/HVB | : | Yes | |
| ANVILS AND TURRETS | Anvil size (mm) | : | Ø 60 |
| Vertical capacity (mm) | : | 250 | |
| Throat depth (mm) | : | 170 | |
| Turret positions | : | 1 | |
| Test cycle | : | Fully automatic | |
| Anvil illumination | : | Yes | |
| Machine weight | : | 85 kg | |
| SOFTWARE AND MODULES | Statistics | : | Yes |
| Data export | : | Yes | |

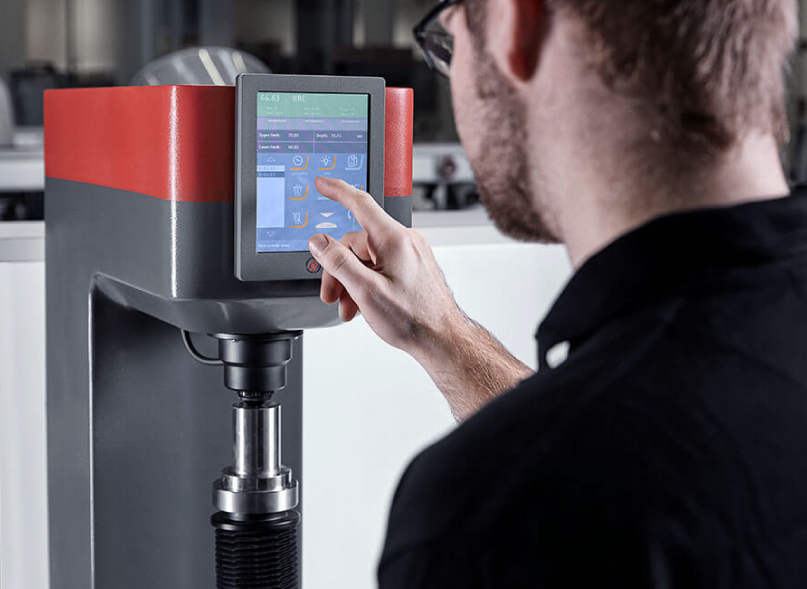

| INTERFACES AND CONNECTIVITY | Operation | : | 6.5” touch screen |
| Communication Ports | : | USB 2.0 |
