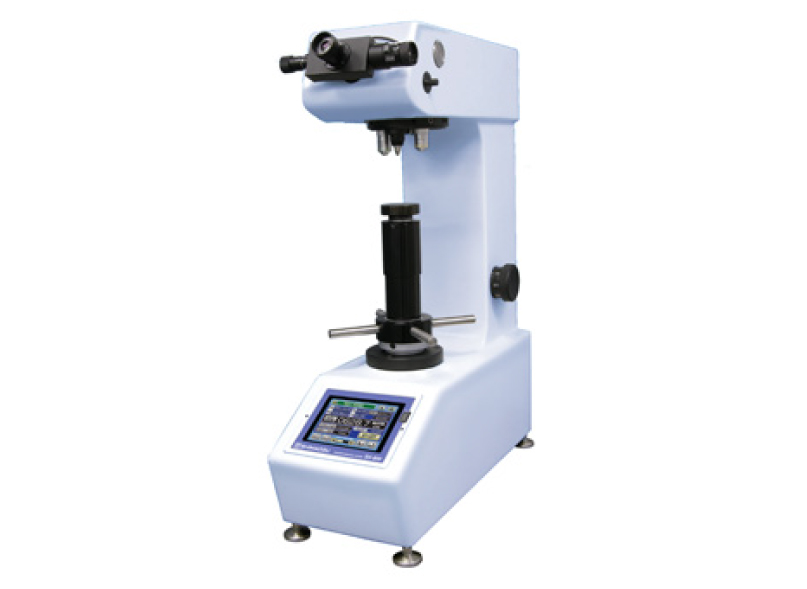

HSV-100e
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Manual | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 3 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Mechanical | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |
HSV-100
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Automatic | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 3 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Mechanical | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |
HSV-300e
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Manual | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 3 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Electronic | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |
HSV-300
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Automatic | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 3 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Electronic | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |
HSV-800e
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Manual | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 4 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Electronic | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |
HSV-800
Specifications
| Test Load | Type A | : | N : 9.807 19.61 29.42 49.03 98.07 196.1 294.2 490.3 |
| kgf : 1 2 3 5 10 20 30 50 | |||
| Type B | : | N : 2.942 4.903 9.807 29.42 49.03 98.07 196.1 294.2 | |
| kgf : 0.3 0.5 1 3 5 10 20 30 | |||
| Turret Mechanism | : | Automatic | |
| Diamond Indenter | Standard | : | Vickers Indenter (HV) |
| Object Lens | Standard | : | Type A : × 10 / Type B : × 10 & × 20 |
| Options | : | Max. 4 Lenses | |
| Eyepiece | : | × 10 | |
| Measuring Microscope Type | : | Electronic | |
| Max. Height of Specimen | : | 210 mm | |
| Max. Depth of Specimen | : | 165 mm | |
| Dimensions | : | W 215 × D 517 × H 690 mm | |
| Weight | : | Approx. 55 kg (Including Standard Accessories) | |
| Power Supply | : | Overseas : Single phase AC 100 to 240 V 50/60 Hz (Please specify before shipment) |

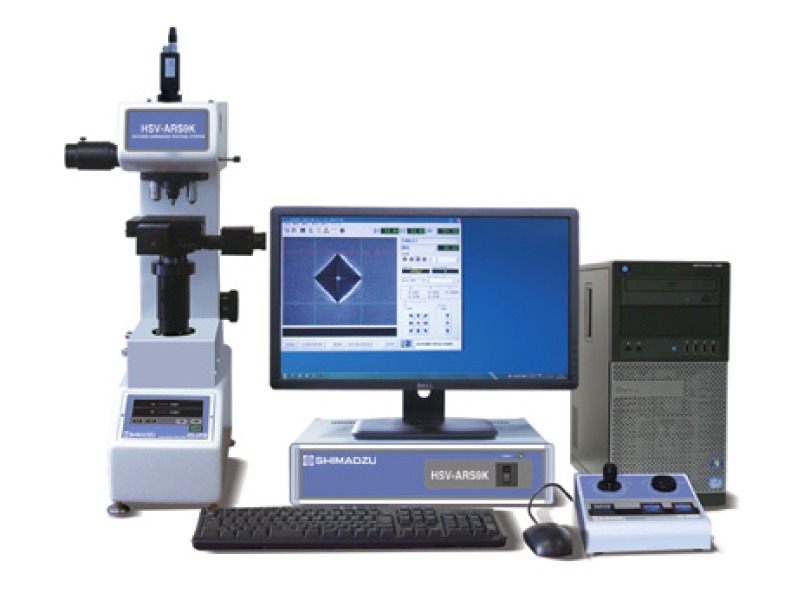

HSV-ARS9k
Specifications
| Standard System Components | : | Analog Vickers Hardness Tester Model : HSV-110S | |
| Automatic X-Y Stage & Motor Drive Unit | |||
| CCD Camera | |||
| Joy-Stick with Controller | |||
| Standard Software for System ARS9k | |||
| Hardness Tester | Model | : | Model : FV-110S : Stage Elevation Motor Built-in |
| Type | : | Analog type : Controllable Loading Operation by External PC | |
| Test Load | : | 0.3, 0.5, 1, 3, 5, 10, 20, 30 kgf | |
| Loading Mechanism | : | Automatic Load/Hold/Release Method | |
| Focus Operation | : | Automatic/Manual Operation available (Manual operation is driven by motor.) | |
| Auto-Stage Elevation | : | Automatic : by Built-in Stepping Motor / Manual : by Joy-Stick Operation | |
| * Safety Devises equipped for Overrun of Elevation | |||
| Precision Vise | : | Standard : Max. Opening : 50mm | |
| Turret Rotation | : | Automatic/Manual changeable | |
| Loading Speed | : | First speed : 120μm/sec & Real load speed : 60μm /sec. | |
| Dwell Time | : | 5~40sec | |
| Manual Measurement | : | By Video Line on TFT available | |
| Objective Lens | : | x10 / x20 (Optical Parts for 3rd Lens Built-in) | |
| Automatic Measurement Scale | : | Vickers Hardness (HV) | |
| Automatic X-Y Stage | Driving Motor | : | Stepping Motor |
| Drive | : | By Icon : 2 Steps Speed available in X.Y.Z axis | |
| By Joy-Stick : Flexible Speed Changing in X.Y.Z axis | |||
| Dimensions | : | 110 X 110mm | |
| Max/ Movement | : | 50 X 50mm | |
| Min. Movement | : | 1μm | |
| Moving Speed | : | 1 - 25mm/sec. adjustable | |
| Movement Program Pattern | : | Straight Line (Vertical & Horizontal) | |
| Zigzag | |||
| Circle | |||
| Arc | |||
| Line Set for any Angle (50 Lines and Max. 998 indents on 1 Line/Total 49900 indents are measurable.) | |||
| Random | |||
| Teaching | |||
| Matrix (Max. 9999 indents in a range are measurable.) | |||
| Specificity of 2 Points | |||
| Specificity of Angle | |||
| Sample Profile Memory Function & Measurement along with Profile Line | |||
| Automatic Reading | Pattern Setting | : | Start Position Setting for Straight Line and Position Setting for Random/ |
| Teaching Mode shall be performed by Mouse-Click. | |||
| Software | : | OS : Microsoft Windows 7 | |
| Hardness Scales | : | Vickers Hardness (HV) / Knoop Hardness (HK) | |
| Measurement Repeatability | : | ±0.8% on Test Block 800 HV / 10 kgf | |
| Auto-Focus Time | : | Shortest 3 sec. | |
| Auto-Reading Time | : | Approx. 0.2 sec/1 indent | |
| Measurable Min. Indentation | : | 10μm | |
| Min. Measurement Unit | : | 0.1μm | |
| Manual Measurement | : | Optional Ocular or Video Line on TFT | |
| Available Language | : | Japanese / English | |
| Other Features | Data Output Format Editing Function |
: | Hardness Value, Hardness Chart, Case Depth, Insertion of Picture, etc. and Flexible Data Editing on "Excel" (Excel software is not included) |
| Printer | : | Optional: Color Ink-Jet Type | |
| Joystick | : | For X.Y.Z axis Movement / Standard : Digital Type | |
| Safety Device | : | Safety Devices equipped for Unmanned Operation | |
| * Turret Rotation stops instantaneously in case Object Lens or Indenter hits a Specimen. | |||
| * Upper & Lower Limit Stopper is equipped against Uncontrollable Stage Elevation. | |||
| Accuracy | : | Conform to JIS B-7725, ASTM E-92, and ISO 6507-2 | |
| System Dimensions | : | Table size : (W)1800 x (D) 700 x (H)750 mm At least | |
| System Gross Weight | : | Approx.95kg (including PC, Control box etc..) | |
| Power Supply | : | Single-phase 100 ~ 120VAC or 200 ~ 240VAC; 50/60Hz |
