Duramin 600
Produk / Struers Metallography / Hardness Tester / Duramin 600

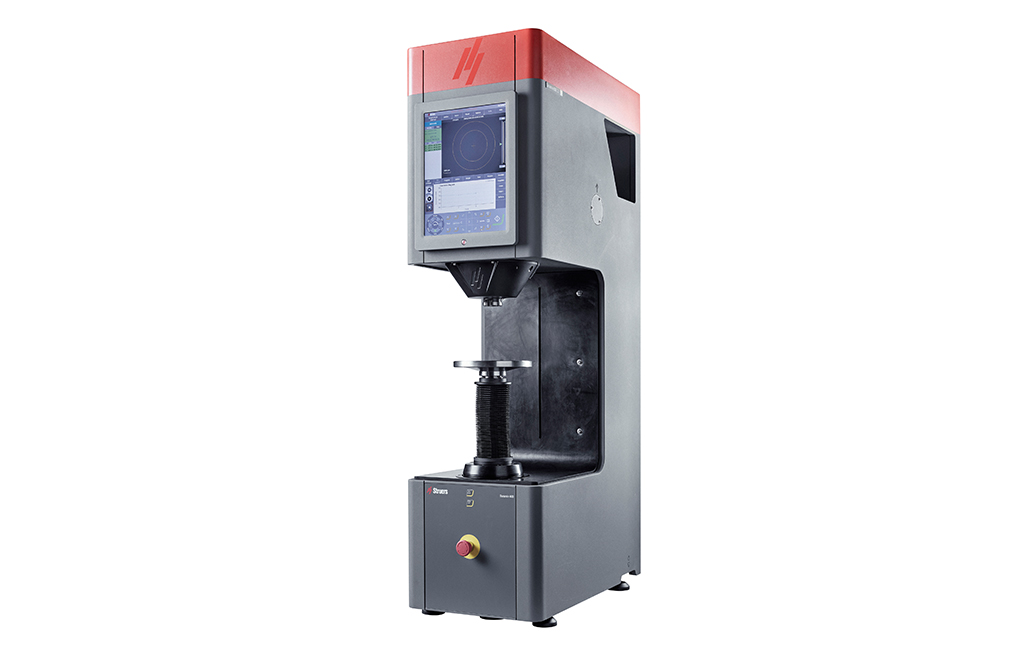

Duramin-600 M1
| c/n | : 06666101 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 9.8 N to 2450 N (1-250 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | 1 kgf - 250 kg |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| ANVILS AND TURRETS | Anvil size (mm) | : | Ø 80 |
| Vertical capacity (mm) | : | 330 | |
| Throat depth (mm) | : | 260 | |
| Motorized Z-axis | : | No | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 430 kg | |
| CAMERAS AND OPTICS | Evaluation camera resolution | : | 5 MP |
| Auto illumination | : | Yes | |
| SOFTWARE AND MODULES | Report editor | : | Yes |
| Data export | : | Yes | |

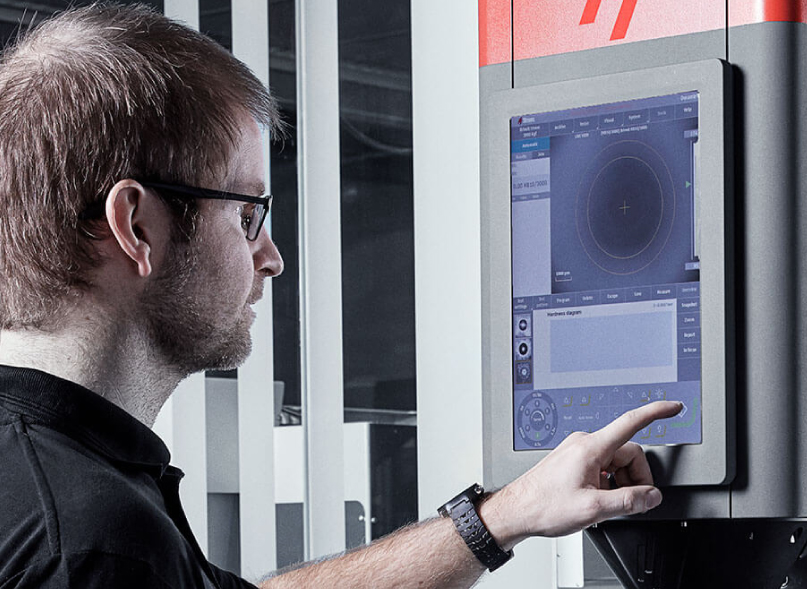

| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-600 M2
| c/n | : 06666102 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 29.4 N to 7360 N (3-750 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | 3 kgf - 750 kgf |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| ANVILS AND TURRETS | Anvil size (mm) | : | Ø 80 |
| Vertical capacity (mm) | : | 330 | |
| Throat depth (mm) | : | 260 | |
| Motorized Z-axis | : | No | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 430 kg | |
| CAMERAS AND OPTICS | Evaluation camera resolution | : | 5 MP |
| Auto illumination | : | Yes | |
| SOFTWARE AND MODULES | Report editor | : | Yes |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-600 M3
| c/n | : 06666103 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 49.1 N to 29430 N (5-3000 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | 5 kgf - 3000 kgf |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| ANVILS AND TURRETS | Anvil size (mm) | : | Ø 80 |
| Vertical capacity (mm) | : | 330 | |
| Throat depth (mm) | : | 260 | |
| Motorized Z-axis | : | No | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 430 kg | |
| CAMERAS AND OPTICS | Evaluation camera resolution | : | 5 MP |
| Auto illumination | : | Yes | |
| SOFTWARE AND MODULES | Report editor | : | Yes |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |

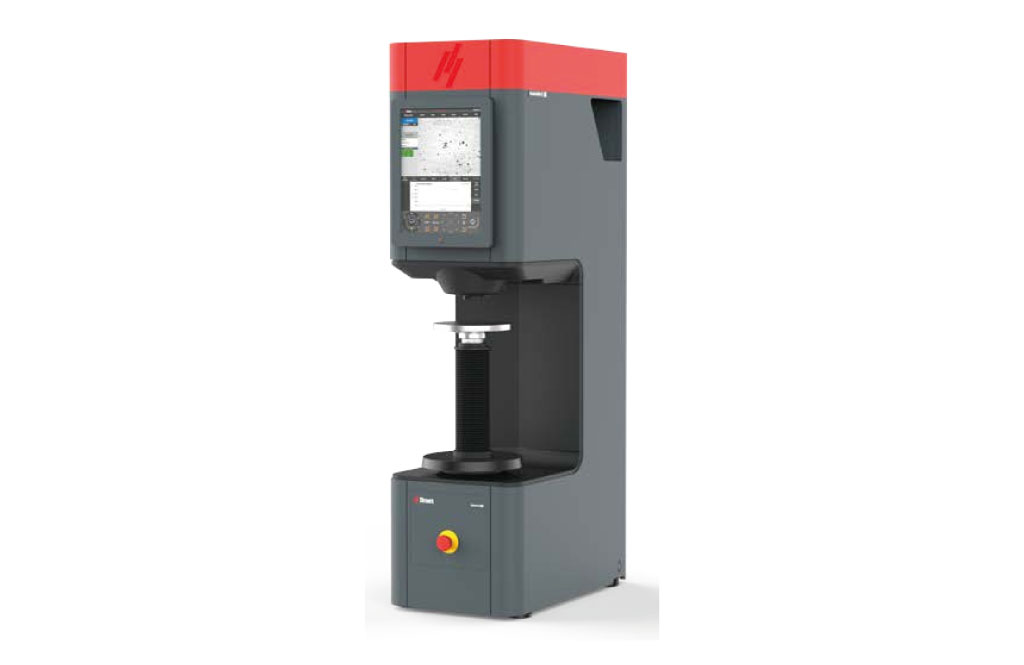

Duramin-600 Z1
| c/n | : 06666111 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 9.8 N to 2450 N (1-250 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | 1 kgf - 250 kg |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| ANVILS AND TURRETS | Anvil size (mm) | : | Ø 80 |
| Vertical capacity (mm) | : | 330 | |
| Throat depth (mm) | : | 260 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 430 kg | |
| CAMERAS AND OPTICS | Evaluation camera resolution | : | 5 MP |
| Auto illumination | : | Yes | |
| SOFTWARE AND MODULES | Report editor | : | Yes |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-600 Z2
| c/n | : 06666112 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 29.4 N to 7360 N (3-750 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.

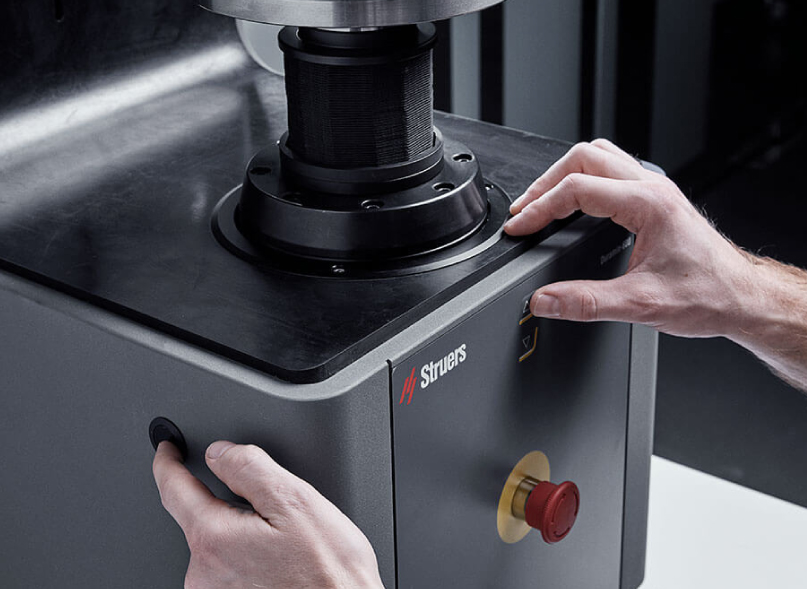

Motorized adjustment of anvil height, 80 mm dia.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
3 kgf - 750 kgf | |
| Vickers capability | Yes | ||
| Knoop capability | Yes | ||
| Brinell capabilty | Yes | ||
| Rockwell capability | Yes | ||
| HVT/HVB | Yes | ||
| ANVILS AND TURRETS | Anvil size (mm) | Ø 80 | |
| Vertical capacity (mm) | 330 | ||
| Throat depth (mm) | 260 | ||
| Motorized Z-axis | Yes | ||
| Motorized turret | Yes | ||
| Turret positions | 6 | ||
| Anti-collision protection | Yes | ||
| Machine weight | 430 kg | ||
| CAMERAS AND OPTICS | Evaluation camera resolution | 5 MP | |
| Auto illumination | Yes | ||
| SOFTWARE AND MODULES | Report editor | Yes | |
| Data export | Yes | ||
| INTERFACES AND CONNECTIVITY | Operation | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional | |
| Communication Ports | HDMI, VGA, RJ45, WLAN, USB, RS232 | ||
| WiFi | Yes | ||
| Blue tooth | Optional |
Duramin-600 Z3
| c/n | : 06666113 |
Universal hardness tester with load-cell for automatic hardness testing of Brinell, Vickers, Rockwell and Knoop.
With extended load range 49.1 N to 29430 N (5-3000 kgf).
With 6-position automatic turret, automatic illumination adjustment, auto focus and automatic image evaluation.
Motorized adjustment of anvil height, 80 mm dia.
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
5 kgf - 3000 kgf | |
| Vickers capability | Yes | ||
| Knoop capability | Yes | ||
| Brinell capabilty | Yes | ||
| Rockwell capability | Yes | ||
| HVT/HVB | Yes | ||
| ANVILS AND TURRETS | Anvil size (mm) | Ø 80 | |
| Vertical capacity (mm) | 330 | ||
| Throat depth (mm) | 260 | ||
| Motorized Z-axis | Yes | ||
| Motorized turret | Yes | ||
| Turret positions | 6 | ||
| Anti-collision protection | Yes | ||
| Machine weight | 430 kg | ||
| CAMERAS AND OPTICS | Evaluation camera resolution | 5 MP | |
| Auto illumination | Yes | ||
| SOFTWARE AND MODULES | Report editor | Yes | |
| Data export | Yes | ||
| INTERFACES AND CONNECTIVITY | Operation | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional | |
| Communication Ports | HDMI, VGA, RJ45, WLAN, USB, RS232 | ||
| WiFi | Yes | ||
| Blue tooth | Optional |
