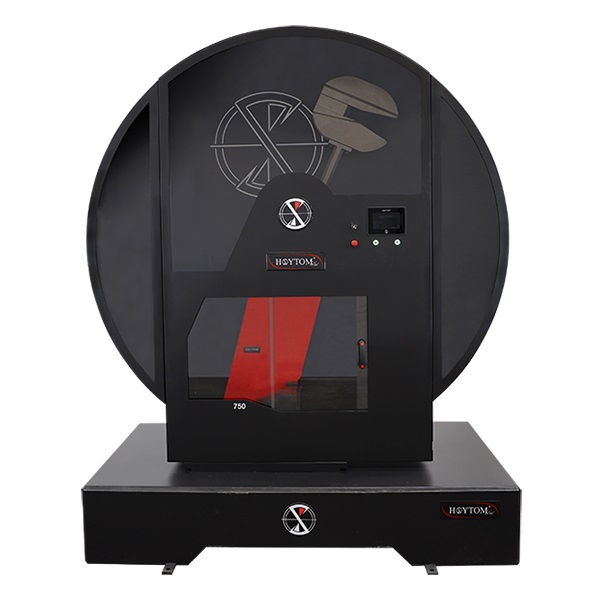

Charpy or Izod
Produk / Hoytom Pendulum Impact Tester / Hoytom Pendulum Impact Tester / Charpy or Izod
ISO Charpy
Specifications
| Capacity | Up to 25 J | |
| Pendulum Length (mm) | Up to 5J | From 5J |
| 230 | 340 | |
| Maximum Impact Speed (m/s) | Up to 5J | From 5J |
| 2.9 | 3.46 | |
| Resolution (Joules) | 0.01 | |
| Dimensions (WxDxH) (mm) | 1000x600x1000 | |
| Optional Table Dimensions (W) (mm) | +700 | |
| Net Weight (kg) | 200/300 | |
| Power (V) | 110-220 | |
ASTM Charpy
Specifications
| Capacity | Up to 25 J | |
| Pendulum Length (mm) | 340 | |
| Maximum Impact Speed (m/s) | 3.46 | |
| Resolution (Joules) | 0.01 | |
| Dimensions (WxDxH) (mm) | 1000x600x1000 | |
| Optional Table Dimensions (W) (mm) | +700 | |
| Net Weight (kg) | 200/300 | |
| Power (V) | 110-220 | |
ISO/ASTM Izod
Specifications
| Capacity | Up to 25 J | |
| Pendulum Length (mm) | 340 | |
| Maximum Impact Speed (m/s) | 3.46 | |
| Resolution (Joules) | 0.01 | |
| Dimensions (WxDxH) (mm) | 1000x600x1000 | |
| Optional Table Dimensions (W) (mm) | +700 | |
| Net Weight (kg) | 200/300 | |
| Power (V) | 110-220 | |
