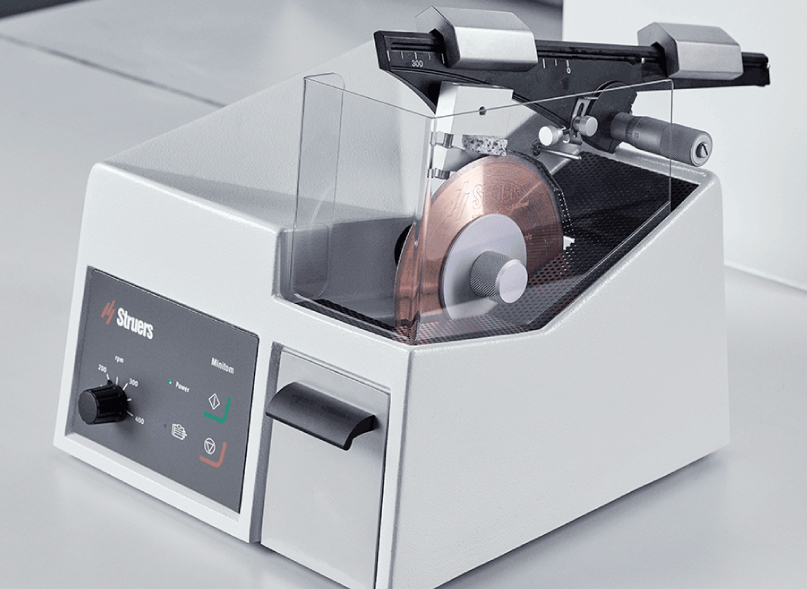

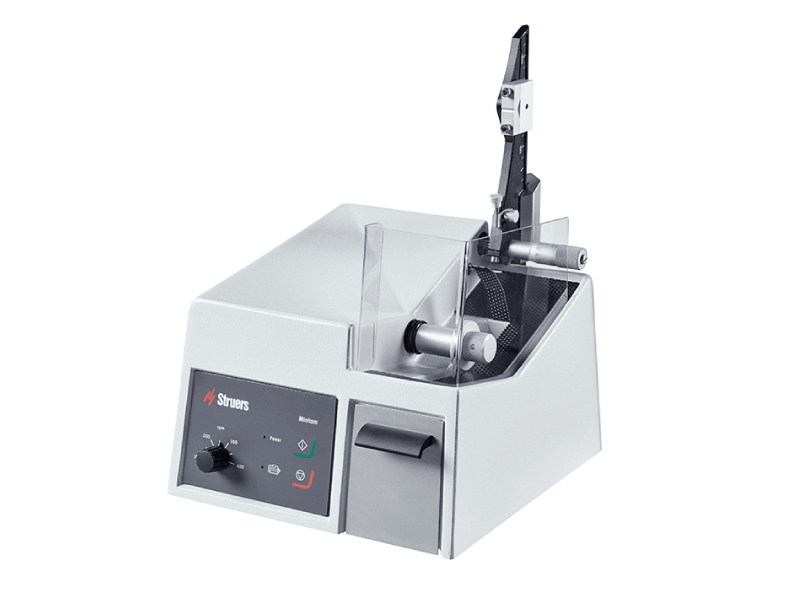

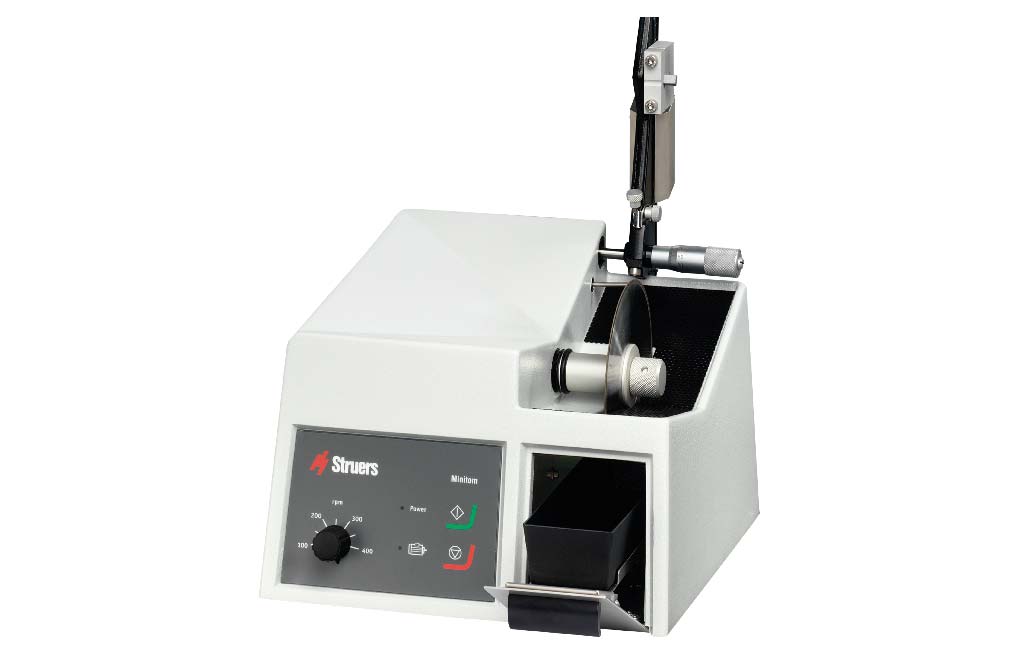

Minitom
| c/n | : 04436216 |
Precision cut-off machine for sectioning small specimens
Specifications
| Cutting wheel | : CBN or Diamond | |
| Cut-off wheel size | : 75 - 127 mm / 3 - 5" | |
| Centre hole | : 12.7 mm / 0.5" | |
| Power | Voltage | : 100 - 240 V / 50 - 60 Hz |
| Output | : 38 W | |
| Motor Shaft | Speed | : 100 - 420 rpm |
| Diameter | : 12.7 mm / 0.5" | |
| Wheel Diameter | : 100 - 127 mm / 4 - 5" | |
| Specimen Holder Arm | Balance specimen holder with workpiece | : Up to 200 g weight |
| Cutting Pressure | : 0 - 350 g | |
| Axial Movement | : 0 - 25 mm | |
| Coolant Tank | Volume | : 250 ml |
| Dimensions and Weight | Width | : 280 mm |
| Depth | : 400 mm | |
| Height | : 400 mm | |
| Weight | : 8 kg |
