Duramin 170
Produk / Struers Metallography / Hardness Tester / Duramin 170
Duramin-170
| c/n | : 06646101 |

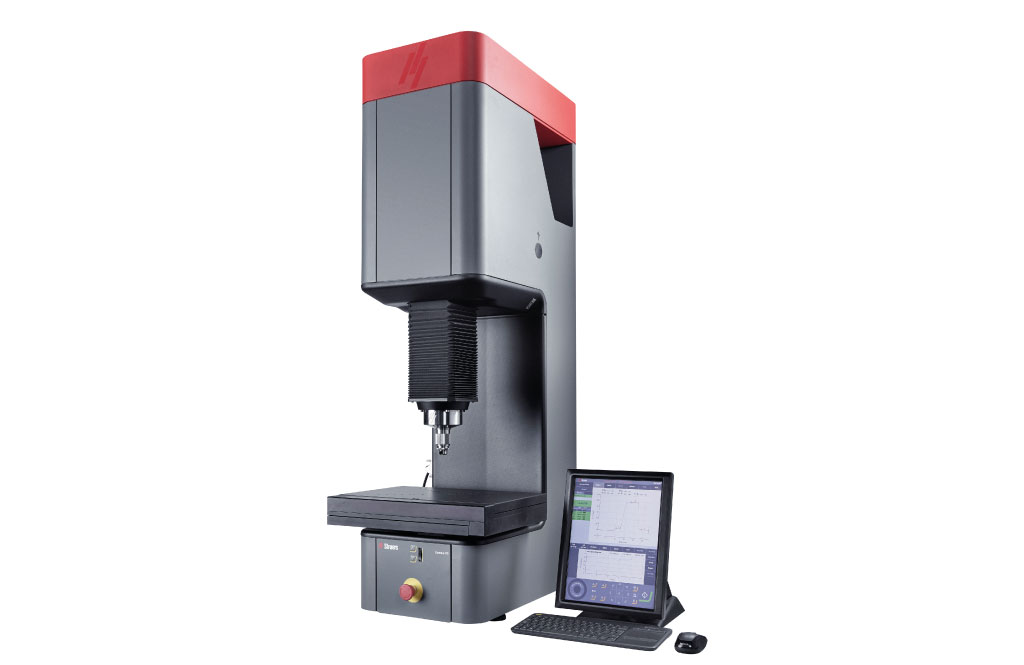

Load cell based Rockwell hardness tester with 15" touch screen.
With fixed test anvil Ø80 mm, motorized test head and fully automatic test cycle.
Suitable for all Rockwell methods, ball indentation hardness, HBT and HVT. Test load range: 1-250 kgf (9.8 – 2450 N).
Specifications
| LOADS AND APPLICATIONS | Load range (main loads) | : | 1-250 kgf |
| Vickers capability | : | No | |
| Knoop capability | : | No | |
| Brinell capabilty | : | No | |
| Rockwell capability | : | Yes, all scales | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage / Anvil | : | Manual |
| XY-stage or anvil size (mm) | : | Ø 80 | |
| XY-stage stroke, max (mm) | : | - | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Turret positions | : | 1 | |
| Machine weight | : | 250 kg | |
| SOFTWARE AND MODULES | Jominy module | : | No |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-170A
| c/n | : 06646111 |

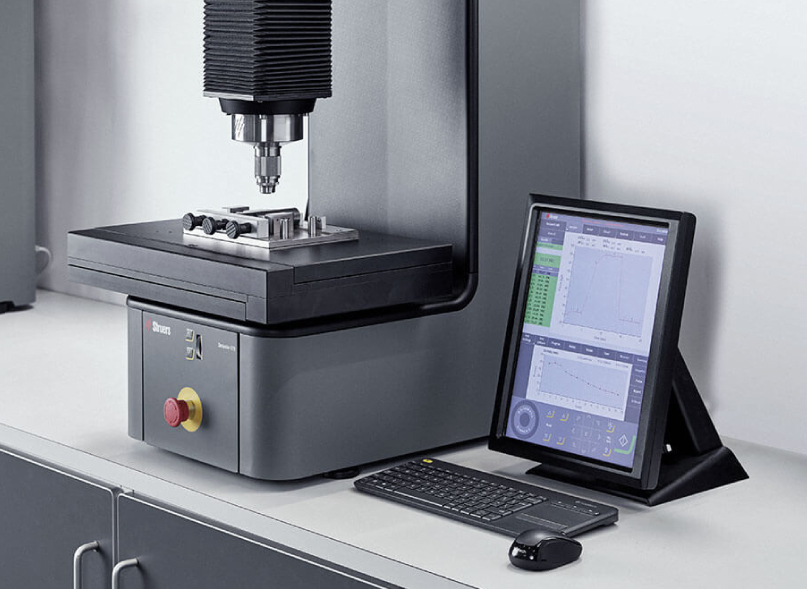

Load cell based full automatic Rockwell hardness tester with 15” touch screen.
With motorized XY-table (size 300 x 225 mm, stroke 170 x 120 mm), motorized test head and fully automatic test cycle.
Suitable for all Rockwell methods, ball indentation hardness, HBT and HVT. Test load range: 1-250 kgf (9.8 – 2450 N).
Specifications
| LOADS AND APPLICATIONS | Load range (main loads) | : | 1-250 kgf |
| Vickers capability | : | No | |
| Knoop capability | : | No | |
| Brinell capabilty | : | No | |
| Rockwell capability | : | Yes, all scales | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage / Anvil | : | Automatic |
| XY-stage or anvil size (mm) | : | 307x207 | |
| XY-stage stroke, max (mm) | : | 170x120 | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Turret positions | : | 1 | |
| Machine weight | : | 255 kg | |
| SOFTWARE AND MODULES | Jominy module | : | Yes |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15” touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
