| LOADS AND APPLICATIONS |
Load range (main loads) |
: |
62.5 kgf - 3000 kgf |
| Vickers capability |
: |
No |
| Knoop capability |
: |
No |
| Brinell capabilty |
; |
Yes |
| Rockwell capability |
: |
No |
| HVT/HVB |
: |
No |
| ANVILS AND TURRETS |
Anvil size (mm) |
: |
Ø 200 |
| Vertical capacity (mm) |
: |
190 |
| Throat depth (mm) |
: |
220 |
| Turret positions |
: |
1 |
| Test cycle |
: |
130 kg |
| Anvil illumination |
: |
5 MP |

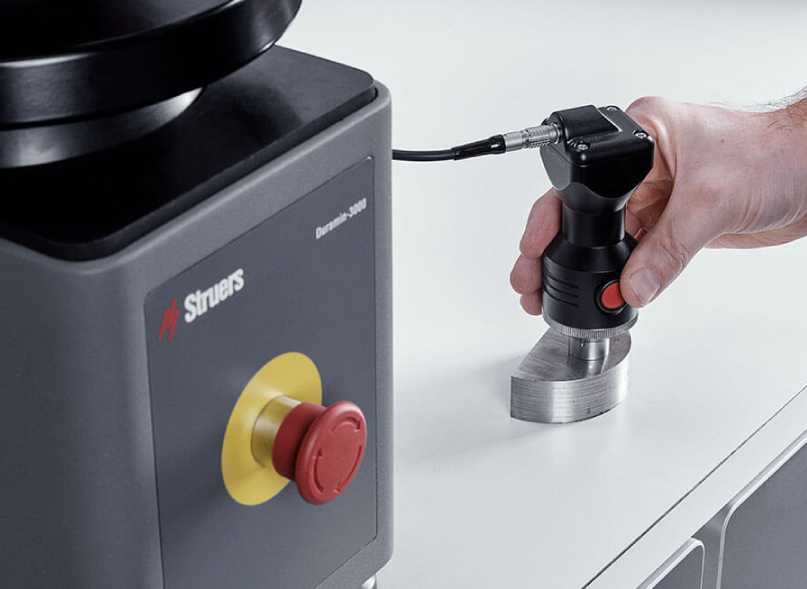

| Machine weight |
; |
Automatic via handheld camera |
| SOFTWARE AND MODULES |
Statistics |
: |
Yes |
| Data export |
: |
Yes |
| INTERFACES AND CONNECTIVITY |
Operation |
: |
Embedded Windows 7 PC with 6.5” touch screen. Mouse and keyboard operation is optional |
| Communication Ports |
: |
HDMI, VGA, RJ45, WLAN, USB, RS232 |
| |
WiFi |
: |
Yes |
| |
Blue tooth |
: |
Optional |
