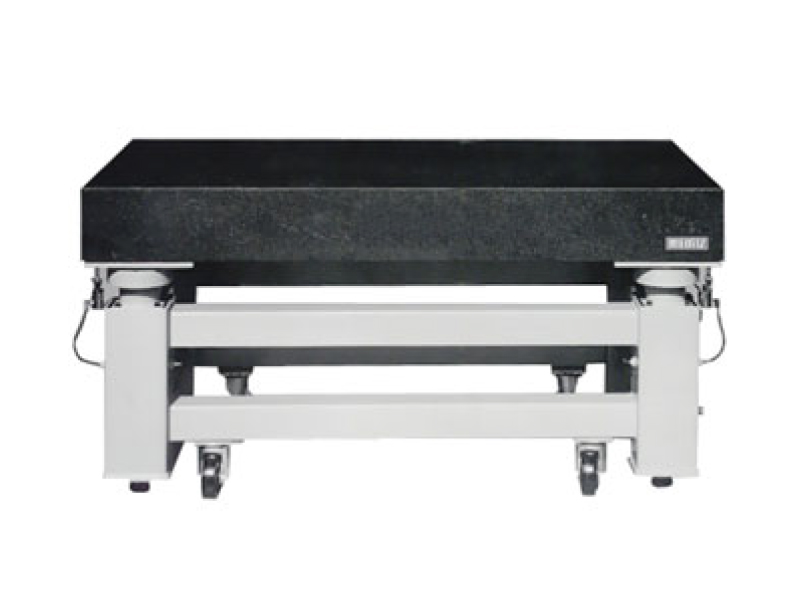

AG Series
Produk / Meiritz Anti Vibration System / AG Series / AG Series
AG-1007
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 1000x750 |
| Table thickness (mm) | 150 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 500 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
AG-1209
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 1200x900 |
| Table thickness (mm) | 200 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 800 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
AG-1510
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 1500x1000 |
| Table thickness (mm) | 200 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 1.05 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
AG-1809
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 1800x900 |
| Table thickness (mm) | 200 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 1.1 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
AG-2010
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 2000x1000 |
| Table thickness (mm) | 250 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 1.7 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
AG-2412
| Natural frequency | Vertical:1.5Hz Horizontal:1.8Hz |
| Vibration isolation method | Diaphragm air spring |
| Damping method | Air damping by orifices |
| Leveling method | Automatic |
| Table dimensions (mm) | 2400x1200 |
| Table thickness (mm) | 300 |
| Table material | Granite |
| Machine height (mm) | 800 |
| Machine weight (kg) | 2.8 |
| Load weight (kg) | 300 (It is possible to increase or decrease if you need.) |
| Air supply | 0.35-0.70MPa |
