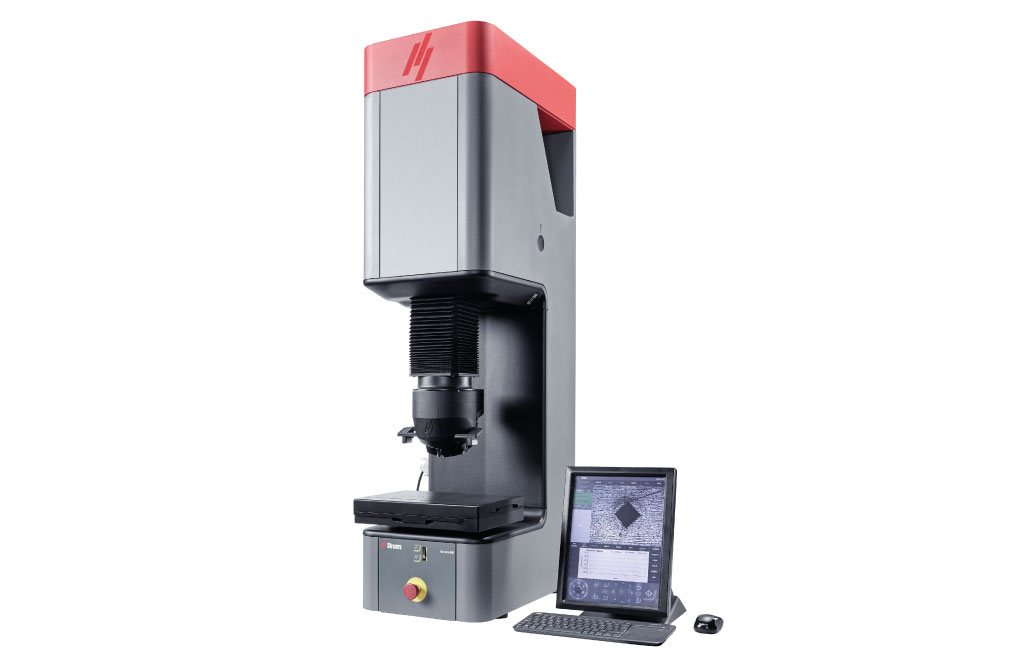

Duramin 650
Produk / Struers Metallography / Hardness Tester / Duramin 650
Duramin-650 M1
| c/n | : 06636101 |
Specifications
| LOADS AND APPLICATIONS | Model | : | M1 |
| Load range (main loads) | : | 1 kgf - 250 kg | |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Manual |
| XY-stage or anvil size (mm) | : | ø 80 | |
| XY-stage stroke, max (mm) | : | - | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 255 kg | |
| CAMERAS AND OPTICS | Overview camera | : | No |
| Overview cam FOV (mm) | : | - | |
| Overview camera resolution | : | - | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | - | |
| Dual view | : | No | |
| SOFTWARE AND MODULES | Jominy module | : | No |
| CHD measurement | : | Optional | |
| Edge detection | : | No | |
| Mapping | : | No | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-650 M2
| c/n | : 06636102 |
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | M2 |
| : | 3 kgf - 750 kgf | ||
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Manual |
| XY-stage or anvil size (mm) | : | ø 80 | |
| XY-stage stroke, max (mm) | : | - | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 255 kg | |
| CAMERAS AND OPTICS | Overview camera | : | No |
| Overview cam FOV (mm) | : | - | |
| Overview camera resolution | : | - | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | - | |
| Dual view | : | No | |
| SOFTWARE AND MODULES | Jominy module | : | No |
| CHD measurement | : | Optional | |
| Edge detection | : | No | |
| Mapping | : | No | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-650 M3
| c/n | : 06636103 |
Specifications
| LOADS AND APPLICATIONS | Model Load range (main loads) |
: | M3 |
| : | 5 kgf - 3000 kgf | ||
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Manual |
| XY-stage or anvil size (mm) | : | ø 80 | |
| XY-stage stroke, max (mm) | : | - | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 6 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 255 kg | |
| CAMERAS AND OPTICS | Overview camera | : | No |
| Overview cam FOV (mm) | : | - | |
| Overview camera resolution | : | - | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | - | |
| Dual view | : | No | |
| SOFTWARE AND MODULES | Jominy module | : | No |
| CHD measurement | : | Optional | |
| Edge detection | : | No | |
| Mapping | : | No | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-650 AC1
| c/n | : 06636111 |
Specifications
| LOADS AND APPLICATIONS | Model | : | AC1 |
| Load range (main loads) | : | 1 kgf - 250 kg | |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Automatic |
| XY-stage or anvil size (mm) | : | 350x265 | |
| XY-stage stroke, max (mm) | : | 220x160 | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 7 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 260 kg | |
| CAMERAS AND OPTICS | Overview camera | : | Yes |
| Overview cam FOV (mm) | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | Yes | |
| Dual view | : | Yes | |
| SOFTWARE AND MODULES | Jominy module | : | Yes |
| CHD measurement | : | Optional | |
| Edge detection | : | Optional | |
| Mapping | : | Optional | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-650 AC2
| c/n | : 06636112 |
Specifications
| LOADS AND APPLICATIONS | Model | : | AC2 |
| Load range (main loads) | : | 3 kgf - 750 kgf | |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Automatic |
| XY-stage or anvil size (mm) | : | 390x262 | |
| XY-stage stroke, max (mm) | : | 250x160 | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 7 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 260 kg | |
| CAMERAS AND OPTICS | Overview camera | : | Yes |
| Overview cam FOV (mm) | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | Yes | |
| Dual view | : | Yes | |
| SOFTWARE AND MODULES | Jominy module | : | Yes |
| CHD measurement | : | Optional | |
| Edge detection | : | Optional | |
| Mapping | : | Optional | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
Duramin-650 AC3
| c/n | : 06636113 |
Specifications
| LOADS AND APPLICATIONS | Model | : | AC3 |
| Load range (main loads) | : | 5 kgf - 3000 kgf | |
| Vickers capability | : | Yes | |
| Knoop capability | : | Yes | |
| Brinell capabilty | : | Yes | |
| Rockwell capability | : | Yes | |
| HVT/HVB | : | Yes | |
| STAGES AND TURRETS | XY-stage | : | Automatic |
| XY-stage or anvil size (mm) | : | 390x262 | |
| XY-stage stroke, max (mm) | : | 250x160 | |
| Vertical capacity (mm) | : | 300 | |
| Throat depth (mm) | : | 220 | |
| Motorized Z-axis | : | Yes | |
| Motorized turret | : | Yes | |
| Turret positions | : | 7 | |
| Anti-collision protection | : | Yes | |
| Machine weight | : | 260 kg | |
| CAMERAS AND OPTICS | Overview camera | : | Yes |
| Overview cam FOV (mm) | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation camera resolution | : | 5 MP | |
| Auto illumination | : | Yes | |
| Stage illumination | : | Yes | |
| Laser or LED guider | : | Yes | |
| Dual view | : | Yes | |
| SOFTWARE AND MODULES | Jominy module | : | Yes |
| CHD measurement | : | Optional | |
| Edge detection | : | Optional | |
| Mapping | : | Optional | |
| Welding module | : | Optional | |
| Kc fracture meas. | : | Optional | |
| Report editor | : | Yes | |
| Data export | : | Yes | |
| INTERFACES AND CONNECTIVITY | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Blue tooth | : | Optional |
