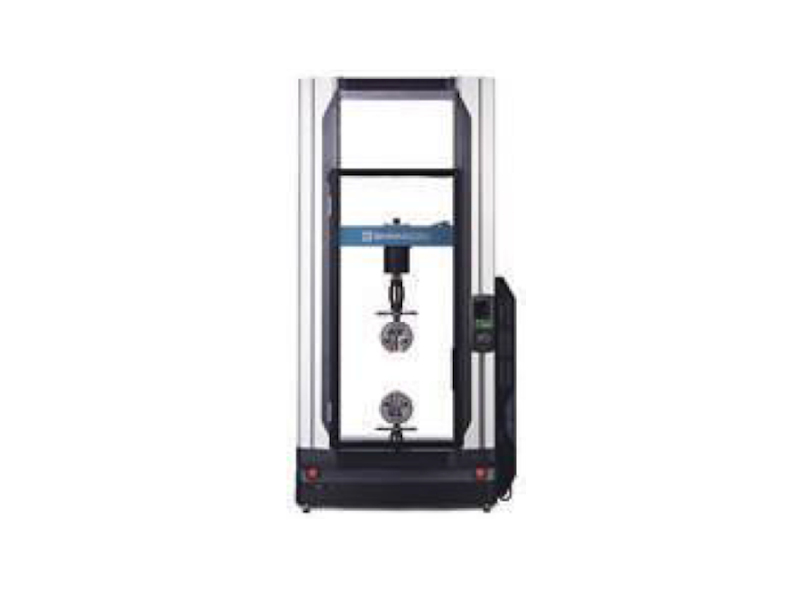

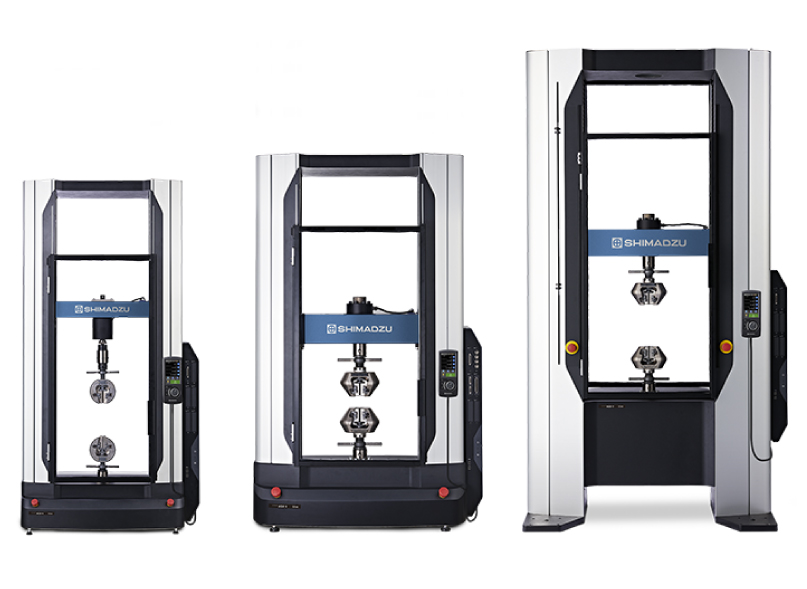

AGX-10kNV2D
Specifications
| Max. Loading Capacity | : | 10 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 | |||||
| Class 0.5, BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/2000 to 1/1000 of the load cell rated capacity) | |||||
| Within ±0.5 % of the indicated test force | |||||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/1000 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.0005~3000 mm/min | |||
| Maximum Crosshead Return Speed | : | 3000 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 12.5 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 200 to 1150 (0 to 550) | ||
| +250 mm Extension | : | 200 to 1375 (0 to 775 mm) | |||
| +500 mm Extension | : | 200 to 1600 (0 to 1000 mm) | |||
| +750 mm Extension | : | — | |||
| Effective Test Width | : | 420 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 60 kN/mm min. | ||
| Direction of Compression | 60 kN/mm min. | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||

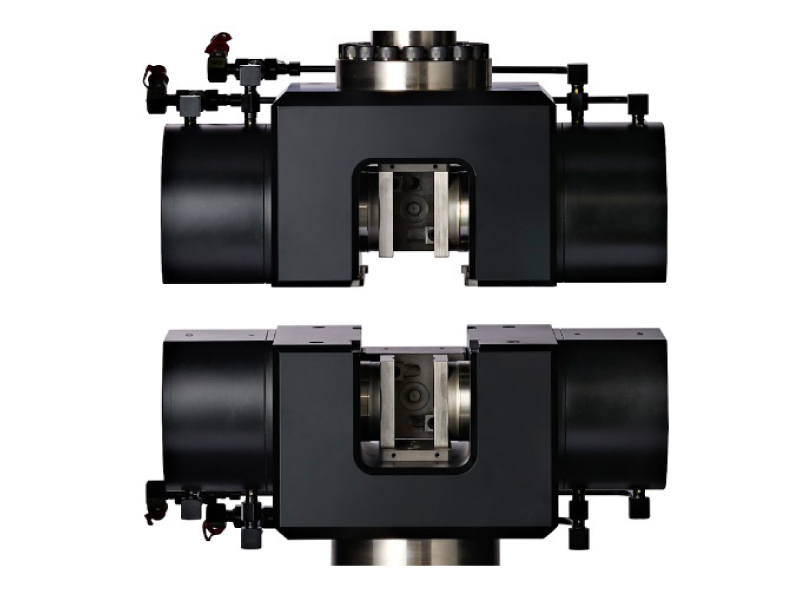

| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 10 N/20 N/50 N/100 N/500 N/1 kN/5 kN/10 kN | |||
| Dimensions*5 | Standard Height | : | W 798 × D 515 × H 1582 mm | ||
| +250 mm Extension | : | W 798 × D 515 × H 1832 mm | |||
| +500 mm Extension | : | W 798 × D 515 × H 2082 mm | |||
| +750 mm Extension | : | — | |||
| Weight | Standard Height | 100 V Model | : | 220 kg | |
| 200 V Model | : | 220 kg | |||
| 400 V Model | : | — | |||
| +250 Extension | 100 V Model | : | 240 kg | ||
| 200 V Model | : | 230 kg | |||
| 400 V Model | : | — | |||
| +500 Extension | 100 V Model | : | 250 kg | ||
| 200 V Model | : | 240 kg | |||
| 400 V Model | : | — | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | — | |||
| 400 V Model | : | — | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | 1.5 kVA/15 A | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | 2.0 kVA/10 A | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | — | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | — | |||
| (3-Phase,400 to XXX V) | |||||

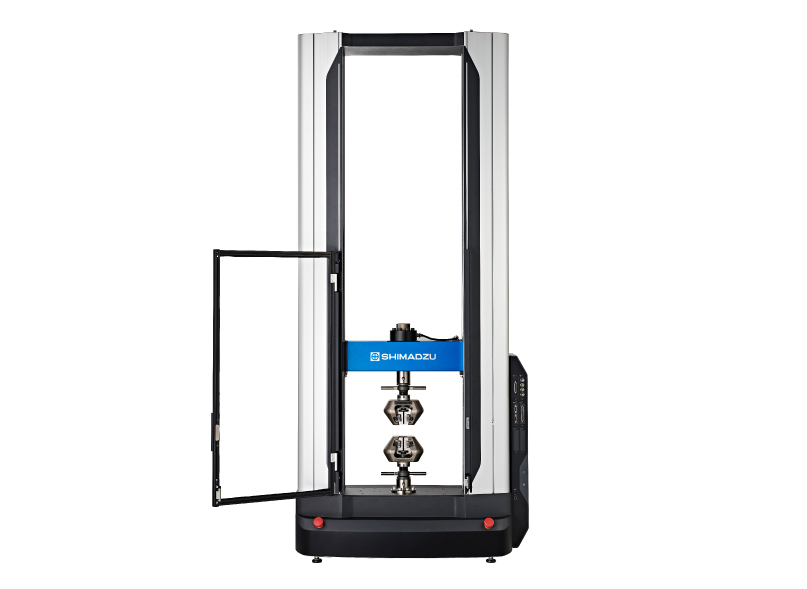

AGX-20/50kNV2D
Specifications
| Max. Loading Capacity | : | 50 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 | |||||
| Class 0.5, BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/2000 to 1/1000 of the load cell rated capacity) | |||||
| Within ±0.5 % of the indicated test force | |||||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/1000 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.0005~1500 mm/min | |||
| Maximum Crosshead Return Speed | : | 2000 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 8.33 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 200 to 1060 (20 kN:0 to 750 mm, 50 kN:0 to 690 mm) | ||
| +250 mm Extension | : | 200 to 1285 (20 kN:0 to 975 mm, 50 kN:0 to 915 mm) | |||
| +500 mm Extension | : | 200 to 1510 (20 kN:0 to 1200 mm, 50 kN:0 to 1140 mm) | |||
| +750 mm Extension | : | — | |||
| Effective Test Width | : | 500 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 180 kN/mm min. | ||
| Direction of Compression | 180 kN/mm min. | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||
| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 20 kN/50 kN | |||
| Dimensions*5 | Standard Height | : | W 975 × D 579 × H 1708 mm | ||
| +250 mm Extension | : | W 975 × D 579 × H 1958 mm | |||
| +500 mm Extension | : | W 975 × D 579 × H 2208 mm | |||
| +750 mm Extension | : | — | |||
| Weight | Standard Height | 100 V Model | : | — | |
| 200 V Model | : | 420 kg | |||
| 400 V Model | : | — | |||
| +250 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 440 kg | |||
| 400 V Model | : | — | |||
| +500 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 460 kg | |||
| 400 V Model | : | — | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | — | |||
| 400 V Model | : | — | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | — | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | 5.5 kVA/30 A | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | — | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | — | |||
| (3-Phase,400 to XXX V) | |||||

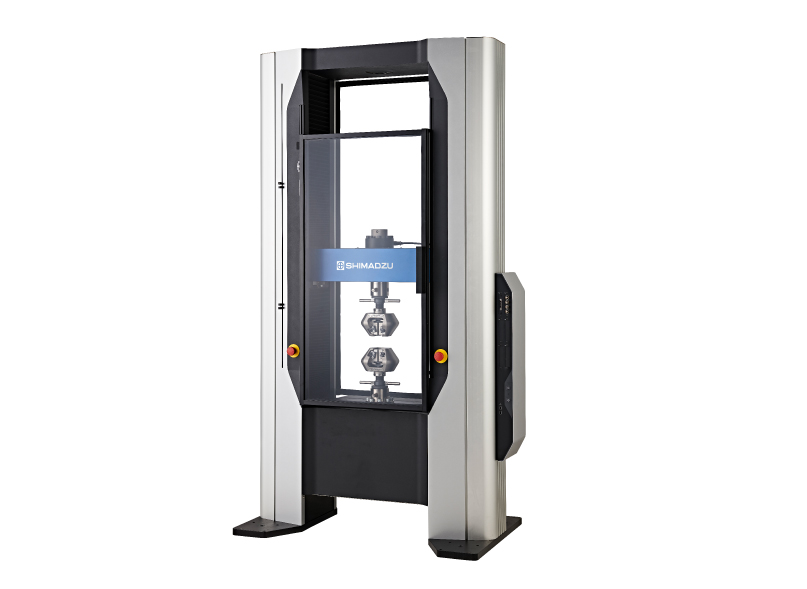

AGX-20/50kNV2
Specifications
| Max. Loading Capacity | : | 50 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 | |||||
| Class 0.5, BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/2000 to 1/1000 of the load cell rated capacity) | |||||
| Within ±0.5 % of the indicated test force | |||||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/1000 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.00005~1500 mm/min | |||
| Maximum Crosshead Return Speed | : | 2000 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 8.33 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 250 to 1265 (20 kN:0 to 860 mm, 50 kN:0 to 800 mm) | ||
| +250 mm Extension | : | 250 to 1490 (20 kN:0 to 1085 mm, 50 kN:0 to 1025 mm) | |||
| +500 mm Extension | : | 250 to 1715 (20 kN:0 to 1310 mm, 50 kN:0 to 1250 mm) | |||
| +750 mm Extension | : | 250 to 1940 (20 kN:0 to 1535 mm, 50 kN:0 to 1475 mm) | |||
| Effective Test Width | : | 600 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 180 kN/mm min. | ||
| Direction of Compression | 180 kN/mm min. | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||
| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 20 kN/50 kN | |||
| Dimensions*5 | Standard Height | : | W 1206 × D 765 × H 2170 mm | ||
| +250 mm Extension | : | W 1206 × D 765 × H 2420 mm | |||
| +500 mm Extension | : | W 1206 × D 765 × H 2670 mm | |||
| +750 mm Extension | : | W 1206 × D 765 × H 2920 mm | |||
| Weight | Standard Height | 100 V Model | : | — | |
| 200 V Model | : | 670 kg | |||
| 400 V Model | : | 680 kg | |||
| +250 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 690 kg | |||
| 400 V Model | : | 690 kg | |||
| +500 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 700 kg | |||
| 400 V Model | : | 710 kg | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 720 kg | |||
| 400 V Model | : | 730 kg | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | — | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | — | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | 4.5 kVA/15 A | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | 4.0 kVA/10 A | |||
| (3-Phase,400 to XXX V) | |||||

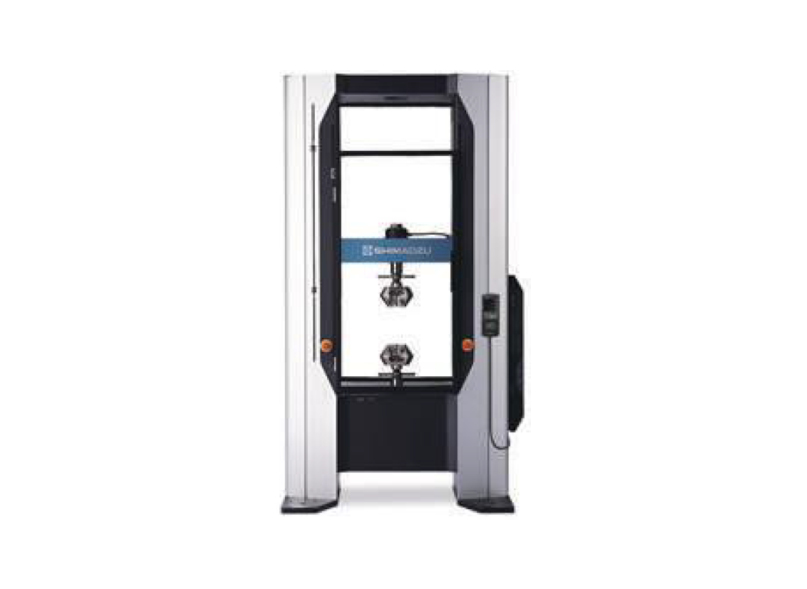

AGX-100kNV2
Specifications
| Max. Loading Capacity | : | 100 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 | |||||
| Class 0.5, BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/2000 to 1/1000 of the load cell rated capacity) | |||||
| Within ±0.5 % of the indicated test force | |||||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/1000 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.0005 to 1500 mm/min | |||
| Maximum Crosshead Return Speed | : | 1800 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 8.33 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 250 to 1250 (0 to 760) | ||
| +250 mm Extension | : | 250 to 1475 (0 to 985) | |||
| +500 mm Extension | : | 250 to 1700 (0 to 1210) | |||
| +750 mm Extension | : | 250 to 1925 (0 to 1435) | |||
| Effective Test Width | : | 600 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 300 kN/mm min | ||
| Direction of Compression | 300 kN/mm min | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||
| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 100 kN | |||
| Dimensions*5 | Standard Height | : | W 1206 × D 765 × H 2170 mm | ||
| +250 mm Extension | : | W 1206 × D 765 × H 2420 mm | |||
| +500 mm Extension | : | W 1206 × D 765 × H 2670 mm | |||
| +750 mm Extension | : | W 1206 × D 765 × H 2920 mm | |||
| Weight | Standard Height | 100 V Model | : | — | |
| 200 V Model | : | 840 kg | |||
| 400 V Model | : | 850 kg | |||
| +250 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 860 kg | |||
| 400 V Model | : | 870 kg | |||
| +500 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 880 kg | |||
| 400 V Model | : | 890 kg | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 910 kg | |||
| 400 V Model | : | 910 kg | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | — | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | — | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | 6.5 kVA/20 A | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | 5.0 kVA/10 A | |||
| (3-Phase,400 to XXX V) | |||||
AGX-300kNV2
Specifications
| Max. Loading Capacity | : | 300 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 | |||||
| Class 0.5, BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/2000 to 1/1000 of the load cell rated capacity) | |||||
| Within ±0.5 % of the indicated test force | |||||
| (in a range from 1/1000 to 1/100 of the load cell rated capacity) | |||||
| Within ±0.3 % of the indicated test force | |||||
| (in a range from 1/100 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/1000 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, | |||||
| BS 1610 Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.00005 to 720 mm/min | |||
| Maximum Crosshead Return Speed | : | 720 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 3.33 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 250 to 1440 (0 to 630) | ||
| +250 mm Extension | : | 250 to 1665 (0 to 855) | |||
| +500 mm Extension | : | 250 to 1890 (0 to 1080) | |||
| +750 mm Extension | : | 250 to 2115 (0 to 1305) | |||
| Effective Test Width | : | 600 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 400 kN/mm min. | ||
| Direction of Compression | 400 kN/mm min. | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||
| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 300 kN | |||
| Dimensions*5 | Standard Height | : | W 1206 × D 765 × H 2420 mm | ||
| +250 mm Extension | : | W 1206 × D 765 × H 2670 mm | |||
| +500 mm Extension | : | W 1206 × D 765 × H 2920 mm | |||
| +750 mm Extension | : | W 1206 × D 765 × H 3170 mm | |||
| Weight | Standard Height | 100 V Model | : | — | |
| 200 V Model | : | 1020 kg | |||
| 400 V Model | : | 1030 kg | |||
| +250 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 1040 kg | |||
| 400 V Model | : | 1050 kg | |||
| +500 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 1070 kg | |||
| 400 V Model | : | 1080 kg | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 1090 kg | |||
| 400 V Model | : | 1110 kg | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | — | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | — | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | 7.5 kVA/30 A | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | 6.5 kVA/15 A | |||
| (3-Phase,400 to XXX V) | |||||
AGX-600kNV2
Specifications
| Max. Loading Capacity | : | 600 kN | |||
| Loading Method | : | AC servomotor drive | |||
| Test Force Measuring Range*1 | High-Accuracy Type | : | Within ±0.5 % of the indicated test force | ||
| (in a range from 1/500 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, ISO 7500-1 Class 0.5, | |||||
| BS 1610 Class 0.5, DIN 51221 Class 0.5, and ASTM E4 | |||||
| Wide Ranging Type | : | — | |||
| Standard-Accuracy Type | : | Within ±1 % of the indicated test force | |||
| (in a range from 1/500 to 1/1 of the load cell rated capacity) | |||||
| Compatible with JIS B7721 Class 1, EN 10002-2 Grade 1, ISO 7500-1 Class 1, BS 1610 | |||||
| Class 1, DIN 51221 Class 1, and ASTM E4 | |||||
| Crosshead Speed Range*2 | : | 0.00005 to 540 mm/min | |||
| Maximum Crosshead Return Speed | : | 540 mm/min | |||
| Crosshead Speed Accuracy | : | ±0.1 % | |||
| Crosshead Speed and Permitted Test Force | : | Up to the maximum load capacity for all speed ranges | |||
| Crosshead Position Detection | Measurement System | : | Battery-less multi-turn absolute encoder | ||
| Positional Accuracy | : | Within ±0.05 % of the indicated value, but ±0.01 mm when the indicated value is below 20 mm | |||
| Crosshead Position Control Resolution | : | 2.50 nm | |||
| Crosshead-Table Clearance (mm) (Tensile Stroke)*3 | Standard Height | : | 250 to 1650 (0 to 850) | ||
| +250 mm Extension | : | 250 to 1875 (0 to 1075) | |||
| +500 mm Extension | : | 250 (0 to 1300) | |||
| +750 mm Extension | : | 250 to 2325 (0 to 1525) | |||
| Effective Test Width | : | 790 mm | |||
| Sampling Rate | : | 10 kHz max. | |||
| Frame Rigidity | Direction of Tension | : | 700 kN/mm min. | ||
| Direction of Compression | 600 kN/mm min. | ||||
| Standard Functions | : | • Test force/stress value display | • Self-check | ||
| • Stroke display | • Auto return | ||||
| • Test force auto zero | • Setting Jig distance | ||||
| • Test force auto calibration | • Test piece protection | ||||
| • Automatic loading of load cell | • Timer | ||||
| characteristic values | • Calculator | ||||
| • Fine adjustment of crosshead position | • Light | ||||
| (Button/Dial) | • Sound | ||||
| • Interlock function (Safety cover) | (Choose between standard and clear) | ||||
| • Touch load detection | • Audio Output | ||||
| • Switching display languages to | (Japanese/English/Chinese) | ||||
| Japanese/English/Chinese language | • 6 internal unit ports | ||||
| • Switching display unit | (One of the ports is dedicated to testing power.) | ||||
| • Standby Power Savings | |||||
| When the displacement gauge is connected | |||||
| • Displacement/strain value display function | |||||
| • Displacement auto zero | |||||
| • Displacement auto-calibration | |||||
| (Displacement gauge input amplifier only) | |||||
| When TRAPEZIUMX-V is connected | |||||
| • Automatic test force/strain control (with autotuning function) | |||||
| • Breakage detection | |||||
| • Soft limit detection | |||||
| • Peak value/breakage value display | |||||
| Optional Functions | : | • Up to 5 optional units listed below can be installed. | |||
| Sensor amplifier (load cell, SG displacement meter, LVDT displacement meter), analog | |||||
| input amplifier (4CH), analog output amplifier (4CH), counter unit (4CH), PIO unit | |||||
| (16 inputs and 16 outputs), insulated PIO unit (16 inputs and 16 outputs), analog | |||||
| recorder unit | |||||
| • Pneumatic or hydraulic grips interlocking operation | |||||
| Standard Accessories | : | Load cell, CAL cable, Tool set, Power supply cable, Rotating rod, Hexagon wrench, | |||
| Instruction manual, Safety caution sheet (1 each) | |||||
| Model Lineup by Load Cell Capacity*4 | : | 600 kN | |||
| Dimensions*5 | Standard Height | : | W 1605 × D 1122 × H 2840 mm | ||
| +250 mm Extension | : | W 1605 × D 1122 × H 3090 mm | |||
| +500 mm Extension | : | W 1605 × D 1122 × H 3340 mm | |||
| +750 mm Extension | : | W 1605 × D 1122 × H 3590 mm | |||
| Weight | Standard Height | 100 V Model | : | — | |
| 200 V Model | : | 2960 kg | |||
| 400 V Model | : | — | |||
| +250 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 3020 kg | |||
| 400 V Model | : | — | |||
| +500 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 3070 kg | |||
| 400 V Model | : | — | |||
| +750 Extension | 100 V Model | : | — | ||
| 200 V Model | : | 3130 kg | |||
| 400 V Model | : | — | |||
| Power Supply / Breaker Capacity Required | 100 V Model | : | — | ||
| (Single-Phase,100 to 115V) | |||||
| 200 V Model | : | — | |||
| (Single-Phase,200 to 230V) | |||||
| 200 V Model | : | 13.0 kVA/40 A | |||
| (3-Phase,200 to 230 V) | |||||
| 400 V Model | : | — | |||
| (3-Phase,400 to XXX V) | |||||
