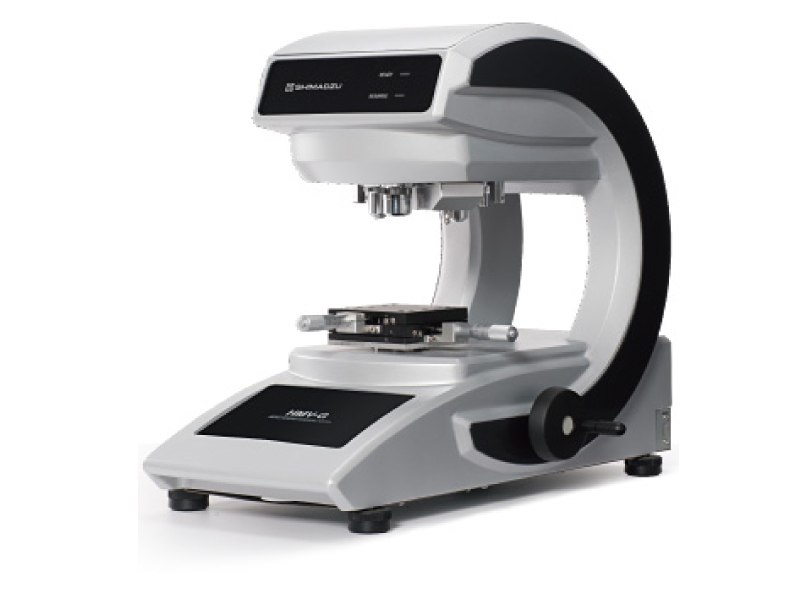

Model: Monochrome Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Monochrome Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Color Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Color Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||

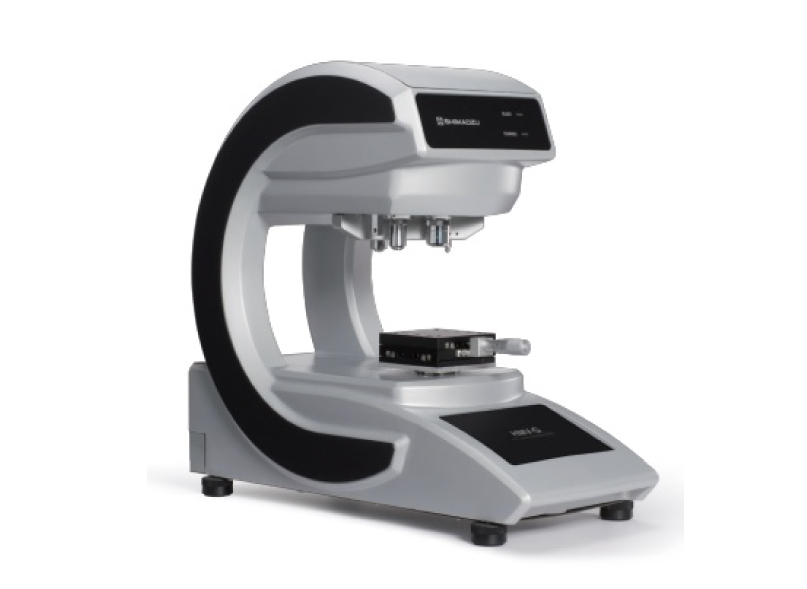

Model: Monochrome Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Monochrome Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty) | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Color Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||
Model: Color Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty | |
| Indentation Reading System | : Automatic readings via digital image analysis, and | |
| manual settings for line length measurement in the | ||
| PC window | ||
| Eyepiece | : — | |
| Digital Camera | Monochrome | : USB Connection (USB 2.0) |
| : 1/3-inch image size | ||
| : Measurement image 640 × 480 pixels | ||
| : 256 tint gradations (digital image data) | ||
| Color | : USB Connection (USB 3.0 Super Speed) | |
| : 2/3-inch image size | ||
| : Measurement image 2448 × 2048 pixels | ||
| Effective Measurement Range | : Monochrome Camera: 120 × 90 μm | |
| (For 40× objective lens) | Color Camera: 195 × 160 μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, depth of hardening graph*6 | |
| External Output | USB | : — |
| Printer | : Printer output from a PC via software | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : OS: Windows® 10 (64 bit edition) | |
| CPU: Intel® Core™ i5-6500 or faster | ||
| USB Ports*8: For monochrome camera | ||
| Uses two USB 2.0 or 3.0 ports | ||
| For color camera | ||
| Uses one USB 3.0 port (required) and | ||
| one USB 2.0 or 3.0 port | ||

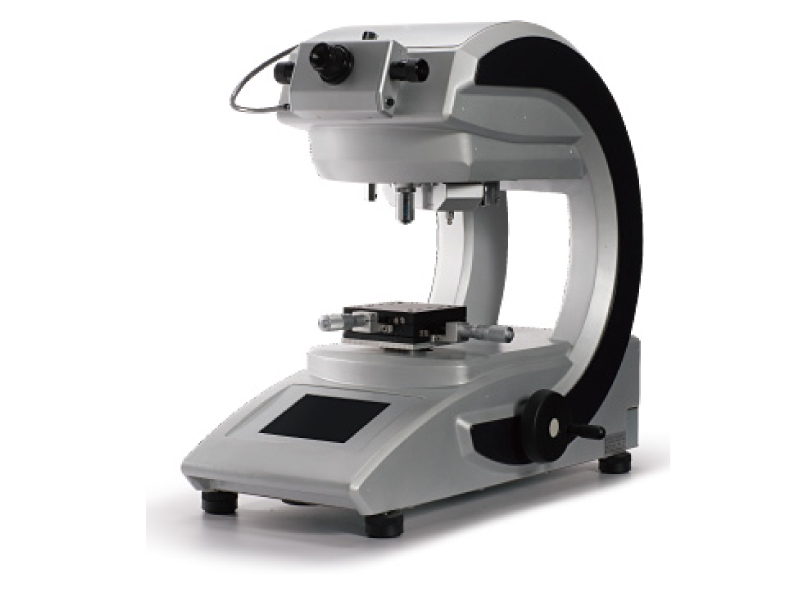

Model: Monochrome Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Manual readings via an optical microscope | |
| Eyepiece | : x10 | |
| Digital Camera | Monochrome | : — |
| Color | : — | |
| Effective Measurement Range (For 40× objective lens) | : 250×250μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, histogram, depth of hardening graph*6 | |
| External Output | USB | : Transfer of test results to a USB flash drive (CSV format) |
| Printer | : Thermal printer Compatible with laser printers | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : — | |
Model: Monochrome Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 1 | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 2 | |
| Standard Objective Lenses Provided | : 40× (1 empty) | |
| Indentation Reading System | : Manual readings via an optical microscope | |
| Eyepiece | : x10 | |
| Digital Camera | Monochrome | : — |
| Color | : — | |
| Effective Measurement Range (For 40× objective lens) | : 250×250μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, histogram, depth of hardening graph*6 | |
| External Output | USB | : Transfer of test results to a USB flash drive (CSV format) |
| Printer | : Thermal printer Compatible with laser printers | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : — | |
Model: Monochrome Camera without Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty) | |
| Indentation Reading System | : Manual readings via an optical microscope | |
| Eyepiece | : x10 | |
| Digital Camera | Monochrome | : — |
| Color | : — | |
| Effective Measurement Range (For 40× objective lens) | : 250×250μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, histogram, depth of hardening graph*6 | |
| External Output | USB | : Transfer of test results to a USB flash drive (CSV format) |
| Printer | : Thermal printer Compatible with laser printers | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : — | |
Model: Monochrome Camera with Electric Turret
| Test Force | : 16 stages in total | |
| 9.807 mN, 19.61 49.03, 98.07, 245.2, 490.3, 980.7mN, | ||
| 1.96 N, 2.942, 4.903, 9.807, 19.61 N | ||
| 12 stages (HV0.001, HV0.002, HV0.005, HV0.01, | ||
| 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1, and 2) | ||
| plus four user-designated stages *1 | ||
| Loading Unit | : Automatic loading and automatic force changing | |
| Test Force Duration Time | : User-designated settings from 0 to 999 sec*2, in 1 sec | |
| increments | ||
| Maximum Number of Indenter Attachments | : 2× (1 empty) | |
| Standard Indenter Provided | : Vickers Indenter | |
| Maximum Number of Objective Lens Attachments | : 4 | |
| Standard Objective Lenses Provided | : 40× 10× (2 empty) | |
| Indentation Reading System | : Manual readings via an optical microscope | |
| Eyepiece | : x10 | |
| Digital Camera | Monochrome | : — |
| Color | : — | |
| Effective Measurement Range (For 40× objective lens) | : 250×250μm | |
| XY Stage | : Area: 100 × 100 mm; Stroke: ±12.5 mm; | |
| Sample: Maximum height 100 mm | ||
| Instrument’s lateral direction (width direction): | ||
| Unlimited*3; | ||
| Instrument’s depth direction: Unlimited for samples | ||
| with a width of 120 mm max.*3 | ||
| When sample width is greater than 120 mm: 200 mm | ||
| max.*3 | ||
| Z Axis Stroke: 60 mm; Spacer provided: Thickness | ||
| 40 mm; Maximum Loading: 10 kg | ||
| The center of gravity of objects loaded must be | ||
| located on the stage. | ||
| Data Processing Functions | : ① Vickers Hardness HV | |
| ② Knoop hardness HK*4 | ||
| ③ Brinell hardness: HB*4 | ||
| ④ Triangular Pyramid Hardness HT*3 | ||
| ⑤ Length, direct reading L (μm)*5 | ||
| ⑥ Fracture Toughness Kc | ||
| ⑦ Shape correction function | ||
| (cylindrical surfaces and spherical surfaces) | ||
| Note: The cracks for measuring fracture toughness are | ||
| determined manually by the operator. | ||
| Results Displayed | Displayed Items | : Data No., diagonal line length, hardness, conversion |
| value, average, standard deviation, coefficient of | ||
| variation, maximum value, minimum value, pass/fail | ||
| determination | ||
| Graphical Display | : Variance graph, histogram, depth of hardening graph*6 | |
| External Output | USB | : Transfer of test results to a USB flash drive (CSV format) |
| Printer | : Thermal printer Compatible with laser printers | |
| External Dimensions | : Approx. W350 × D570 × H540 mm | |
| Weight | : Approx. 45 kg | |
| Power Supply | : Main unit: Single-phase 100 to 115 VAC, 230 VAC, | |
| 100 VA (50/60 Hz) | ||
| Note: Prepare a grounded outlet. | ||
| (D type ground, with a ground resistance of 100 Ω max.) | ||
| Note: With the HMV-G31 series, a power supply for the PC | ||
| will be required in addition to the above mentioned. | ||
| PC Provided*8 | : — | |
