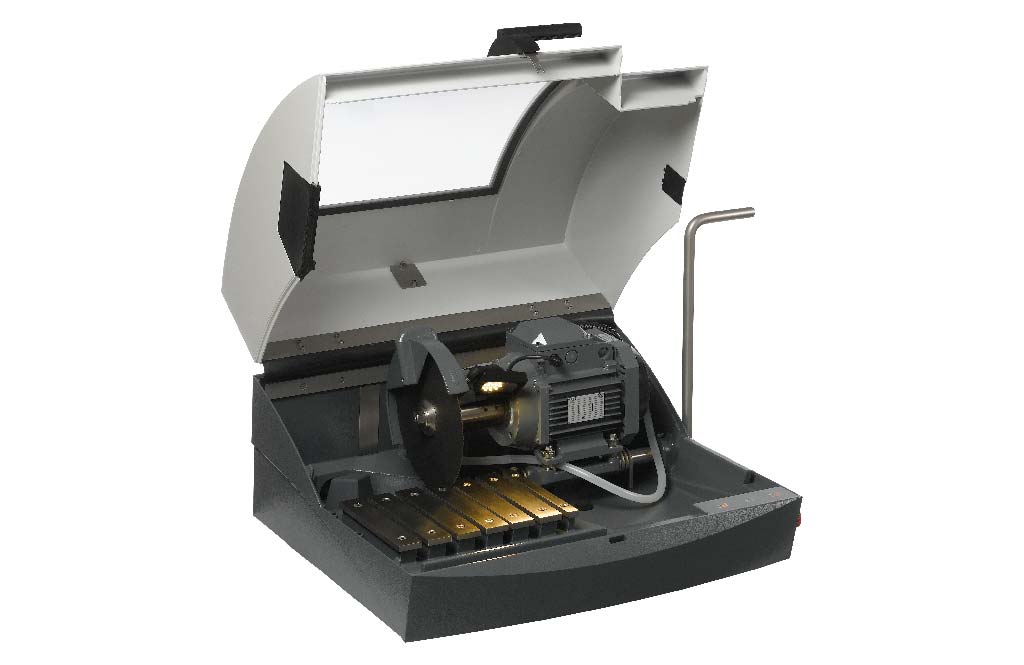

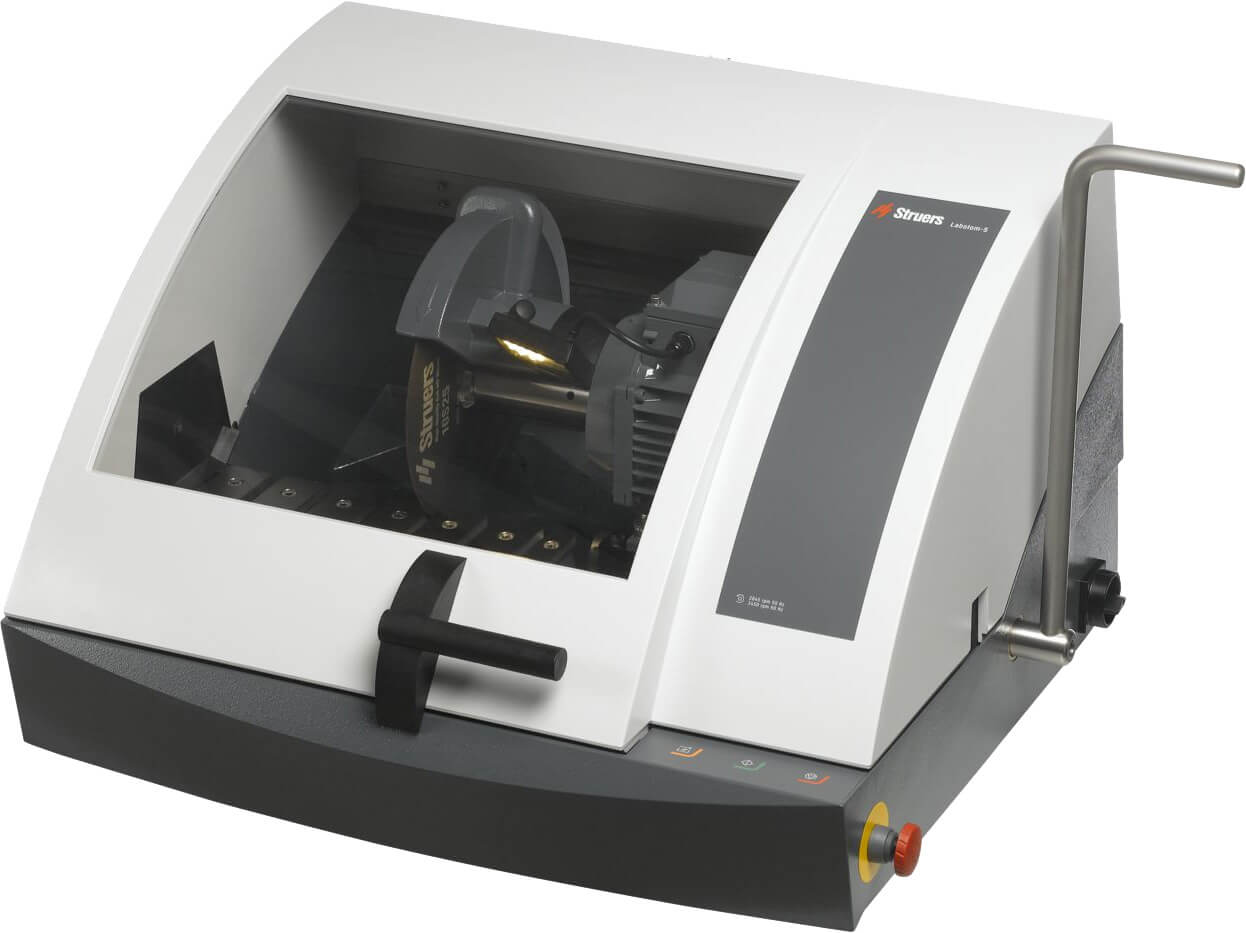

Labotom-5

c/n : 06046246

Manual cut-off machine. For 250 mm (10") cut-off wheels.
Cutting table with 10 mm T-slots.



Specifications

Cut-off wheel size   : 250 mm / 10" dia
Arbor size   : 32 mm / 1.26" dia
Rotational speed   : 2845 rpm (50 Hz)
Cutting capacity   : 90 mm dia / 3.5" dia. or 42 x 120 mm or 1.7" x 4.7"
Cutting table Width : 258 mm / 10.2"
Length : 184 mm / 7.2"
T-Slots : 10 mm
Power Nominal load ( S3 60%) : 2.2 kW / 3.0 HP
Intermittent (S3 15%) : 3.2 kW / 4.3 HP
Max Current : 3x380-415 V / 50 Hz 10.0 A
Dimensions Width : 700 mm / 27.6"
Width with Handle : 860 mm / 33.9"
Depth : 680 mm / 26.8"
Depth with Plug : 808 mm / 31.8"
Height, machine : 440 mm / 17.3"
Height, handle : 520 mm / 20.5"
Height, open cover : 942 mm / 37.1"
Weight : 75 kg / 165 lbs
Noise Level   : 60 dBA, at idle running, at a distance 1.0 m / 39.4"
Surrounding Temperature   : 5 - 40 °C / 41 - 104 °F
Humidity   : 0 - 95 % RH, non condensing
Safety   : Please refer to the Declaration of Conformity

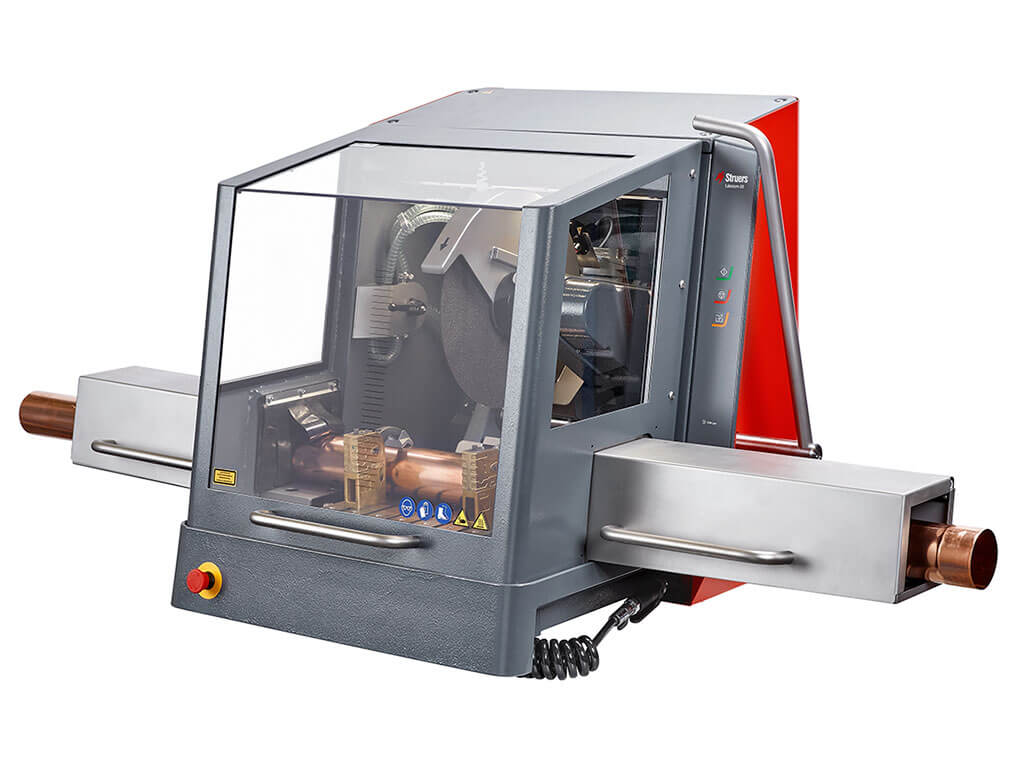

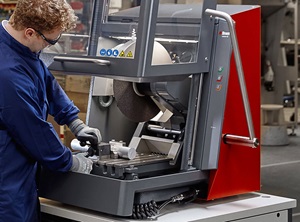

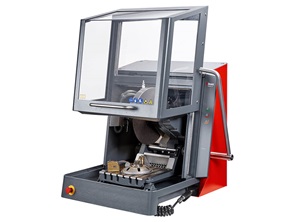

Labotom-20

c/n : 06936146

Manual cut-off machine. For 350 mm (14") cut-off wheels.
Cutting table with 10 mm T-slots.



Specifications

Cut-off wheel size   : 350 mm / 14" dia
Arbor size   : 32 mm / 1.26" dia
Rotational speed   : 2500 rpm (50 Hz)
Cutting capacity   : 110 mm dia / 4.7" dia. or 95 x 200 mm or 3.8" x 10"
Cutting table Width : 340 mm / 13.4"
Depth : 313 mm / 12.3"
T-Slots : 10 mm
Power Nominal load (S1) : 5.2 kW / 7.0 HP
Intermittent (S3 15%) : 7.5 kW / 10.0 HP
Fuse : 40 A
Dimensions Width : 890 mm / 35.2"

Width (One Tunnel)

(Two tunnel)

:

:

1340 mm / 53"

1700 mm / 67"

Depth : 940 mm / 37"
Height : 850 mm / 33"
Height, open cover : 1220 mm / 48"
Weight : 225 kg / 496 lbs
Noise Level   : 72 dBA, at idle running, at a distance 1.0 m / 39.4"
Surrounding Temperature   : 5 - 40 °C / 41 - 104 °F
Humidity   : 35 - 85 % RH, non condensing
Safety   : Please refer to the Declaration of Conformity
