Detil Produk

Capacity		:	50 kN
Series		:	E-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±50/±60 kN
Max. Test force Dynamic/Static	±50 mm	:	±50/±60 kN
Frame rigidity	±25 mm	:	0.0012 mm/kN
Frame rigidity	±50 mm	:	0.0012 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	162~962 mm
Testing Space	±50 mm	:	137~937 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension		:	W 980 x D 750 x H Approx. 2155
Weight		:	790 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

Capacity		:	100 kN
Series		:	E-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±100/±120 kN
Max. Test force Dynamic/Static	±50 mm	:	±100/±120 kN
Frame rigidity	±25 mm	:	0.0012 mm/kN
Frame rigidity	±50 mm	:	0.0012 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	138~938 mm
Testing Space	±50 mm	:	113~913 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension		:	W 980 x D 750 x H Approx. 2155
Weight		:	790 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

Capacity		:	200 kN
Series		:	E-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±200/±240 kN
Max. Test force Dynamic/Static	±50 mm	:	±200/±240 kN
Frame rigidity	±25 mm	:	0.00065 mm/kN
Frame rigidity	±50 mm	:	0.00065 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	200~1000 mm
Testing Space	±50 mm	:	175~975 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension		:	W 1170 x D 850 x H Approx. 2405
Weight		:	1460 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

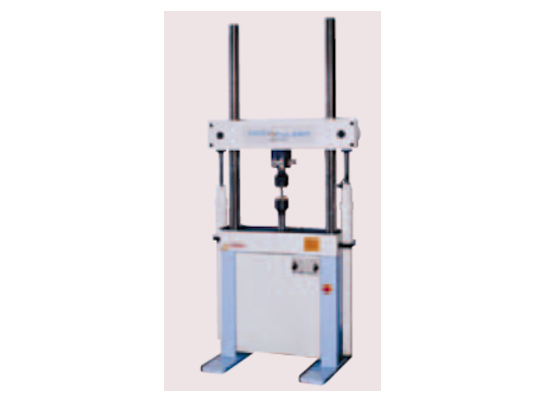

EHF-E
