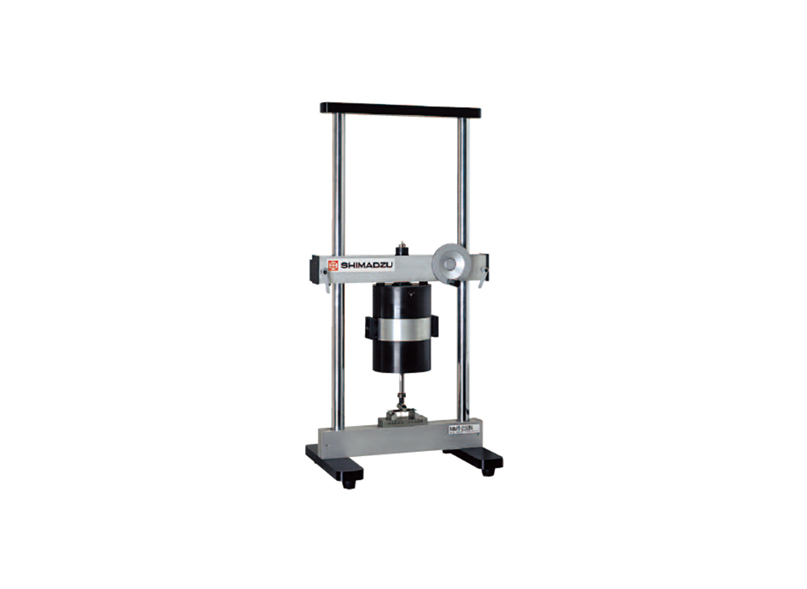

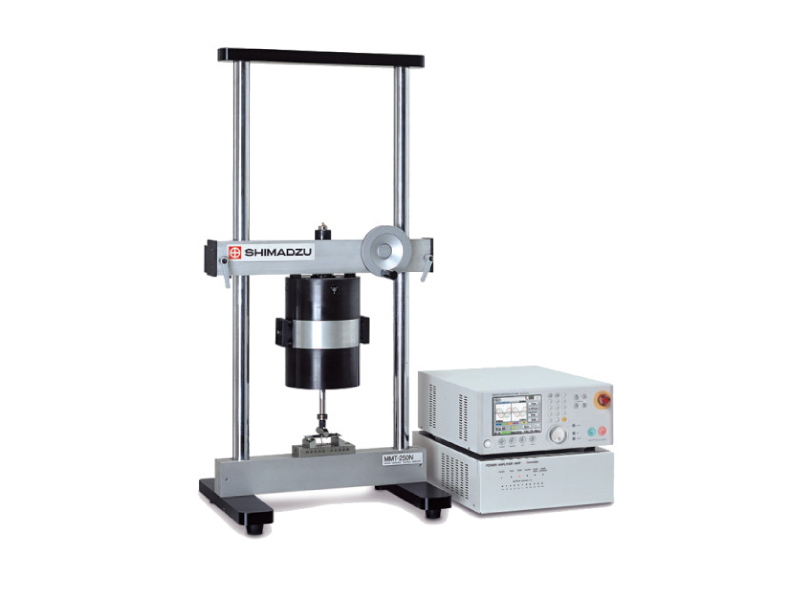

MICRO-MMT
Produk / Shimadzu Material Testing Machine / Fatigue Testing / MICRO-MMT
MICRO MMT-500NV-10
Specifications
| Test force | : | Max. ±500 N |
| Piston Stroke | : | Max. ±10 mm |
| Frequency | : | Max. 100 Hz |
| Controlled items | : | Test force, piston stroke (can be expanded by adding options) |
| Loadcell (standard accessory) | : | ±500 N |
| Jig and test devices | : | Not included in standard configuration (standard specification), select options or consult Shimadzu |
| Indication accuracy | : | Test force : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whichever is larger |
| Stroke : within ±1% indicated value or within ±0.1% max. stroke, whichever is larger | ||
| Installation space (W x D x H) | : | 1000 × 500 × 1200mm (approx.) |
| Total weight | : | approx. 150 kg |
| Power supply | : | 1Ø 100 V 1 kVA |
MICRO MMT-250NV-10
Specifications
| Test force | : | Max. ±250 N |
| Piston Stroke | : | Max. ±10 mm |
| Frequency | : | Max. 100 Hz |
| Controlled items | : | Test force, piston stroke (can be expanded by adding options) |
| Loadcell (standard accessory) | : | ±250 N |
| Jig and test devices | : | Not included in standard configuration (standard specification), select options or consult Shimadzu |
| Indication accuracy | : | Test force : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whichever is larger |
| Stroke : within ±1% indicated value or within ±0.1% max. stroke, whichever is larger | ||
| Installation space (W x D x H) | : | 1000 × 500 × 1200mm (approx.) |
| Total weight | : | approx. 120 kg |
| Power supply | : | 1Ø 100 V 1 kVA |
MICRO MMT-101NV-10
Specifications
| Test force | : | Max. ±100 N |
| Piston Stroke | : | Max. ±10 mm |
| Frequency | : | Max. 100 Hz |
| Controlled items | : | Test force, piston stroke (can be expanded by adding options) |
| Loadcell (standard accessory) | : | ±100 N |
| Jig and test devices | : | Not included in standard configuration (standard specification), select options or consult Shimadzu |
| Indication accuracy | : | Test force : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whichever is larger |
| Stroke : within ±1% indicated value or within ±0.1% max. stroke, whichever is larger | ||
| Installation space (W x D x H) | : | 1000 × 500 × 1200mm (approx.) |
| Total weight | : | approx. 100 kg |
| Power supply | : | 1Ø 100 V 1 kVA |
MICRO MMT-101NV-2
Specifications
| Test force | : | Max. ±100 N |
| Piston Stroke | : | Max. ±2 mm |
| Frequency | : | Max. 100 Hz |
| Controlled items | : | Test force, piston stroke (can be expanded by adding options) |
| Loadcell (standard accessory) | : | ±100 N |
| Jig and test devices | : | Not included in standard configuration (standard specification), select options or consult Shimadzu |
| Indication accuracy | : | Test force : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whichever is larger |
| Stroke : within ±1% indicated value or within ±0.1% max. stroke, whichever is larger | ||
| Installation space (W x D x H) | : | 1000 × 500 × 1200mm (approx.) |
| Total weight | : | approx. 100 kg |
| Power supply | : | 1Ø 100 V 1 kVA |
MICRO MMT-11NV-2
Specifications
| Test force | : | Max. ±10 N |
| Piston Stroke | : | Max. ±2 mm |
| Frequency | : | Max. 60 Hz |
| Controlled items | : | Test force, piston stroke (can be expanded by adding options) |
| Loadcell (standard accessory) | : | ±10 N |
| Jig and test devices | : | Not included in standard configuration (standard specification), select options or consult Shimadzu |
| Indication accuracy | : | Test force : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whichever is larger |
| Stroke : within ±1% indicated value or within ±0.1% max. stroke, whichever is larger | ||
| Installation space (W x D x H) | : | 1000 × 500 × 1200mm (approx.) |
| Total weight | : | approx. 80 kg |
| Power supply | : | 1Ø 100 V 500 VA |
