Detil Produk

Capacity		:	50 kN
Series		:	U-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±50/±60 kN
Max. Test force Dynamic/Static	±50 mm	:	±50/±60 kN
Frame rigidity	±25 mm	:	0.0025 mm/kN
Frame rigidity	±50 mm	:	0.0025 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	179~789 mm
Testing Space	±50 mm	:	154~764 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension	±25 mm	:	W 1046 x D 1000 x H 1610
	±50 mm	:	W 1046 x D 1000 x H 1710
Weight		:	970 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

Capacity		:	100 kN
Series		:	U-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±100/±120 kN
Max. Test force Dynamic/Static	±50 mm	:	±100/±120 kN
Frame rigidity	±25 mm	:	0.0019 mm/kN
Frame rigidity	±50 mm	:	0.0019 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	175~740 mm
Testing Space	±50 mm	:	150~715 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension	±25 mm	:	W 1046 x D 1000 x H 1655
	±50 mm	:	W 1046 x D 1000 x H 1755
Weight		:	1070 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

Capacity		:	200 kN
Series		:	U-type series
Actuator Stroke		:	±25 mm
Actuator Stroke		:	±50 mm
Max. Test force Dynamic/Static	±25 mm	:	±200/±240 kN
Max. Test force Dynamic/Static	±50 mm	:	±200/±240 kN
Frame rigidity	±25 mm	:	0.0009 mm/kN
Frame rigidity	±50 mm	:	0.0009 mm/kN
Crosshead drive mechanism	±25 mm	:	Hydraulic drive (with hydraulic clap)
Crosshead drive mechanism	±50 mm	:	Hydraulic drive (with hydraulic clap)
Testing Space	±25 mm	:	199~954 mm
Testing Space	±50 mm	:	174~929 mm
Column width	±25 mm	:	560 mm
	±50 mm	:	560 mm
Main unit dimension	±25 mm	:	W 1200 x D 1000 x H 2255
	±50 mm	:	W 1200 x D 1000 x H 2305
Weight		:	1960 Kg
Controller		:	Controller 4830 or Controller 4890
Test force	Static indiction accuracy	:	Controller 4830 : within ±0.5% indicated value or within ±0.02% dynamic max. test force, whicever is larger
Test force	Static indiction accuracy	:	Controller 4890 : within ±1% indicated value (high-accuracy model: ±0.5%) or within ±0.02% dynamic max. test force, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4830: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger
Stroke	Static indiction accuracy	:	Controller 4890: within ±1% indicated value or within ±0.1% max. stroke, whicever is larger

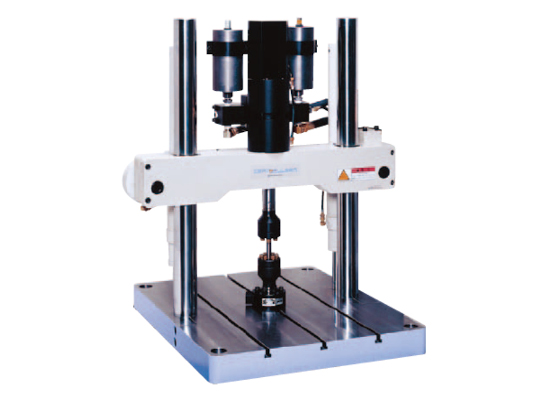

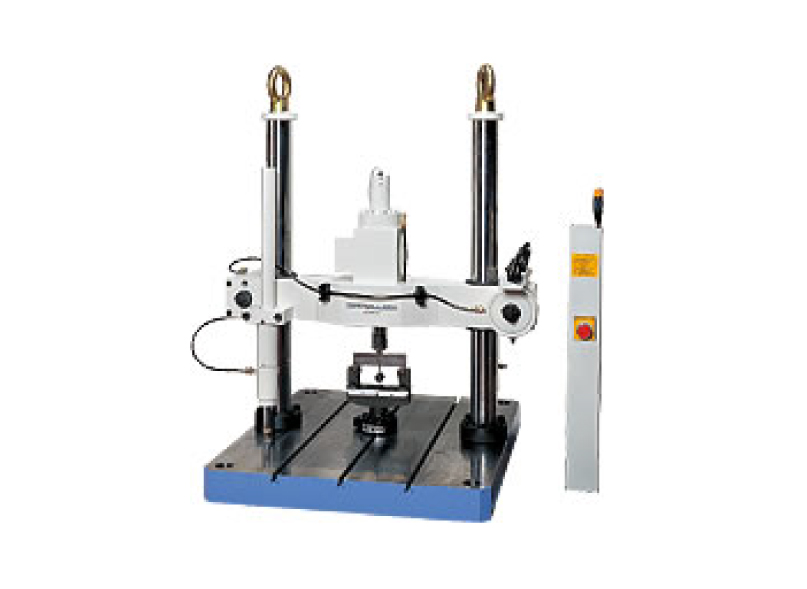

EHF-U
