Minitom Hot Cell
| c/n | : 04436316 |

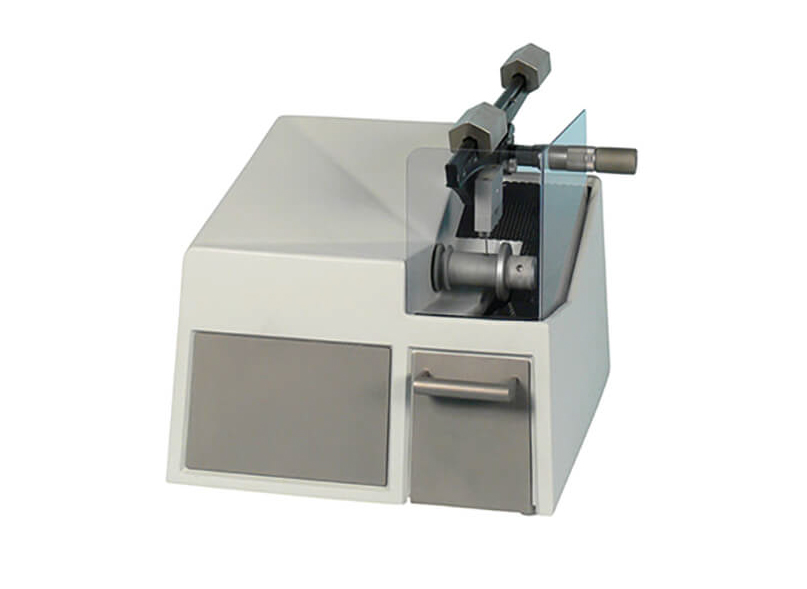

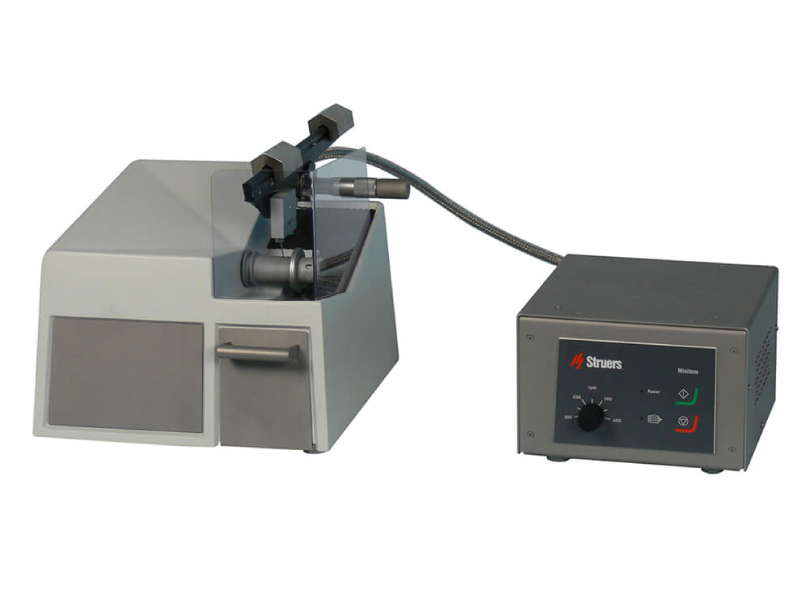

Low speed precision cut-off machine for inside Hot Cell
Specifications
| Flange Set | : 65 mm / 42 mm dia | |
| Controls | : Touchpad | |
| Cabinet | : Made of Painted Aluminium | |
| Tank for Cooling Water | : Made of Stainless Steel | |
| Supply | Voltage / Frequency | : 1 x 100 - 120 V / 50 - 60 Hz |
| Length of Supply Cable | : 8 m | |
| Motor | : 38 W | |
| Cut-off wheel | : 100 - 127 mm / 4 - 5" dia | |
| Output Axle | Rotational Speed | : 100 - 420 rpm |
| Arbor size | : 12.7 mm dia | |
| Arm | Balancing specimen holder with specimen | : Up to 200 g |
| Cutting Pressure | : 0 - 350 g | |
| Axial movement | : 0 - 25 mm | |
| Coolant Tank | Volume | : 250 ml |
