Duramin 40
Produk / Struers Metallography / Hardness Tester / Duramin 40

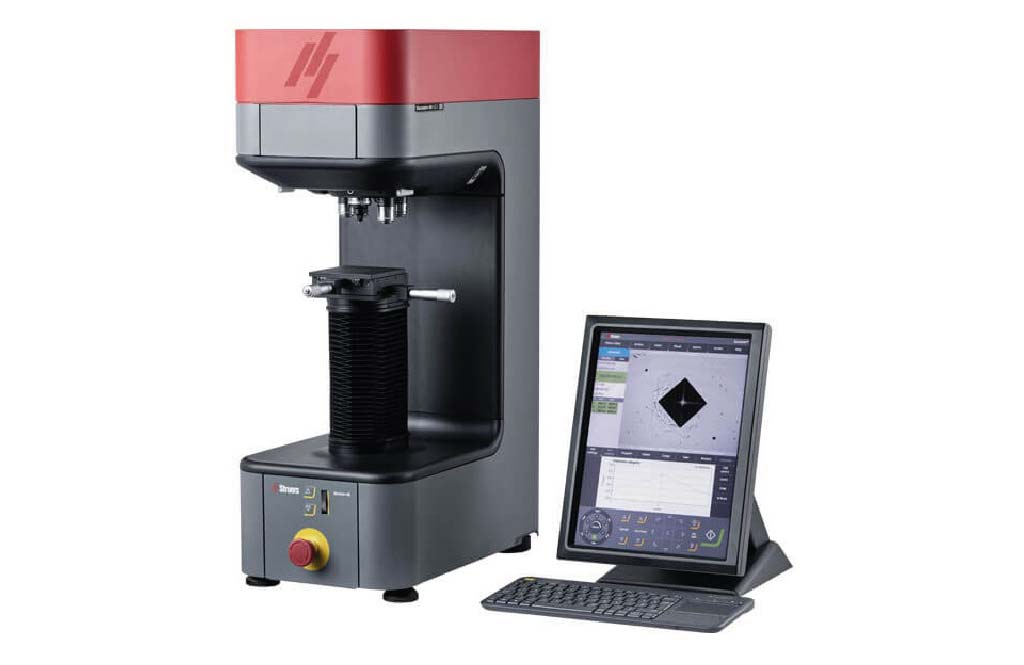

Duramin-40 M1
| C/N | : 06606101 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers and Knoop.
With extended test load range of 0.098 – 98.1 N (10 gf – 10 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis, manual XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | M1 |
| Load Range (Main Load) | : | 10 gf - 10 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |

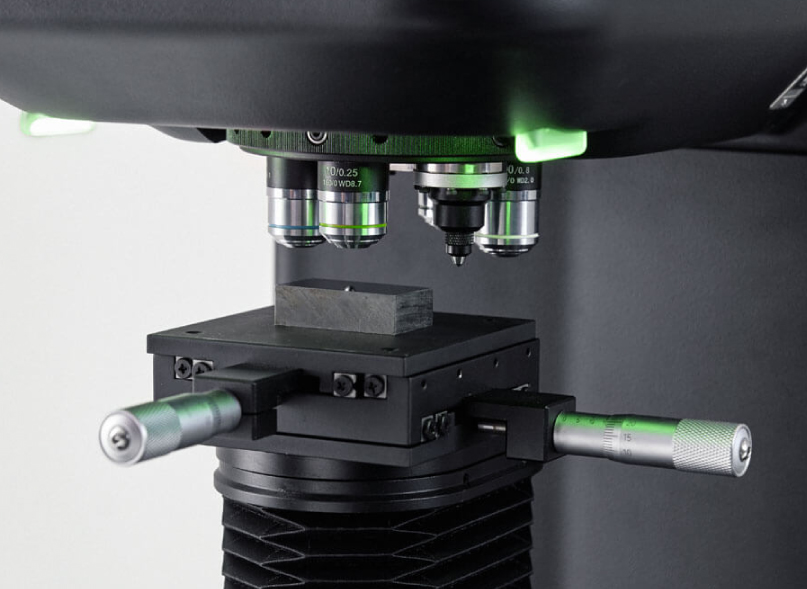

| Stages and Turrets | XY-Stage | : | Manual |
| XY-Stage or Anvil Size (mm) | : | 90x90 | |
| XY-Stage Stroke, Max (mm) | : | 25x25 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |

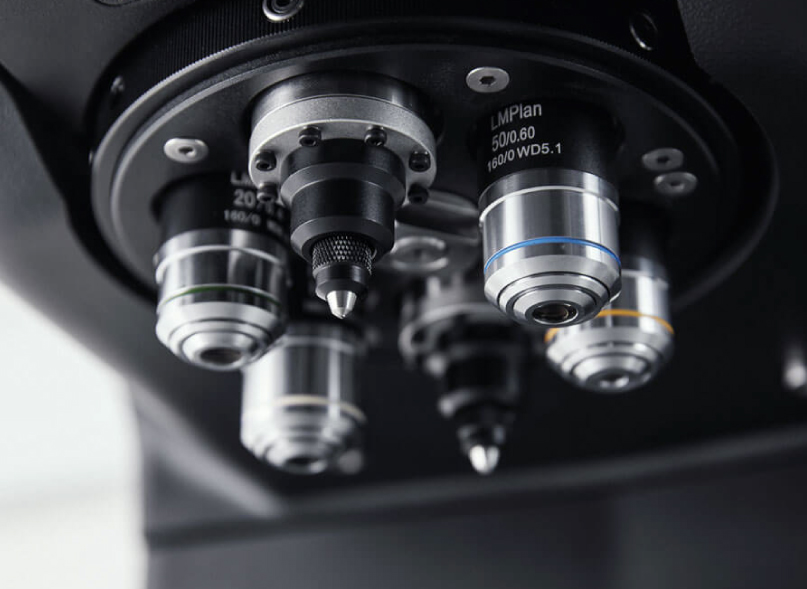

| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 75 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | No | |
| Softwares & Modules | CHD Measurement | : | Optional |
| Edge Detection | : | No | |
| Mapping Module | : | No | |
| Welding Module | : | No | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |
Duramin-40 M2
| c/n | : 06606102 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers, Knoop and Brinell.
With extended test load range of 0.098 – 306.4 N (10 gf – 31.25 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis, manual XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | M2 |
| Load Range (Main Load) | : | 10 gf - 31.25 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Manual |
| XY-Stage or Anvil Size (mm) | : | 90x90 | |
| XY-Stage Stroke, Max (mm) | : | 25x25 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 75 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | No | |
| Softwares & Modules | CHD Measurement | : | Optional |
| Edge Detection | : | No | |
| Mapping Module | : | No | |
| Welding Module | : | No | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |
Duramin-40 M3
| c/n | : 06606103 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers, Knoop and Brinell.
With extended test load range of 0.0098 – 612.9 N (1 gf – 62.5 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis, manual XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | M3 |
| Load Range (Main Load) | : | 1 gf - 62.5 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Manual |
| XY-Stage or Anvil Size (mm) | : | 90x90 | |
| XY-Stage Stroke, Max (mm) | : | 25x25 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 75 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | No | |
| Softwares & Modules | CHD Measurement | : | Optional |
| Edge Detection | : | No | |
| Mapping Module | : | No | |
| Welding Module | : | No | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |

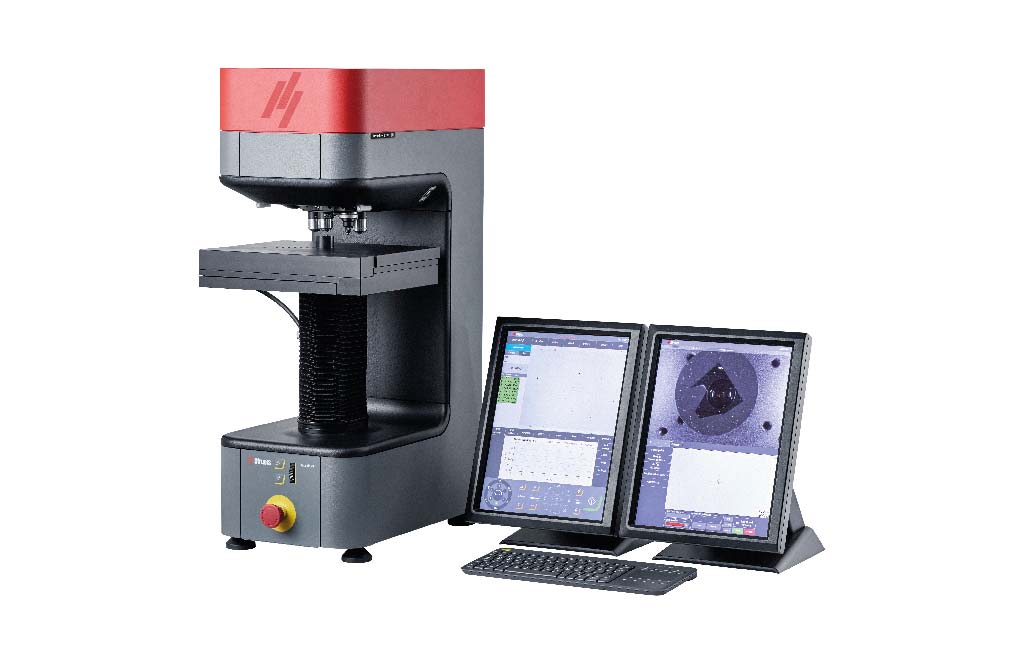

Duramin-40 A1
| c/n | : 06606111 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers and Knoop.
With extended test load range of 0.098 – 98.1 N (10 gf – 10 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | A1 |
| Load Range (Main Load) | : | 10 gf - 10 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350 x 225 | |
| XY-Stage Stroke, Max (mm) | : | 220 x 120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 Positions | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | Optional | |
| Softwares & Modules | CHD Measurement | : | Yes |
| Edge Detection | : | Optional | |
| Mapping Module | : | Optional | |
| Welding Module | : | Optional | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and Keyboard operation is optional |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |
Duramin-40 A2
| c/n | : 06606112 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers, Knoop and Brinell.
With extended test load range of 0.098 – 306.4 N (10 gf – 31.25 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | A2 |
| Load Range (Main Load) | : | 10 gf - 31.25 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350x225 | |
| XY-Stage Stroke, Max (mm) | : | 220x120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | : 5 MP | |
| Auto Illumination | : | : Yes | |
| Stage Illumination | : | : Yes | |
| Laser or LED Guider | : | : Yes | |
| Dual View | : | : Optional | |
| Softwares & Modules | CHD Measurement | : | : Yes |
| Edge Detection | : | : Optional | |
| Mapping Module | : | : Optional | |
| Welding Module | : | : Optional | |
| Kc Frature Measurement | : | : Optional | |
| Report Editor | : | : Yes | |
| Data Export | : | : Yes | |
| Interfaces and Connectivity | Operation | : | : Embedded Windows 7 PC with 15" touch screen. Mouse and Keyboard operation is optional |
| Communication Ports | : | : HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | : Yes | |
| Bluetooth | : | : Optional |
Duramin-40 A3
| c/n | : 06606113 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers, Knoop and Brinell.
With extended test load range of 0.0098 – 612.9 N (1 gf – 62.5 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage. With motorized 6-position measurement turret.
Specifications
| Loads and Application | Model | : | A3 |
| Load Range (Main Load) | : | 1 gf - 62.5 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350x225 | |
| XY-Stage Stroke, Max (mm) | : | 220x120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 6 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | No |
| Overview cam FOV | : | - | |
| Overview camera resolution | : | - | |
| Evaluation Camera Resolution | : | : 5 MP | |
| Auto Illumination | : | : Yes | |
| Stage Illumination | : | : Yes | |
| Laser or LED Guider | : | : Yes | |
| Dual View | : | : Optional | |
| Softwares & Modules | CHD Measurement | : | : Yes |
| Edge Detection | : | : Optional | |
| Mapping Module | : | : Optional | |
| Welding Module | : | : Optional | |
| Kc Frature Measurement | : | : Optional | |
| Report Editor | : | : Yes | |
| Data Export | : | : Yes | |
| Interfaces and Connectivity | Operation | : | : Embedded Windows 7 PC with 15" touch screen. Mouse and Keyboard operation is optional |
| Communication Ports | : | : HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | : Yes | |
| Bluetooth | : | : Optional |
Duramin-40 AC1
| c/n | : 06606121 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers and Knoop.
With extended test load range of 0.098 – 98.1 N (10 gf – 10 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage.
Overview camera with FOV 200x160 mm. With motorized 6+1-position measurement turret.
Specifications
| Loads and Application | Model | : | AC1 |
| Load Range (Main Load) | : | 10 gf - 10 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350x225 | |
| XY-Stage Stroke, Max (mm) | : | 220x120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 7 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | Yes |
| Overview cam FOV | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | Optional | |
| Softwares & Modules | CHD Measurement | : | Yes |
| Edge Detection | : | Optional | |
| Mapping Module | : | Optional | |
| Welding Module | : | Optional | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional. |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |
Duramin-40 AC2
| c/n | : 06606122 |

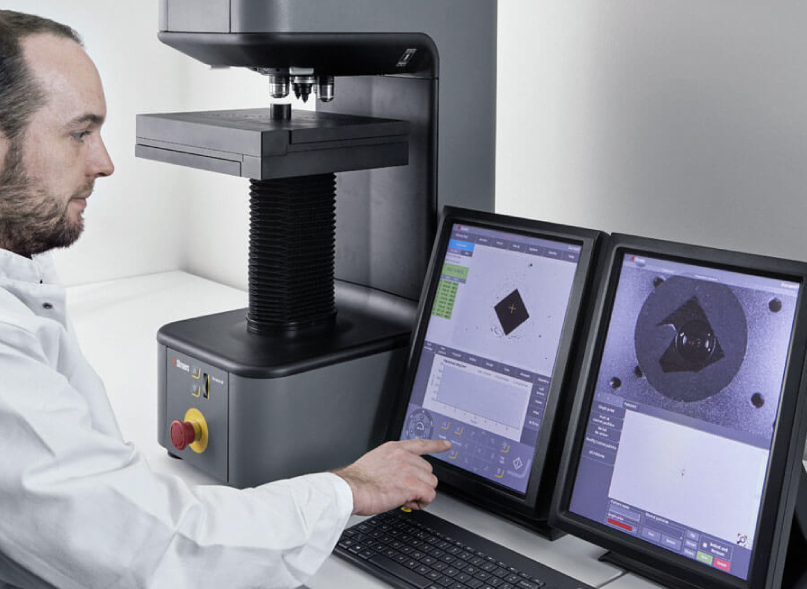

Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers and Knoop.
With extended test load range of 0.098 – 306.4 N (10 gf – 31.25 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage.
Overview camera with FOV 200x160 mm. With motorized 6+1-position measurement turret.
Specifications
| Loads and Application | Model | : | AC2 |
| Load Range (Main Load) | : | 10 gf - 31.25 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350x225 | |
| XY-Stage Stroke, Max (mm) | : | 220x120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 7 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | Yes |
| Overview cam FOV | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | Optional | |
| Softwares & Modules | CHD Measurement | : | Yes |
| Edge Detection | : | Optional | |
| Mapping Module | : | Optional | |
| Welding Module | : | Optional | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional. |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |

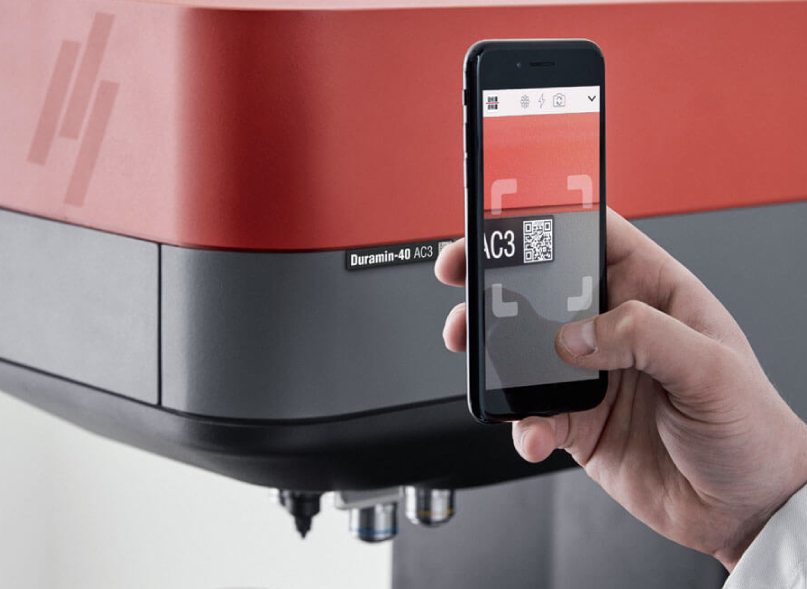

Duramin-40 AC3
| c/n | : 06606123 |
Micro/macro hardness tester based on load cell technology for the automatic testing of Vickers and Knoop.
With extended test load range of 0.0098 – 612.9 N (1 gf – 62.5 kgf).
With 15” touchscreen, high-resolution camera, automatic illumination, automatic focus, automatic image evaluation, motorized Z-axis and XY-stage.
Overview camera with FOV 200x160 mm. With motorized 6+1-position measurement turret.
Specifications
| Loads and Application | Model | : | AC3 |
| Load Range (Main Load) | : | 1 gf - 62.5 kgf | |
| Vickers Capability | : | Yes | |
| Knoop Capability | : | Yes | |
| Brinell Capability | : | Yes | |
| Stages and Turrets | XY-Stage | : | Automatic |
| XY-Stage or Anvil Size (mm) | : | 350x225 | |
| XY-Stage Stroke, Max (mm) | : | 220x120 | |
| Vertical Capability (mm) | : | 200 | |
| Throat Depth (mm) | : | 170 | |
| Motorized Z-Axis | : | Yes | |
| Motorized Turret | : | Yes | |
| Turret Positions | : | 7 | |
| Anti-Collision Protection | : | Yes | |
| Machine Weight | : | 80 kg | |
| Cameras and Optics | Overview Camera | : | Yes |
| Overview cam FOV | : | 200x160 | |
| Overview camera resolution | : | 5 MP | |
| Evaluation Camera Resolution | : | 5 MP | |
| Auto Illumination | : | Yes | |
| Stage Illumination | : | Yes | |
| Laser or LED Guider | : | Yes | |
| Dual View | : | Optional | |
| Softwares & Modules | CHD Measurement | : | Yes |
| Edge Detection | : | Optional | |
| Mapping Module | : | Optional | |
| Welding Module | : | Optional | |
| Kc Frature Measurement | : | Optional | |
| Report Editor | : | Yes | |
| Data Export | : | Yes | |
| Interfaces and Connectivity | Operation | : | Embedded Windows 7 PC with 15" touch screen. Mouse and keyboard operation is optional. |
| Communication Ports | : | HDMI, VGA, RJ45, WLAN, USB, RS232 | |
| WiFi | : | Yes | |
| Bluetooth | : | Optional |
