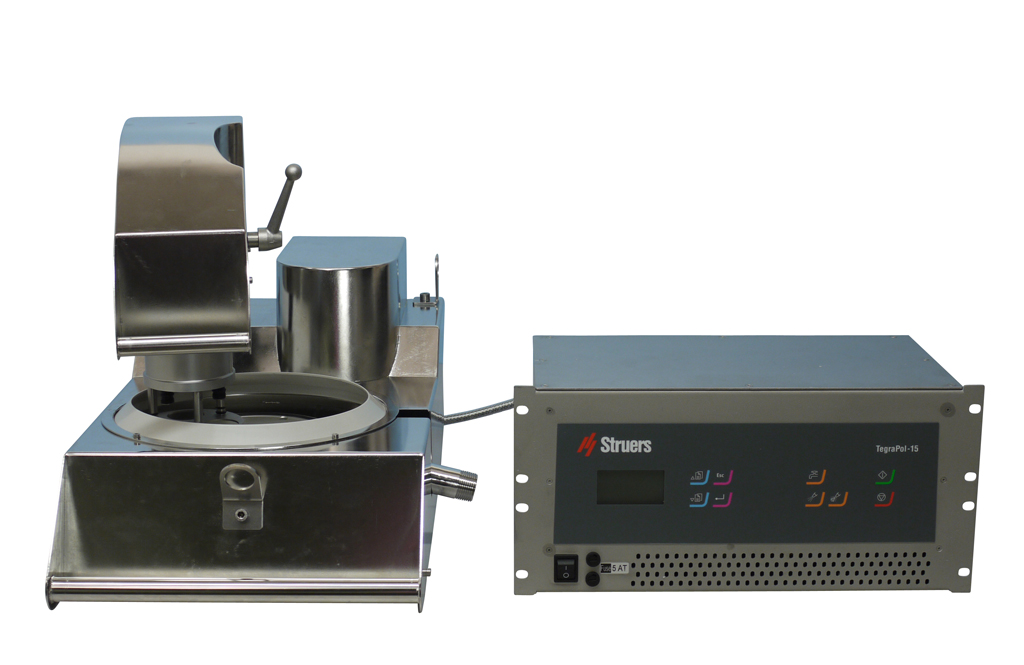

TegraPol-15 for Hot Cell
| c/n | : 05526427 |
Grinding/polishing machine with variable speed (40-600 rpm in steps of 10 rpm). For disc 200 mm (8") dia. 370 W motor. Complete with control box with electric parts and controls for rack mounting outside the hot cell. Discs are ordered separately. Length of supply cable is 8 m; other lengths can be delivered on request
Technical data
| Disc | Diameter | : 200 mm / 8" |
| Speed | : 40-600 rpm in steps of 10 rpm | |
| Rotational direction | : Counter-clockwise | |
| No of motors | : 1 | |
| Motor power, continuous (S1) | : 370 W / 0.50 HP | |
| Torq at disc cont. at <300 rpm | : 11.8 Nm / 8.7 ft-lbf | |
| Torq at disc cont. at 600 rpm | : 5.7 Nm / 4.2 ft-lbf | |
| Torq at disc max | : >20 Nm / 14.8 ft-lbf | |
| Connected equipment | Head | : TegraForce-1 for Hot Cell |
| Recommended dosing unit | : TegraDoser-5 for Hot Cell | |
| Software and Electronics | Control | : Touchpad |
| Memory | : FLASH-ROM / RAM / NV-RAM | |
| LC display | : 128 x 64 dots with back light | |
| Cabinet & Drain pipe | : Stainless steel | |
| Surrounding temperature | : 5 - 40°C / 41 - 104°F | |
| Humidity | Non-condensing | : 0 - 95% RH |
| Supply | Voltage / frequency | : 200 - 240 V / 50-60 Hz |
| Power inlet | : 1-phase (N+L1+PE) or 2-phase (L1+L2+PE) | |
| Power, nominal load | : 440 W | |
| Power, idle | : 12 W | |
| Current, nom. | : 2.2 A | |
| Current, max. | : 5.0 A | |
| Dimensions and weight | Width | : 430 mm / 16.9" |
| Depth | : 636 mm / 25.0" | |
| Height | : 483 mm / 19.04" | |
| Weight | : Approx 50 kg / 110 lbs |

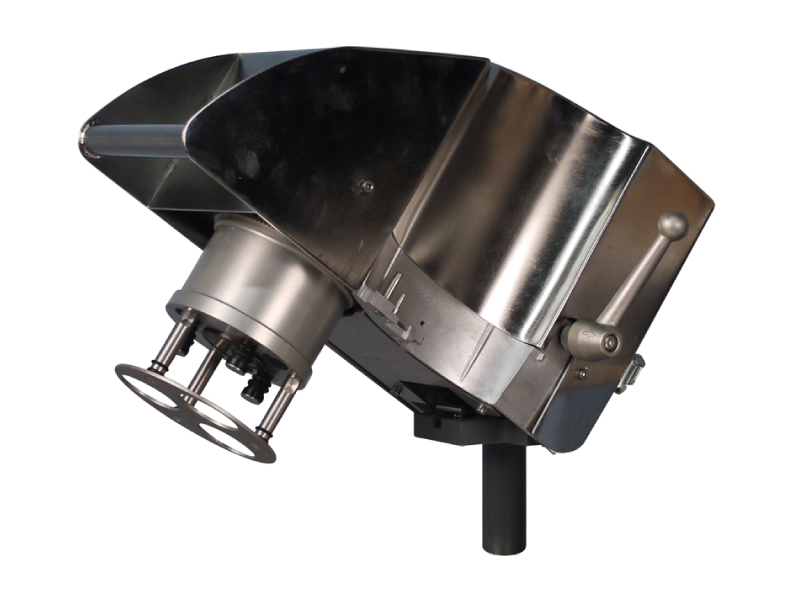

TegraForce-1 for Hot Cell
| c/n | : 05576504 |
Automatic specimen mover with variable speed (50-150 rpm in steps of 10 rpm). For fine grinding and polishing of 1-3 single specimens or grinding and polishing of 3 specimens fixed in a specimen holder. Dosing unit, specimen mover plates and specimen holders are ordered separately. Length of tube for compressed air is 8 m; if other length is wanted, specify when ordering.
Technical data
| Specimen mover plates | Rotational speed | : 50-150 rpm in steps of 10 rpm |
| Rotational Direction | : Clockwise and Counter-Clockwise | |
| Motor | : 35 W | |
| Torque max | : 3.2 Nm | |
| Specimens (max) | : 3 x 25 mm, 30 mm, 40 mm, 1¼”, 1½” dia. | |
| Power supply | Power connection | : TegraForce-1 for Hot Cell is connected directly to TegraPol-15 for Hot Cell |
| Controls | : Touch pad and push/turn knob | |
| Cabinet | : Stainless steel | |
| Noise level | Idle | : 52 dB(A), at idle running, at a distance 1.0 m / 39.4" from the machine |
| During preparation | : 60 dB(A) | |
| Surrounding temperature | : 5 - 40°C / 41 - 104°F | |
| Humidity | Non-condensing | : 0 - 95% RH |
| Supply | Voltage / frequency | : 24 Vdc from TegraPol |
| Current, nom. | : 2.0 A | |
| Current, max. | : 3.0 A | |
| Air inlet | : 8 mm dia (JTV 09.07.2015) | |
| Air pressure | : 5-10 bar / 72-145 psi | |
| Air quality | : The air supplied must be of the quality 5.6.4, specified in standard ISO 8573-1 | |
| Dimensions and weight | Width | : 175 mm / 6.9" |
| Depth | : 310 mm / 12.2" | |
| Height | : 445 mm / 17.5" | |
| Weight | : Approx. 10 kg / 22 lbs |

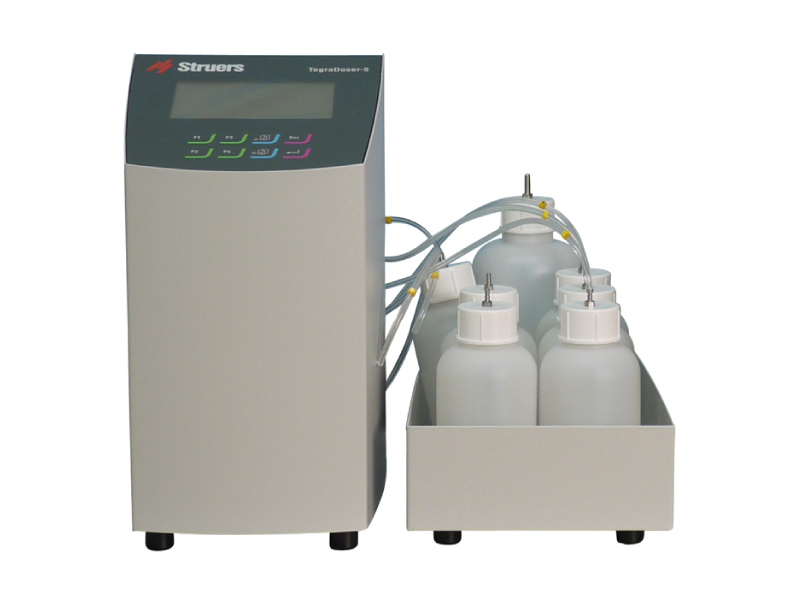

TegraDoser-5 for Hot Cell
| c/n | : 05607804 |
Dosing unit and database for preparation methods. With peristaltic pumps. For automatic dosing of diamond suspensions and lubricants. Can be used for supply of water. TegraDoser-5 for hot cell is placed outside the hot cell. The nozzle block is mounted on TegraForce-1 for hot cell. The peristaltic pumps cannot reverse. The built-in database contains the 10 Metalog Guide methods and has a capacity for additional 190 user-defined preparation methods. Length of tubes is 3 m; other lengths can be delivered on request. With 6 pumps for diamond suspensions or lubricants and 1 pump for wat
| Dosing (option) | Pumps / Bottles | : 6 Diamond & 1 lubricant |
