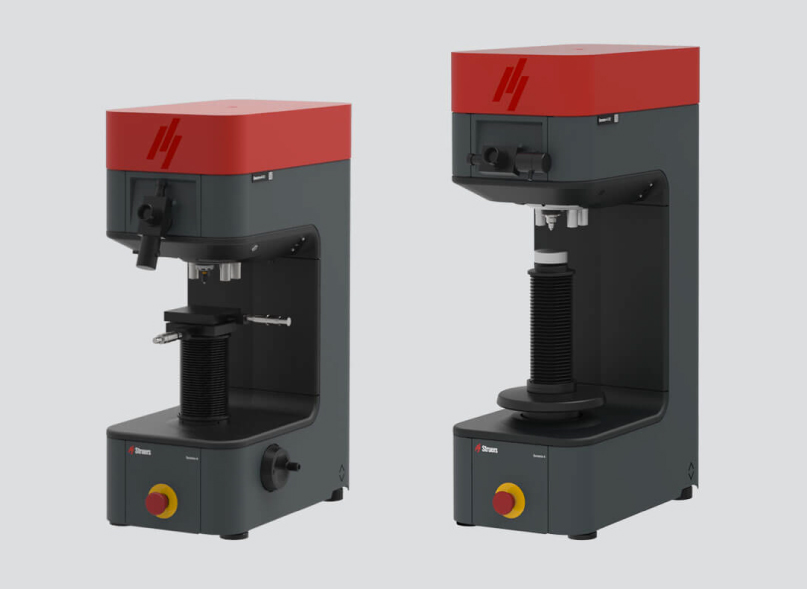

Duramin-4 M1

c/n

: 06656101



Specifications

LOADS AND APPLICATIONS Load range (main loads) : 10 gf - 2 kgf
Vickers capability : Yes
Knoop capability : Yes
Brinell capabilty : No
STAGES AND TURRETS XY-stage : Manual
XY-stage or anvil size (mm) : 90x90
XY-stage stroke, max (mm) : 25x25
Vertical capacity (mm) : 160
Throat depth (mm) : 170
Motorized Z-axis : No
Motorized turret : Yes
Turret positions : 6
Anti-collision protection : Yes
Machine weight : 75 kg
OPTICS Indent evaluation : Manually via eyepiece
SOFTWARE AND MODULES Report editor : Yes
Data export : Yes
INTERFACES AND CONNECTIVITY Operation : Touch screen
Communication Ports : USB 2.0

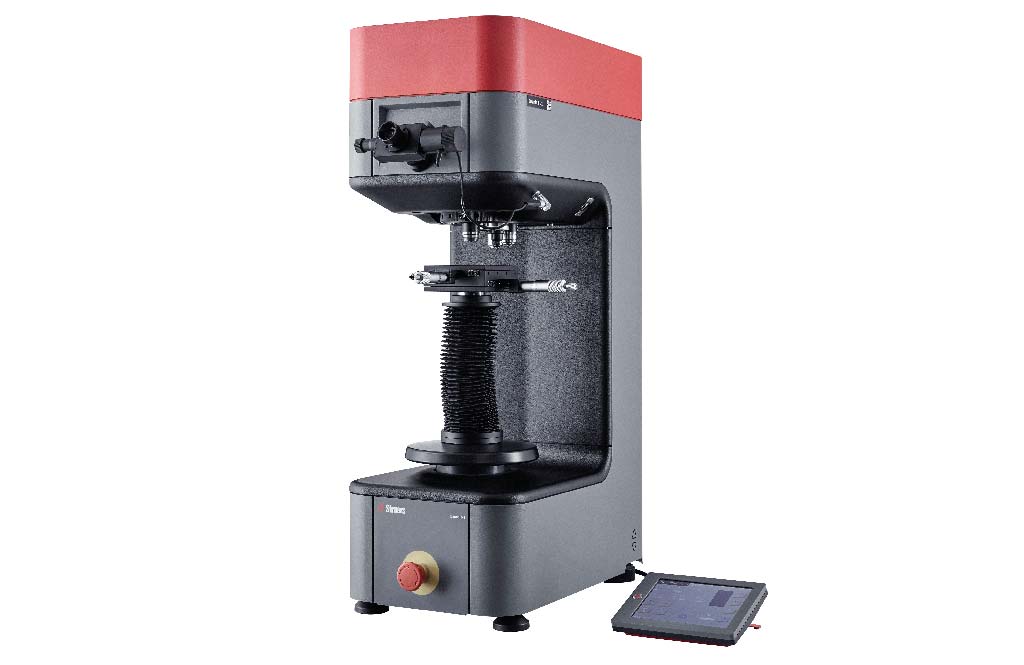

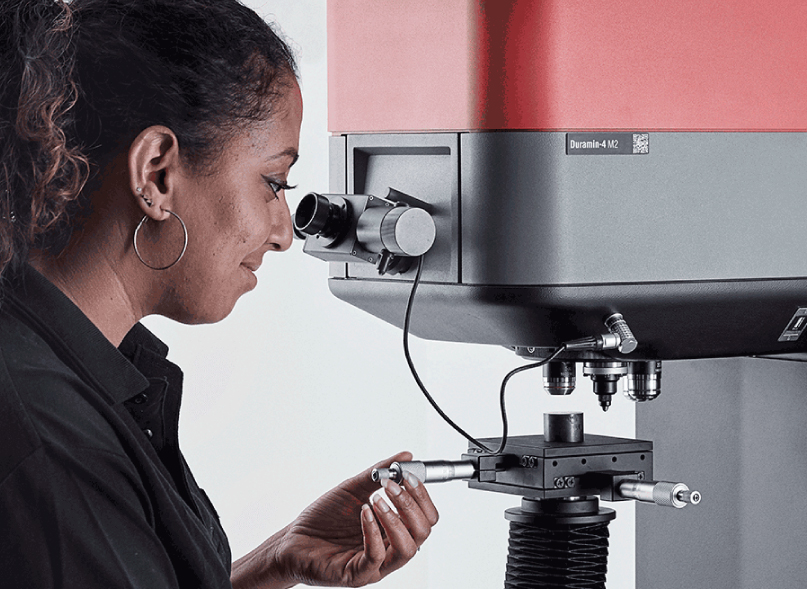

Duramin-4 M2

c/n : 06656102



Specifications

LOADS AND APPLICATIONS Load range (main loads) : 1 kgf - 62.5 kgf
Vickers capability : Yes
Knoop capability : Yes
Brinell capabilty : Yes
STAGES AND TURRETS XY-stage : Manual
XY-stage or anvil size (mm) : 90x90
XY-stage stroke, max (mm) : 25x25
Vertical capacity (mm) : 230
Throat depth (mm) : 170
Motorized Z-axis : No
Motorized turret : Yes
Turret positions : 6
Anti-collision protection : Yes
Machine weight : 85 kg

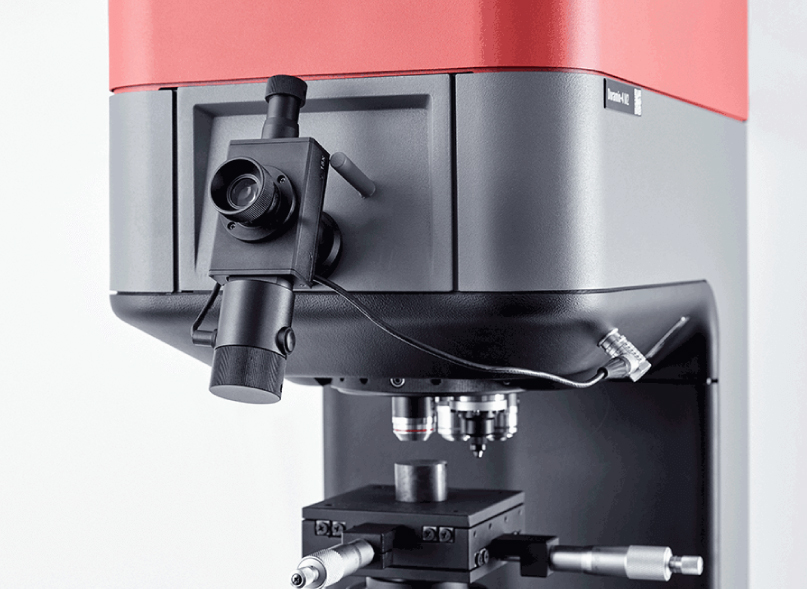

OPTICS Indent evaluation : Manually via eyepiece
SOFTWARE AND MODULES Report editor : Yes
Data export : Yes
INTERFACES AND CONNECTIVITY Operation : Touch screen
Communication Ports : USB 2.0
