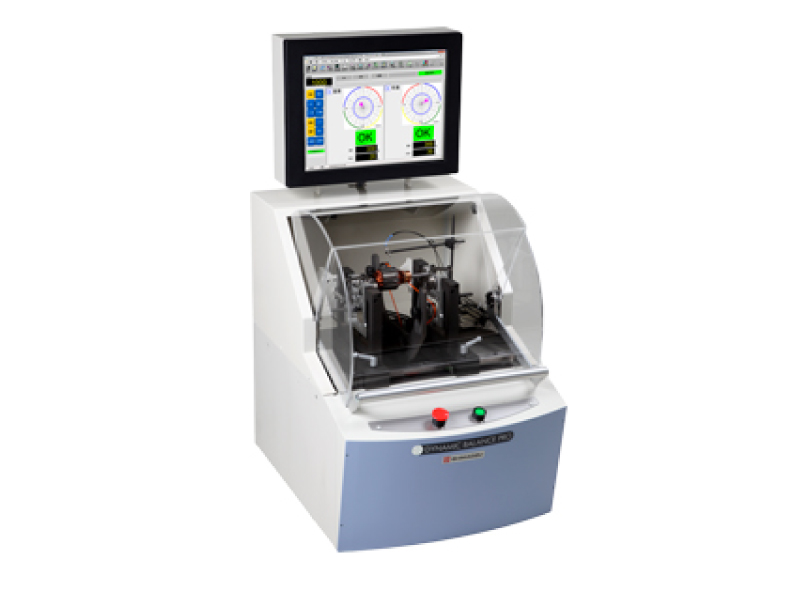

S-3NEII

Specifications

Workpiece Weight (kg) 0.03 to 3
Max. Workpiece Diameter (mm) 200
Testing Speed (rpm) 700 to 3600 (Depending on outer diameter of workpiece)
Drive motor (w) 90
Min. Achievable Eccentric Distance (µm) 0.05 (mass eccentricity for a workpiece of max. weight)
Min. Achievable Unbalance on One-Plane (g•mm) 0.015
Size (WxDxH mm) 450x895x589
Weight (kg) 100
Power Supply Single-phase 100V 10A 1KVA
