CFT SERIES
Produk / Shimadzu Material Testing Machine / Flowtester / CFT SERIES

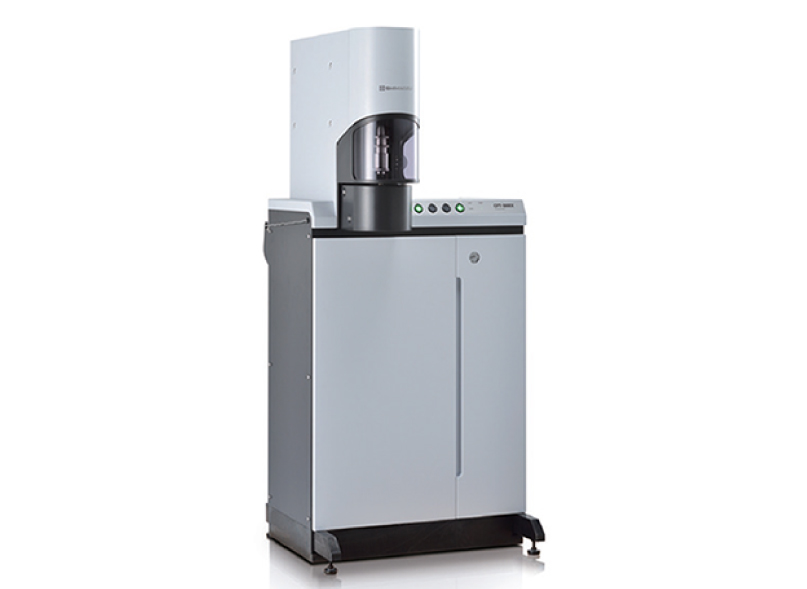

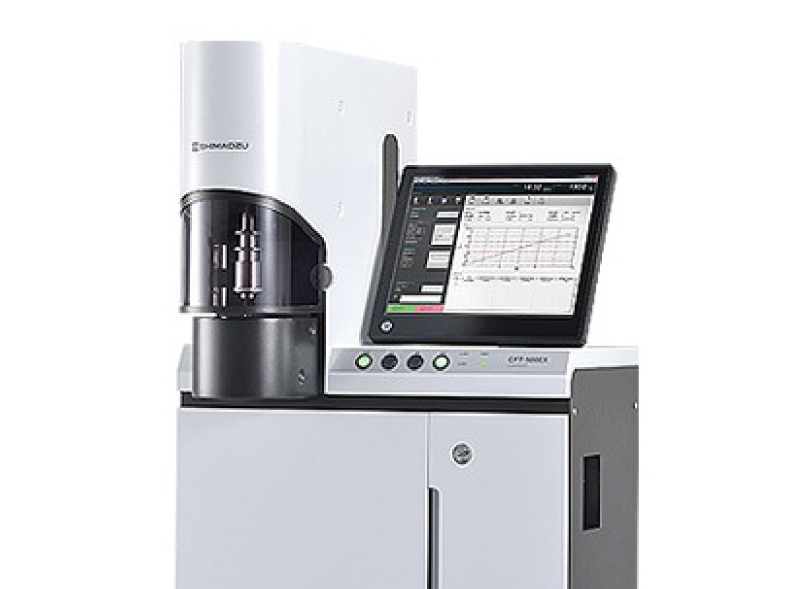

CFT-500EX
Specifications

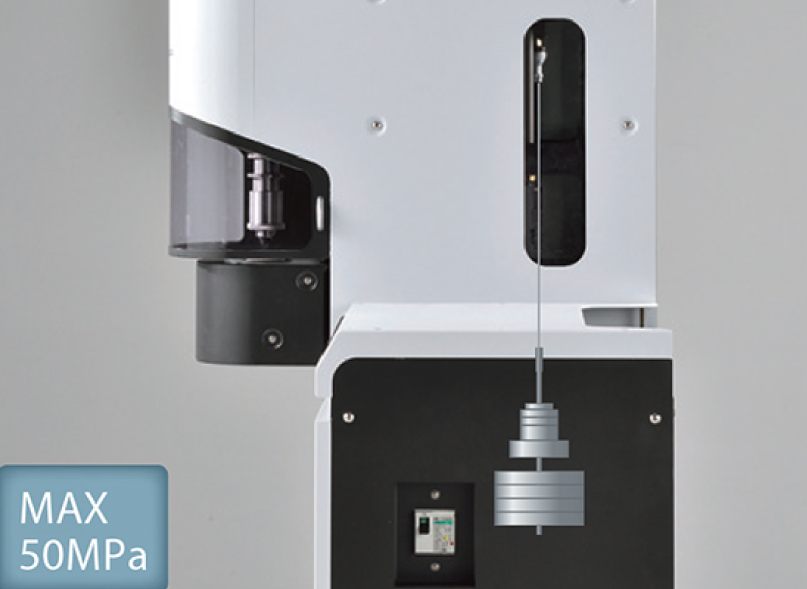

| Pressurizing Method | : | Constant test force extrusion using weights | |
| Extruding Pressure | Range | : | 0.4903 to 49.03 MPa (0.493 MPa step selection) |
| Precision | : | Within ±1% of the set value | |
| Test Method | : | Constant temperature method and constant heating rate method | |
| Measuring Range | : | 1 × 101 to 1 × 106 Pa·s | |
| Heating Method | : | Electric, 500 W | |
| Temperature | Operation Range | : | 20°C above room temperature to 400°C |
| Heat Sensor | : | Platinum resistance temperature sensor | |
| Measuring Precision | : | ±0.3 °C + error of heat sensor (± (0.3 + 0.005 |t|) °C) Note: |t| is the absolute value of the measured temperature. | |
| Control Precision | : | ±0.2 °C (in stable state) | |
| Heating Rate | : | 0.5 to 6.0°C/min (for constant heating rate method), min. 0.1°C step | |
| Piston Stroke | Effective Stroke | : | 15 mm |
| Detector | : | Linear potentiometer | |
| Measuring Precision | : | ±0.5 % (for 15 mm stroke) | |
| Resolution | : | 0.01 mm | |
| Sample Size | : | Max. 1.5 cm3 | |
| Piston Diameter | : | 11.282 mm (area1 cm2) | |
| Cylinder Diameter | : | 11.329 mm | |
| Die | : | Die orifice 1 mm × 1 mm length | |
| Operational Requirements | Power Supply | : | 100 V AC, 50 or 60 Hz, max. 700 VA (Step-down transformer is required separately) |
| Pneumatic Supply | : | Approx. 0.4 MPa, 15 NL/cycle (Flow rate required per test) | |
| Note: Please provide a connection that can be connected to a rubber hose with 9.5 mm I.D. (18.5 mm O.D.) included for connecting a compressed air supply. | |||
| Temperature | : | 10 to 35 °C | |
| Humidity | : | 60% max. (no condensation) | |
| Dimensions and Weight | Main Unit | : | W690 mm × D640 mm × H1540 mm 160kg |
| Control Computer | Compatible Operating Software | : | Windows 8.1 ,Windows 7 (32bit/64bit) |
| Communication Interface | : | USB 2.0, 1 port | |
| Display | : | 1280 × 1024 or higher resolution recommended |
CFT-100EX
Specifications
| Pressurizing Method | : | Constant test force extrusion using weights | |
| Extruding Pressure | Range | : | 0.098 to 9.807 MPa (0.098 MPa step selection) |
| Precision | : | Within ±1% of the set value | |
| Test Method | : | Constant temperature method and constant heating rate method | |
| Measuring Range | : | 2.5 × 100 to 2.5 × 105 Pa·s | |
| Heating Method | : | Electric, 500 W | |
| Temperature | Operation Range | : | 20°C above room temperature to 400°C |
| Heat Sensor | : | Platinum resistance temperature sensor | |
| Measuring Precision | : | ±0.3 °C + error of heat sensor (± (0.3 + 0.005 |t|) °C) Note: |t| is the absolute value of the measured temperature. | |
| Control Precision | : | ±0.2 °C (in stable state) | |
| Heating Rate | : | 0.5 to 6.0°C/min (for constant heating rate method), min. 0.1°C step | |
| Piston Stroke | Effective Stroke | : | 15 mm |
| Detector | : | Linear potentiometer | |
| Measuring Precision | : | ±0.5 % (for 15 mm stroke) | |
| Resolution | : | 0.01 mm | |
| Sample Size | : | Max. 1.5 cm3 | |
| Piston Diameter | : | 11.282 mm (area1 cm2) | |
| Cylinder Diameter | : | 11.329 mm | |
| Die | : | Die orifice 1 mm × 1 mm length | |
| Operational Requirements | Power Supply | : | 100 V AC, 50 or 60 Hz, max. 700 VA (Step-down transformer is required separately) |
| Pneumatic Supply | : | Approx. 0.4 MPa, 15 NL/cycle (Flow rate required per test) | |
| Note: Please provide a connection that can be connected to a rubber hose with 9.5 mm I.D. (18.5 mm O.D.) included for connecting a compressed air supply. | |||
| Temperature | : | 10 to 35 °C | |
| Humidity | : | 60% max. (no condensation) | |
| Dimensions and Weight | Main Unit | : | W690 mm × D640 mm × H1540 mm 160kg |
| Control Computer | Compatible Operating Software | : | Windows 8.1 ,Windows 7 (32bit/64bit) |
| Communication Interface | : | USB 2.0, 1 port | |
| Display | : | 1280 × 1024 or higher resolution recommended |
