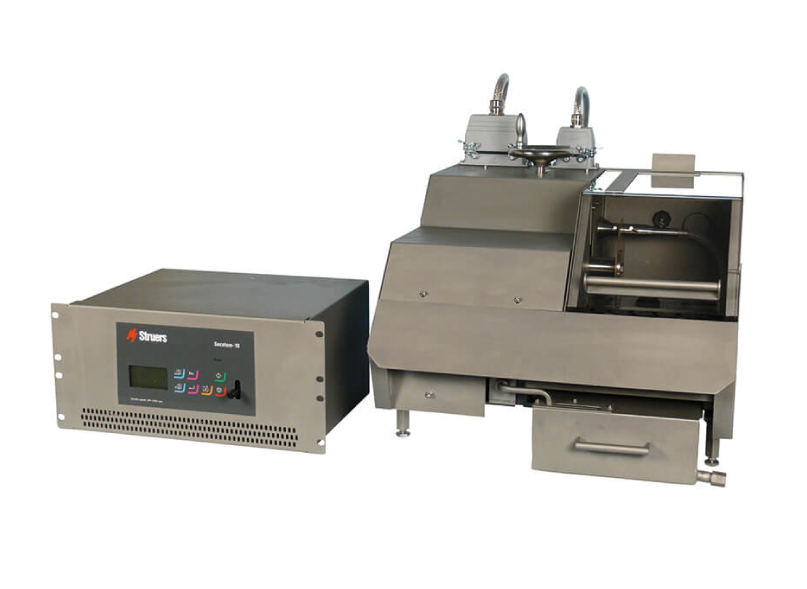

Secotom-10 Hot Cell
| c/n | : 05036327 |
Automatic cut-off machine for inside Hot Cell
Specifications
| Flange Set | : 65 mm dia | |
| Controls | : Touchpad and Joystick | |
| Chassis | : Made of Aluminium | |
| Supply | Voltage / Frequency | : 1/3 x 200 - 240 V / 50 - 60 Hz |
| Max Load | : 3.2 A | |
| Length of Supply Cable | : 8 m | |
| Motor | : 800 W | |
| Cut-off wheels | : 75 - 203 mm / 3 - 8" | |
| Output axle | Rotational Speed | : 300 - 5000 rpm |
| Arbor size | : 12.7 / 22 mm dia (0.5 / 0.86" dia) | |
| Coolant Tank | Volume | : 3.8 l |
| Positioning and Feed | Positioning range (of cut-off wheel) | : 0 - 40 mm / 0 - 1.57" |
| Positioning range (of cutting table) | : 0 - 190 mm / 0 - 7.48" | |
| Max positioning speed of table | : 20 mm/s (0.79"/s) | |
| Feed speed range of table | : 0.005 - 3000 mm/s (0.00 - 0.12"/s) | |
| Cutting Table | Width | : 196 mm / 7.72" |
| Depth | : 184 mm / 7.24" | |
| T-slots | : 8 mm / 0.31" |
