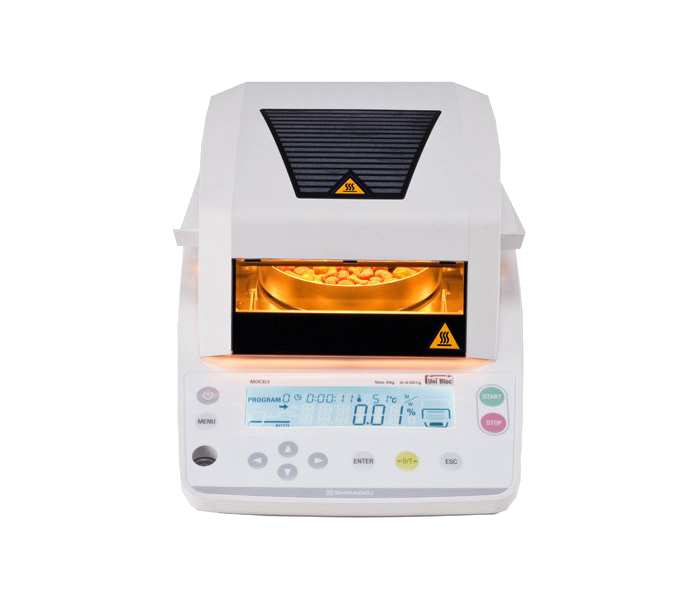

Long-life and high power halogen heater provides quick and accurate measurement. The temperature can be changed from 50 degrees to 200 degree Celsius. You can check sample status from window while measurement.
Large pan size: 95mm dia
MOC63u has large pwn. (95mm diameter) It can provide quick and accurate measurement to spread sample in thin layer on the pan.
Data Management and Easy Operation
Built-in USB port
The measure results can be transferred by USB cable. If connect with PC by USB, needs USB driver.
Please download from here.
Send balance data to Excel or other Windows applications without installing additional data communication software. By combining standard Auto print functions with typical spreadsheet functions, even difficult applications can be easily automated.
You can create graphs easily with WindowsDirect and Excel. If you need templates, please download from here. Connection to Windows Vista and Windows7.
Easy operation using a simple keypad
Features easy-to-operate software and keypad layout. In addition, an automatic starting mode saves measurement time, increasing your work efficiency. Operation simply requires ‘putting material on the pan and shutting the cover’. Internal memory can save 10 measurement conditions and 100 results. Various measurement modes provide extra support.
Various Measurement Modes
Automatic ending mode
Automatically ends measurement when moisture loss over the previous 30 seconds becomes smaller than specified percentage.
Timed ending mode
Automatically ends measurement when the specified amount of time has elapsed.
Alternative drying modes:
Rapid drying mode
First dries with the highest temperature for the specified period, then shifts to the specified temperature, shortening measurement time.
Slow drying mode
Allows step-by-step change in drying conditions. This feature is useful when measuring samples that contain a large amount of water.
Automatic starting mode
Starts measurement immediately after closing the lid. It saves time in repeat measurements.
